Display Signal Circuit between Multi-display and Television Camera Assembly: Procedure

1. Check the navigation system.
   RESULT



   Result	Proceed to
   Navigation system (for DVD)	A
   Navigation system (for HDD)	B

B → See step   5

A: Go to next step

1. Disconnect the L60 multi-display connector.
2. Disconnect the S35 television camera connector.

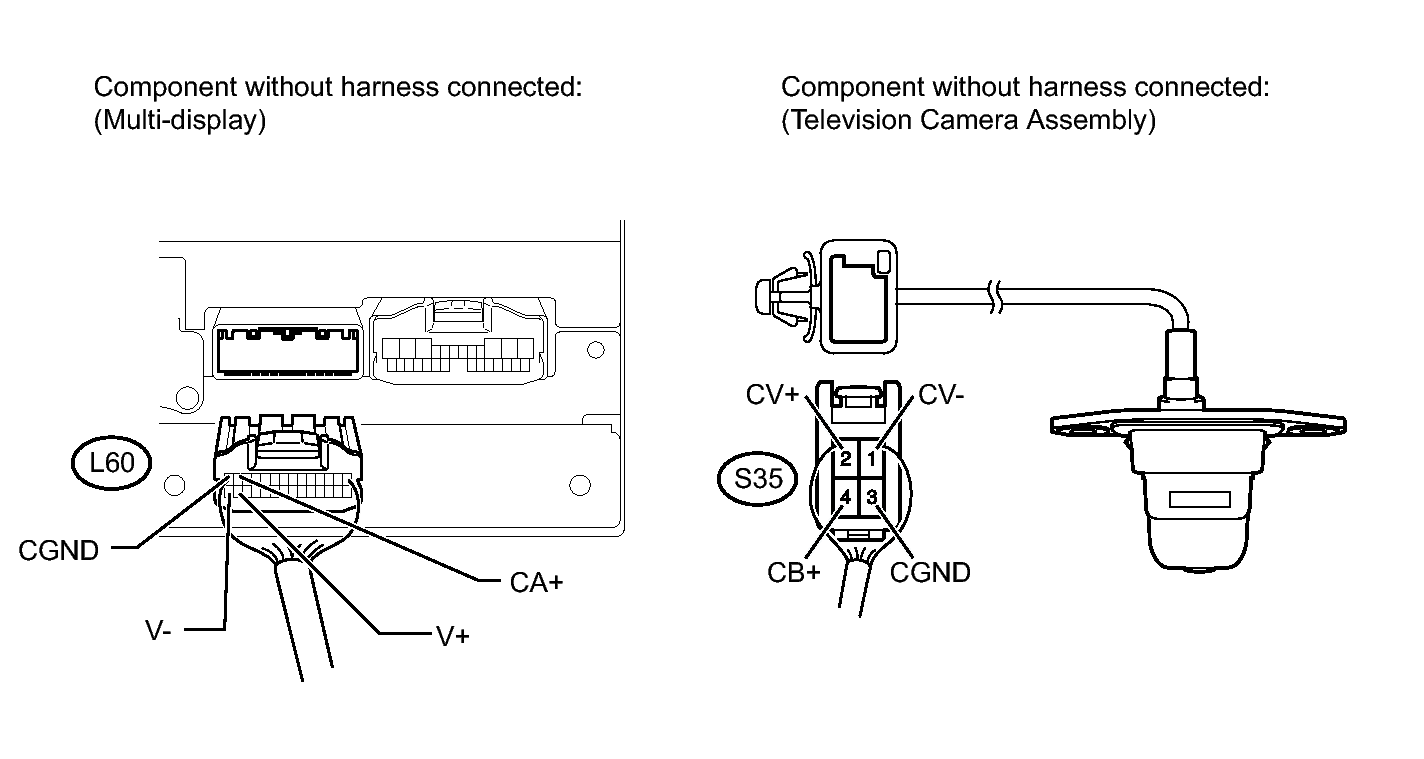

   Fig 1: Identifying L60 Multi-Display Connector And S35 Television Camera Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   S35-4 (CB+) - L60-13 (CA+)	Always	Below 1 Ω
   S35-3 (CGND) - L60-14 (CGND)	Always	Below 1 Ω
   S35-2 (CV+) - L60-27 (V+)	Always	Below 1 Ω
   S35-1 (CV-) - L60-28 (V-)	Always	Below 1 Ω
   S35-4 (CB+) - Body ground	Always	10 kΩ or higher
   S35-3 (CGND) - Body ground	Always	10 kΩ or higher
   S35-2 (CV+) - Body ground	Always	10 kΩ or higher
   S35-1 (CV-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the S35 television camera connector.

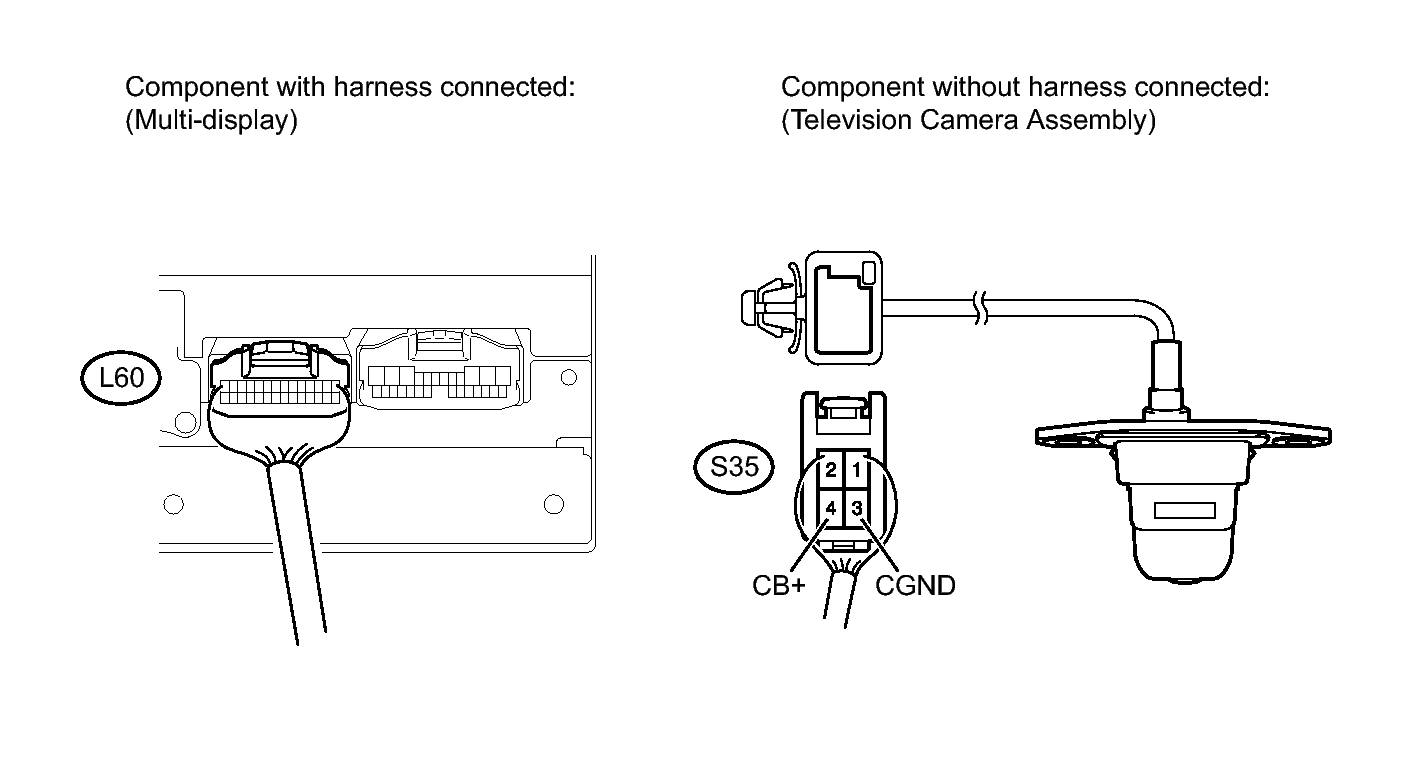

   Fig 2: Identifying L60 Multi-Display And S35 Television Camera Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   Tester Connection	Condition	Specified Condition
   S35-4 (CB+) - S35-3 (CGND)	Power switch ON (IG), shift lever R position	5.8 to 6.5 V

NG → See step   8

OK: Go to next step

1. Reconnect the S35 television camera connector.

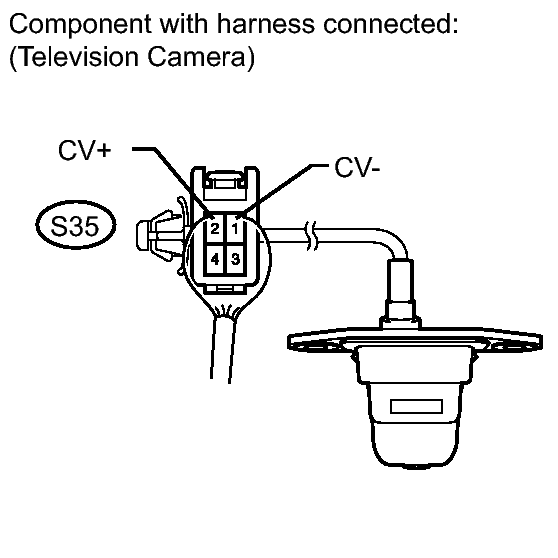

   Fig 3: Identifying S35 Television Camera Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using an oscilloscope, check waveform 1.

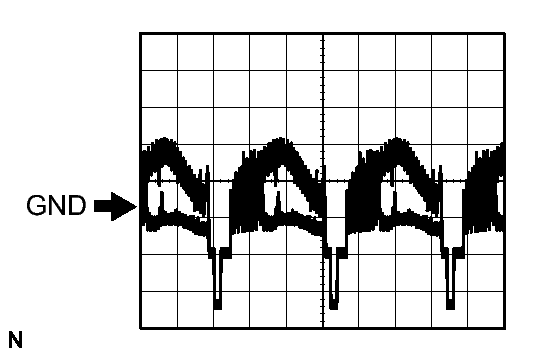

   Fig 4: Waveform Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   MEASUREMENT CONDITION



   Item	Content
   Tester Connection	S35-2 (CV+) - S35-1 (CV-)
   Tool Setting	0.2 V/DIV., 0.2 μs/DIV.
   Condition	Power switch ON (IG), Shift lever R position

   OK

   Pulse generation

NG → See step   9

OK → See step   10

Fig 5: Identifying L60 Display Connector And S35 Camera Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the L60 display connector.
2. Disconnect the S35 camera connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   S35-4 (CB+) - L60-13 (CA+)	Always	Below 1 Ω
   S35-3 (CGND) - L60-14 (CGND)	Always	Below 1 Ω
   S35-2 (CV+) - L60-27 (V+)	Always	Below 1 Ω
   S35-1 (CV-) - L60-28 (V-)	Always	Below 1 Ω
   S35-4 (CB+) - Body ground	Always	10 kΩ or higher
   S35-3 (CGND) - Body ground	Always	10 kΩ or higher
   S35-2 (CV+) - Body ground	Always	10 kΩ or higher
   S35-1 (CV-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the voltage according to the value(s) in the table below.

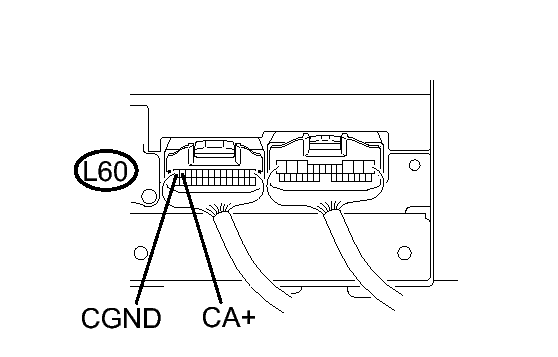

   Fig 6: Identifying Display And Navigation Assembly Connector Terminal L60

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard voltage

   Tester Connection	Condition	Specified Condition
   L60-13 (CA+) - L60-14 (CGND)	Power switch ON (IG), shift lever in R position	5.5 to 7.05 V

NG → See step   11

OK: Go to next step

1. Reconnect the S35 television camera connector.
   Fig 7: Identifying S35 Television Camera Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using an oscilloscope, check waveform 1.
   Fig 8: Waveform Graph

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   MEASUREMENT CONDITION



   Item	Content
   Tester Connection	S35-2 (CV+) - S35-1 (CV-)
   Tool Setting	0.2 V/DIV., 0.2 μs/DIV.
   Condition	Power switch ON (IG), Shift lever R position

   OK

   Pulse generation

NG → See step   9

OK → See step   10
