Display Signal Circuit between Multi-display and Television Camera Assembly: Wiring Diagram

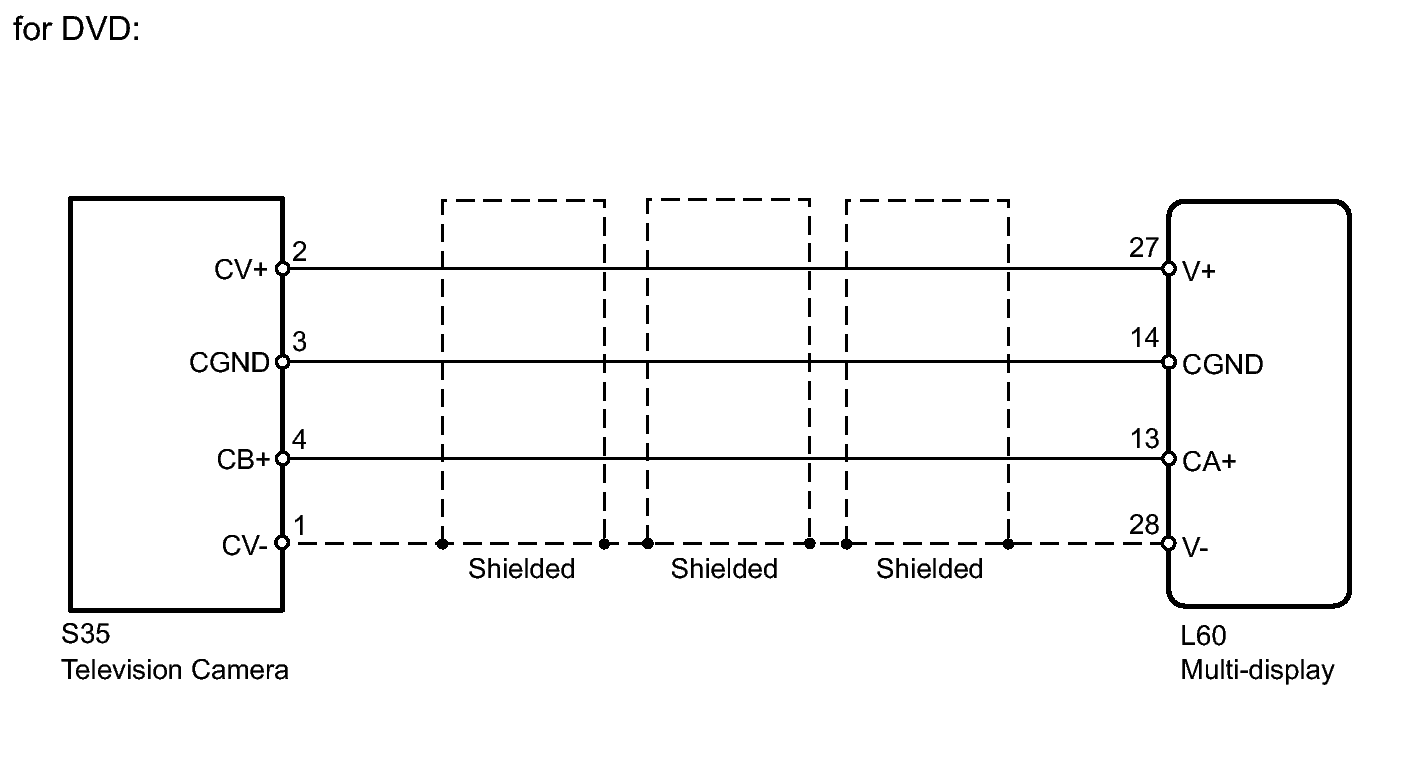

Fig 1: Multi-Display And Television Camera Assembly - Wiring Diagram (For DVD)
GTY151611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

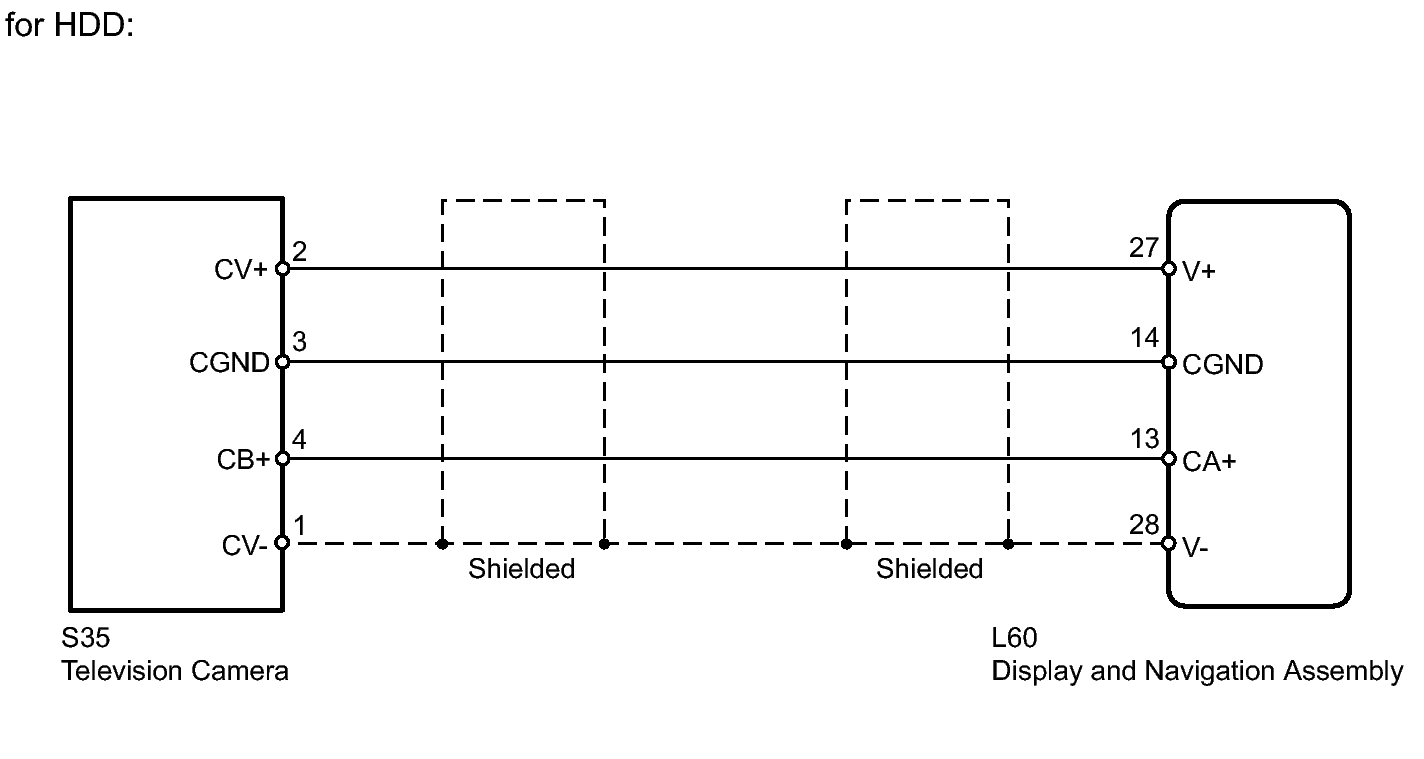

Fig 2: Multi-Display And Television Camera Assembly - Wiring Diagram (For HDD)
GTY142804Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
