System Diagram

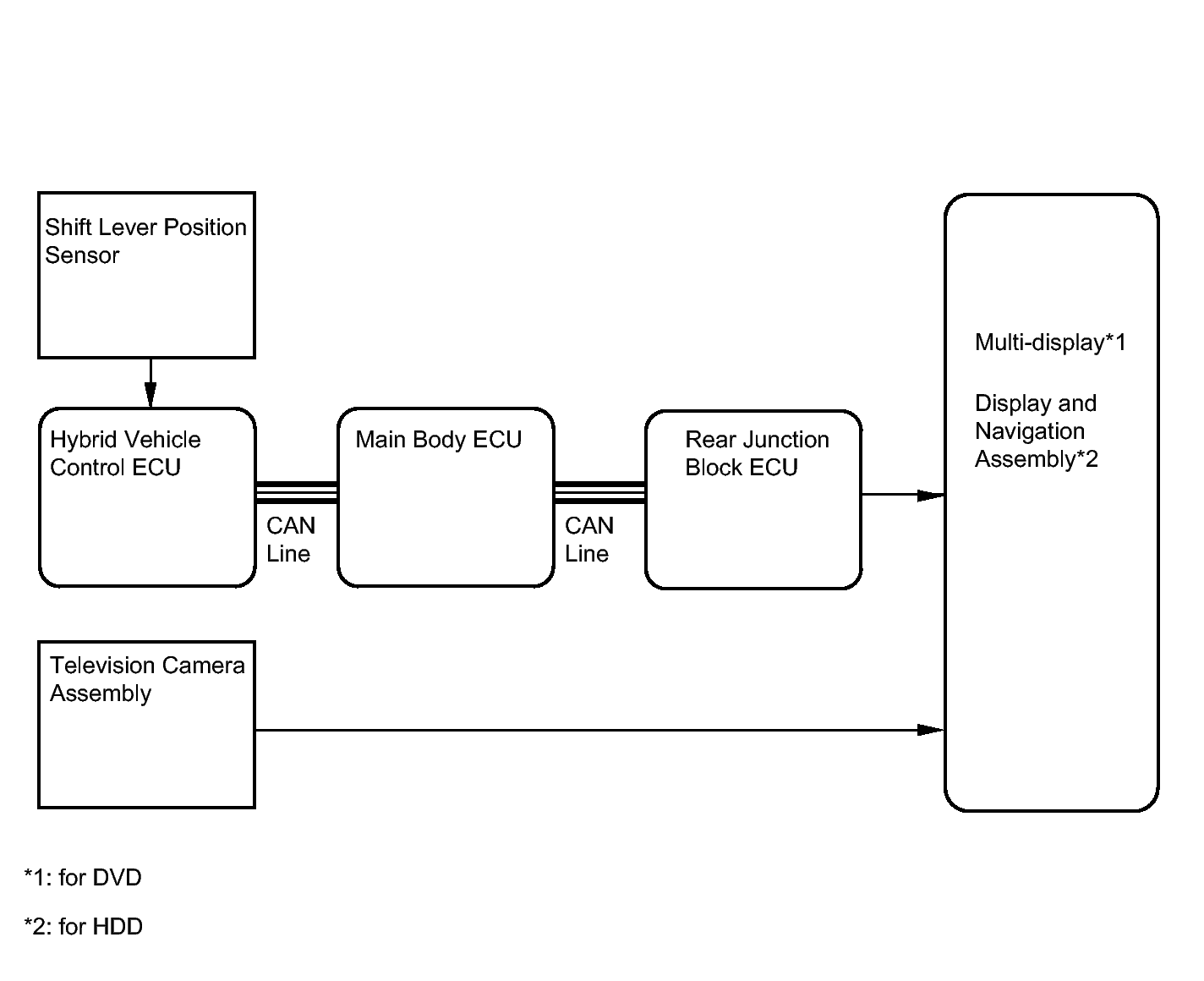

Fig 1: Rear View Monitor - System Diagram
GTY139887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Hybrid vehicle control ECU Rear junction block ECU Shift position switch signal CAN
