Power Window Control System (Diagnostic Codes & Symptom Tests)
>>
Power Window Control System
>>
Rear Power Window LH Auto Up / Down Function does not Operate with Rear Power Window Switch LH
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Rear Power Window LH Auto Up / Down Function does not Operate with Rear Power Window Switch LH: Wiring Diagram

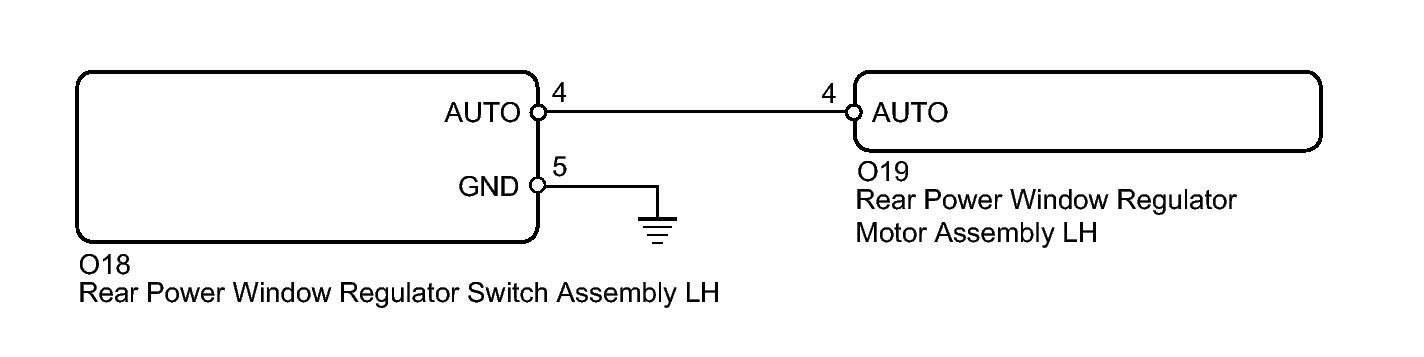

Fig 1: Rear Power Window LH Auto Up / Down Function Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
