Rear Power Window RH does not Operate with Rear Power Window Switch RH: Procedure

1. Check for LIN communication system DTCs related to the power window control system.
   RESULT:



   Result	Proceed to
   DTC is not output	A
   DTC is output	B

B → See step   8

A: Go to next step

1. Check if DTC B2312 is output.
   RESULT:



   Result	Proceed to
   B2312 is not output	A
   B2312 is output	B

B → See step   9

A: Go to next step

1. Use the Data List to check if the power window regulator motor is functioning properly.
   RR-DOOR MOTOR:



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RR Door P/W Up SW	Rear power window RH manual UP switch signal / ON or OFF	ON: Rear power window RH manual UP switch operated OFF: Rear power window RH switch not operated	-
   RR Door P/W Down SW	Rear power window RH manual DOWN switch signal / ON or OFF	ON: Rear power window RH manual DOWN switch operated OFF: Rear power window RH switch not operated	-

   OK

   Tester display changes normally when rear power window switch RH is operated.

NG → See step   4

OK → See step   11

1. Disconnect the O2 ECU connector.

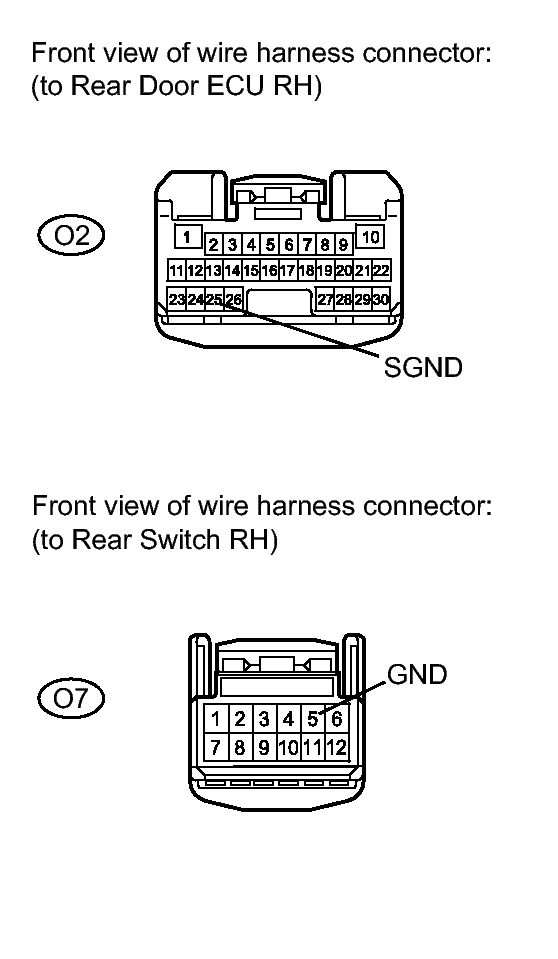

   Fig 1: Checking Harness And Connector (Rear Door ECU RH - Rear Switch RH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the O7 switch connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O2-25 (SGND) - O7-5 (GND)	Always	Below 1 Ω
   O2-25 (SGND) or O7-5 (GND) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the O3 ECU connector.

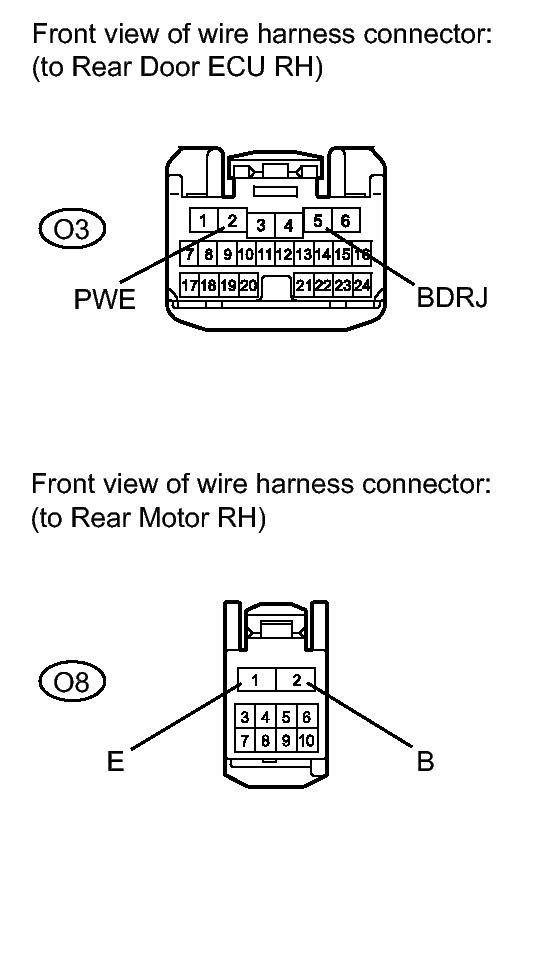

   Fig 2: Checking Harness And Connector (Rear Door ECU RH - Rear Motor RH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the O8 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O3-5 (BDRJ) - O8-2 (B)	Always	Below 1 Ω
   O3-2 (PWE) - O8-1 (E)	Always	Below 1 Ω
   O3-5 (BDRJ) or O8-2 (B) - Body ground	Always	10 kΩ or higher
   O3-2 (PWE) or O8-1 (E) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Disconnect the O7 switch connector.

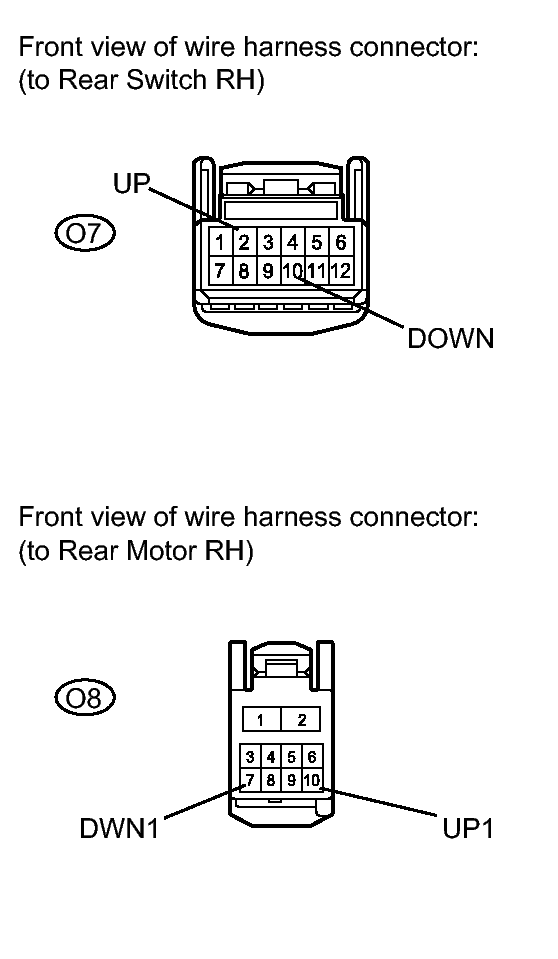

   Fig 3: Checking Harness And Connector (Rear Switch RH - Rear Motor RH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the O8 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Condition	Specified Condition
   O7-2 (UP) - O8-10 (UP1)	Always	Below 1 Ω
   O7-10 (DOWN) - O8-7 (DWN1)	Always	Below 1 Ω
   O7-2 (UP) or O8-10 (UP1) - Body ground	Always	10 kΩ or higher
   O7-10 (DOWN) or O8-7 (DWN1) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

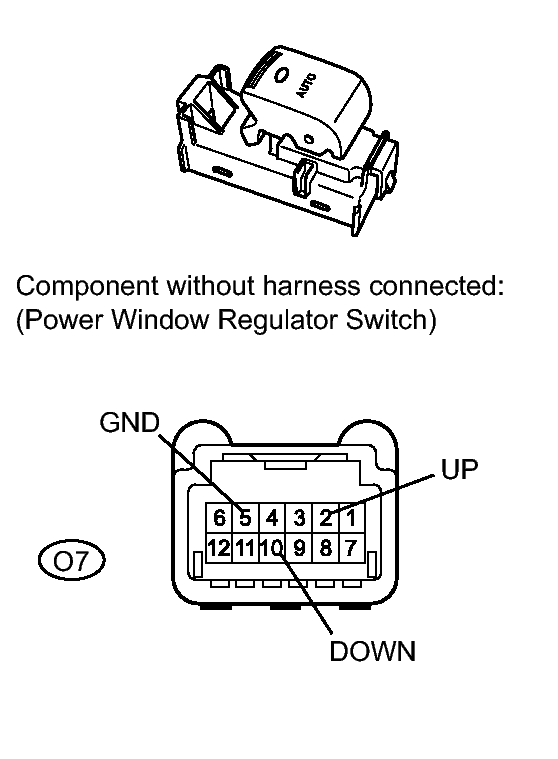

Fig 4: Identifying O9 Rear Power Window Regulator Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the switch. Refer to REMOVAL .
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   Tester Connection	Switch Condition	Specified Condition
   O7-2 (UP) - O7-5 (GND)	Manual UP operation	Below 1 Ω
   O7-10 (DOWN) - O7-5 (GND)	Manual DOWN operation	Below 1 Ω

NG → See step   10

OK → See step   11
