Power Outlet (115V): Notes

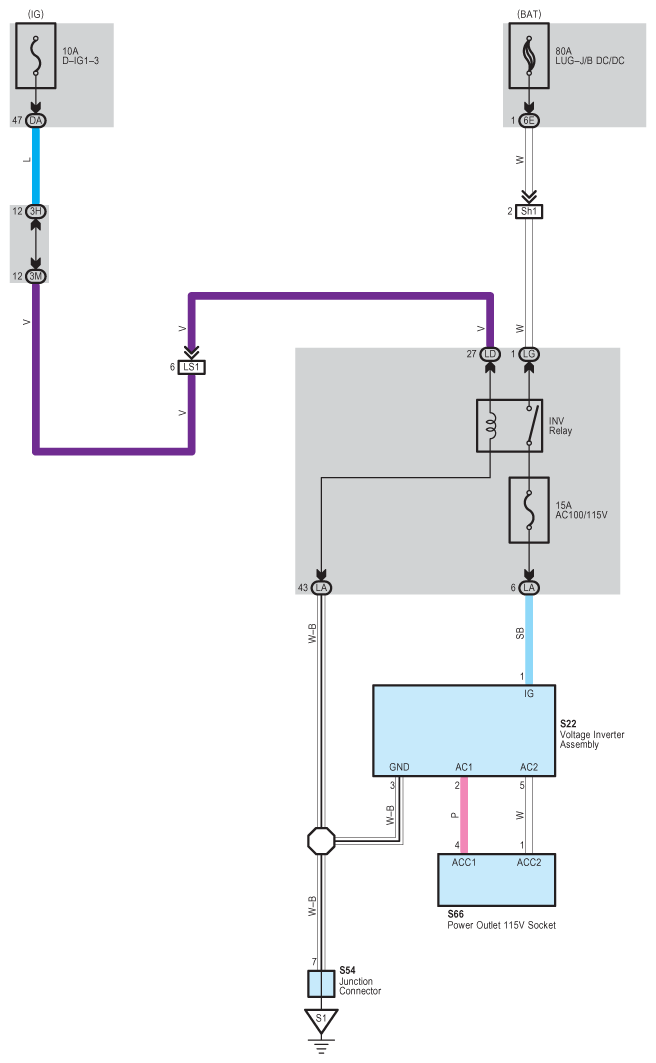

Fig 1: Power Outlet (115V) - Circuit Diagram

G07607250

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
