Fusible Link Block Assembly No. 2

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

Luggage Room Left  (See Body )

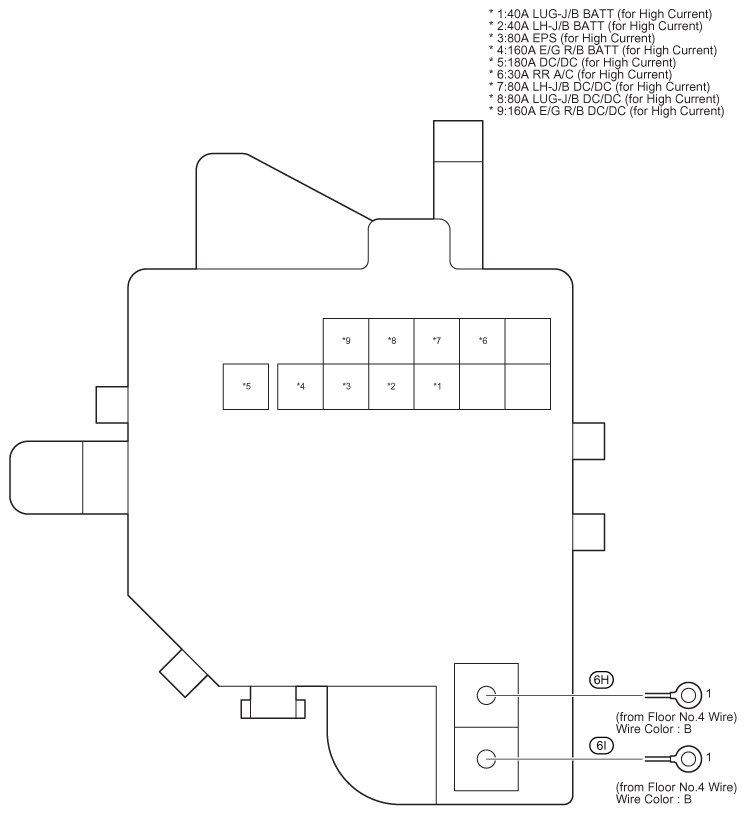

Fig 1: Fusible Link Block Assembly No. 2 Fuse Identification (1 Of 2)
G07592636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fusible Link Block Assembly No. 2 Fuse Identification Legend

Fuse System
30A RR A/C Air Conditioning
50A LUG-J/B ALT Power Outlet (115V)
80A EPS EPS
Hybrid System and Shift Control System
80A LH-J/B DC/DC Illumination
Smart Access System with Push-Button Start
80A LUG-J/B DC/DC Hybrid System and Shift Control System
180A DC/DC Hybrid System and Shift Control System

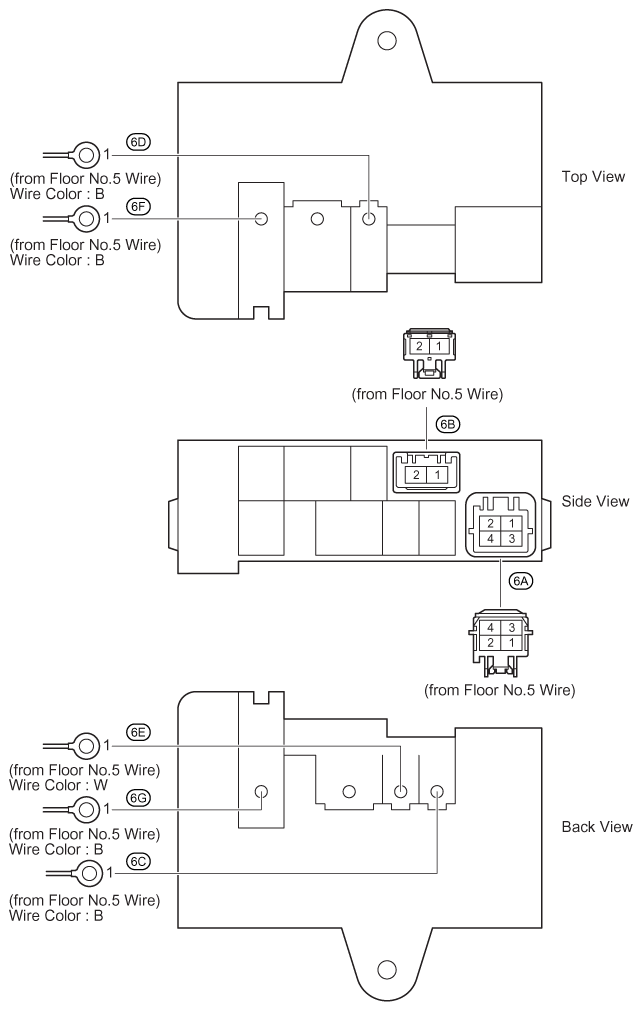

Fig 2: Fusible Link Block Assembly No. 2 Connector Locations (2 Of 2)
G07592637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
