Cruise Control Main Switch: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

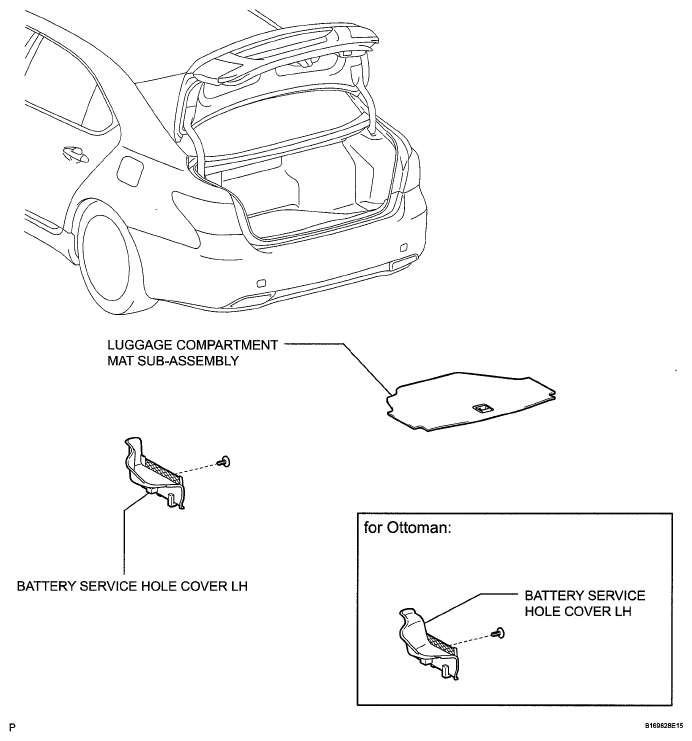

Fig 1: Identifying Luggage Compartment Trim
G05784563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

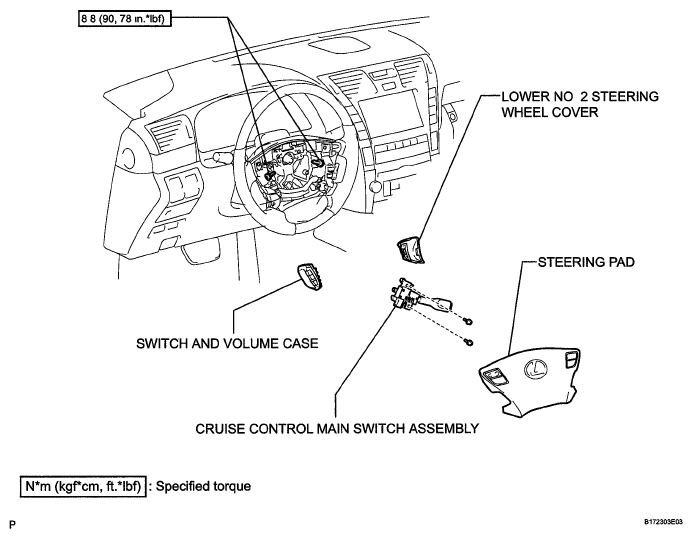

Fig 2: Identifying Cruise Control Main Switch Components
G05776049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
