Power Source Mode does not Change to ON (READY): Wiring Diagram
WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

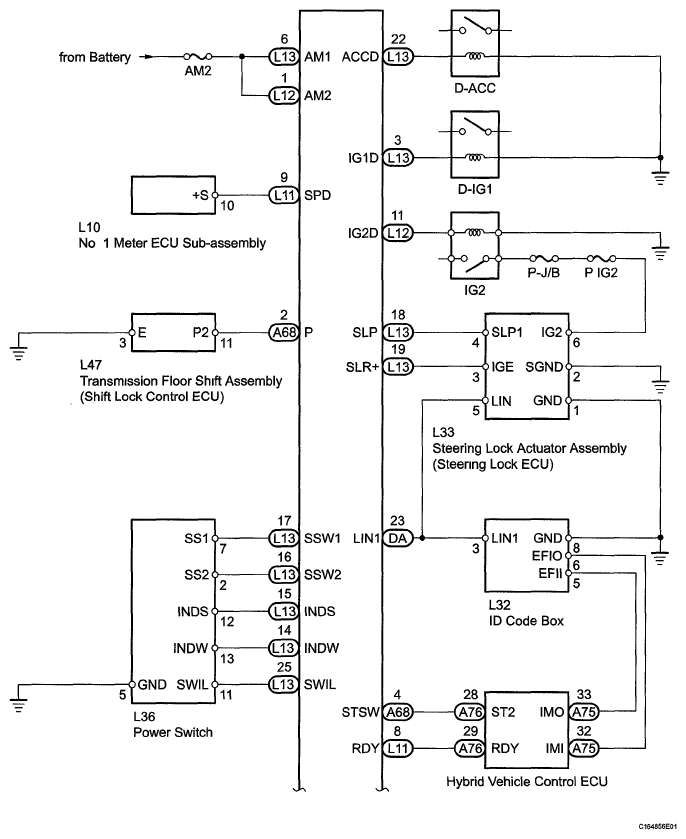

Fig 1: Power Source Mode - Wiring Diagram (1 Of 2)
