Roof Headlining: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Roof Headlining Components (1 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

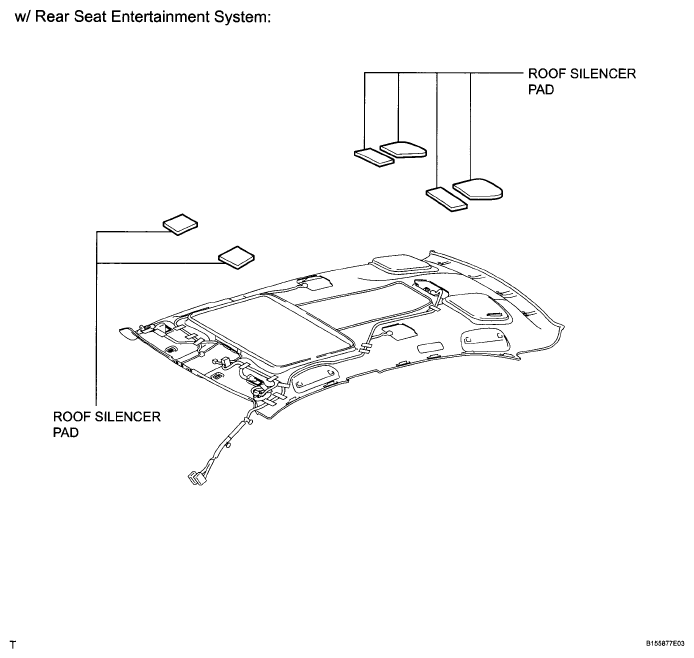

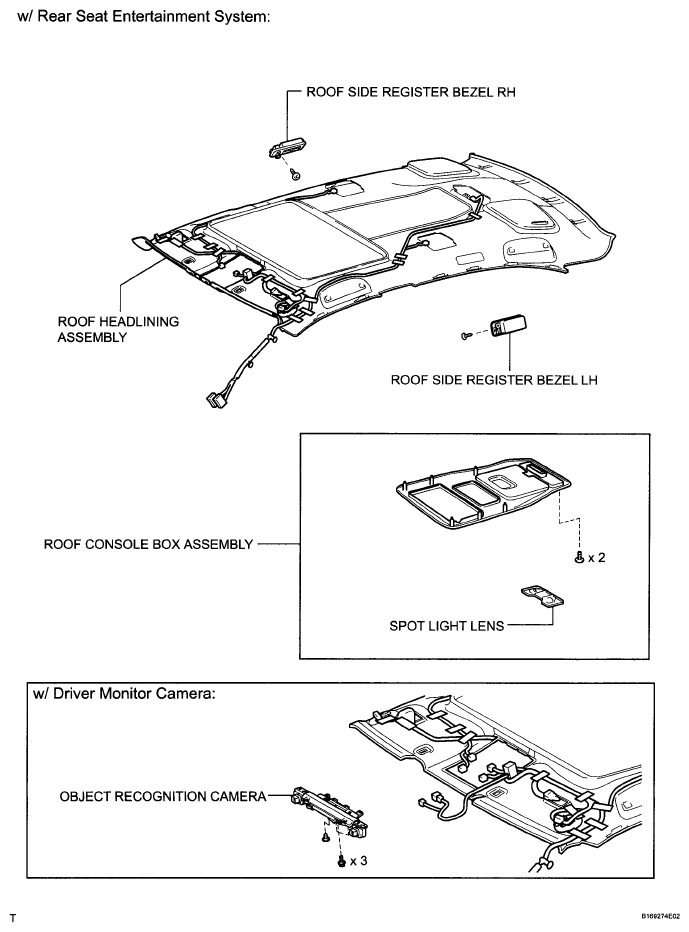

Fig 2: Identifying Roof Headlining Components (2 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

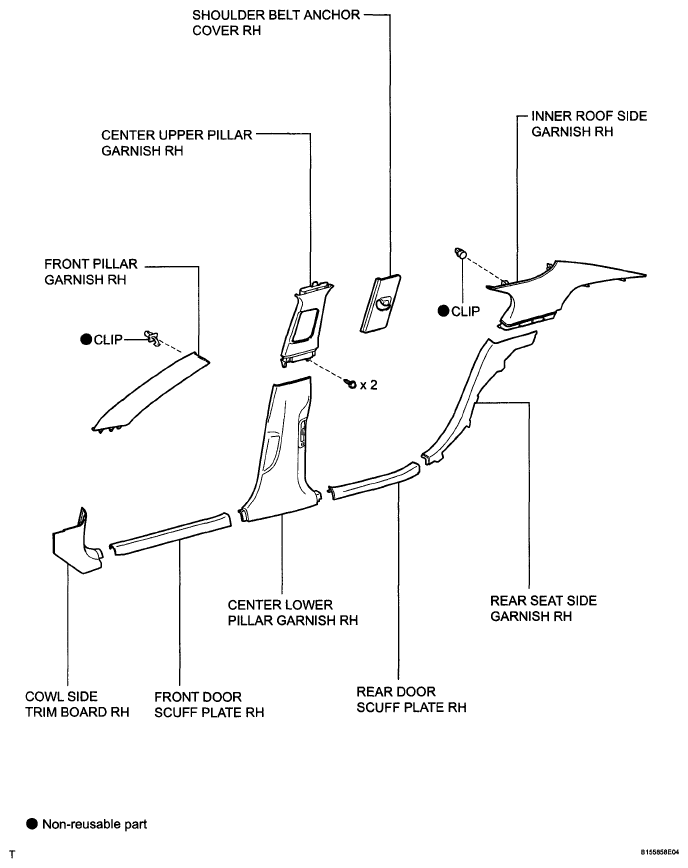

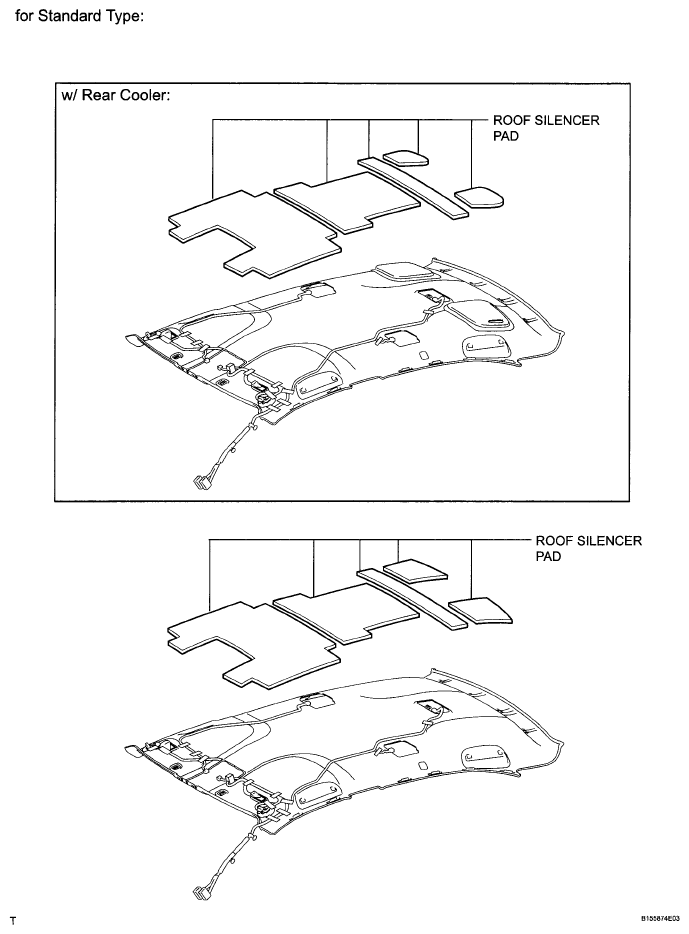

Fig 3: Identifying Roof Headlining Components (3 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

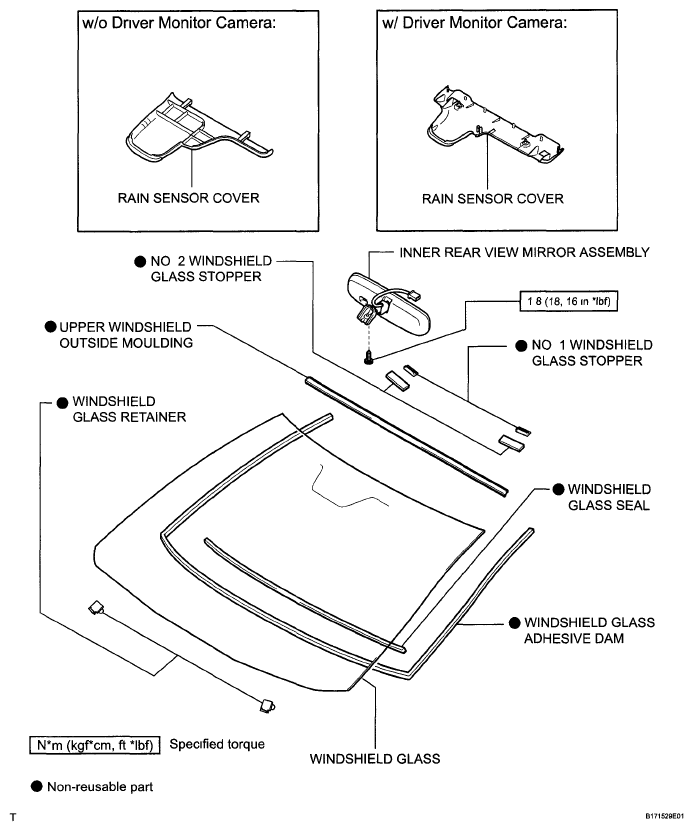

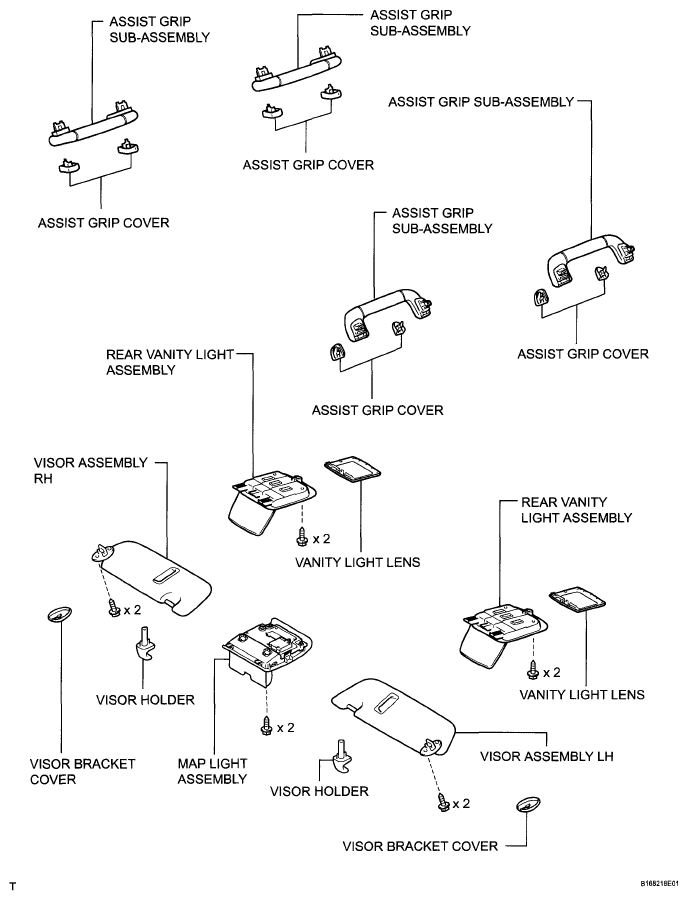

Fig 4: Identifying Roof Headlining Components (4 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

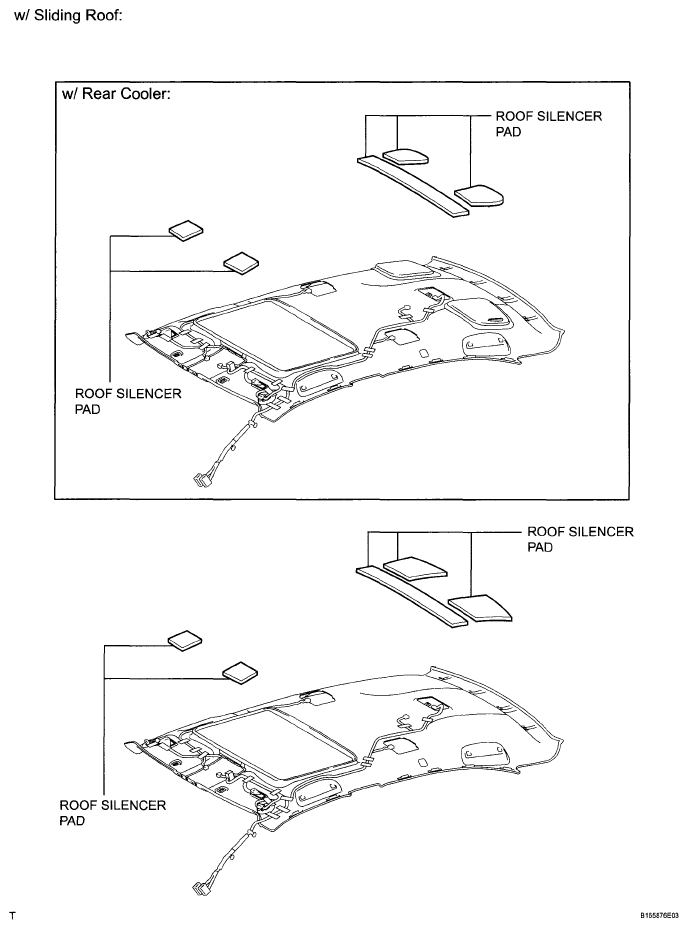

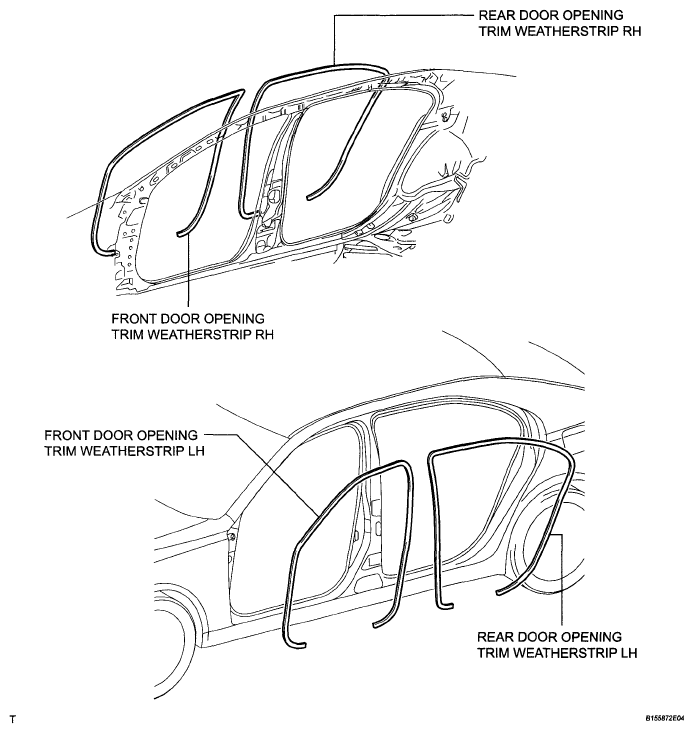

Fig 5: Roof Headlining Replacement Components With Torque Specifications (5 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

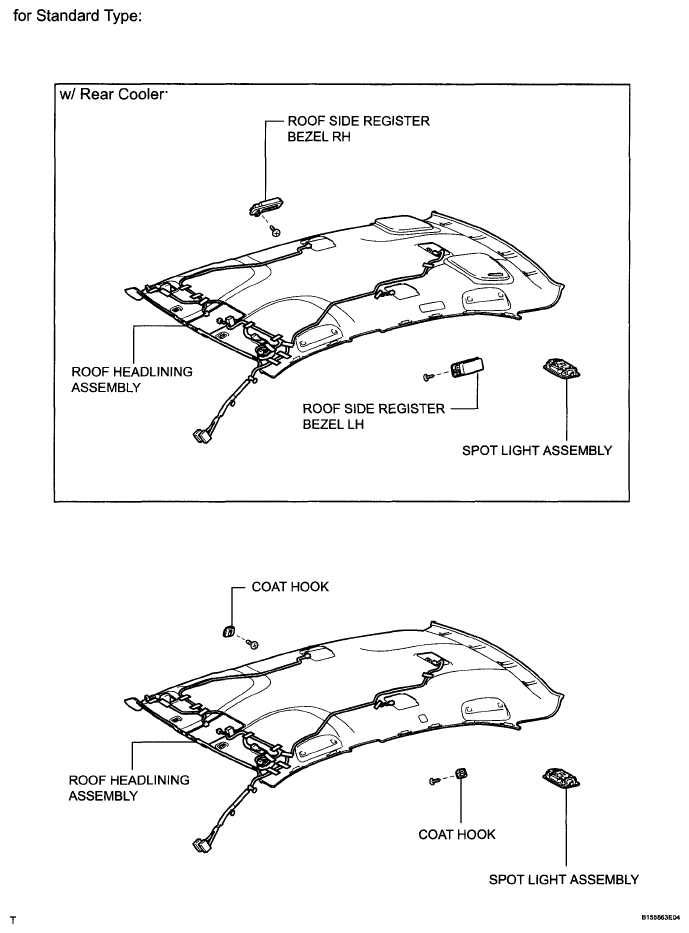

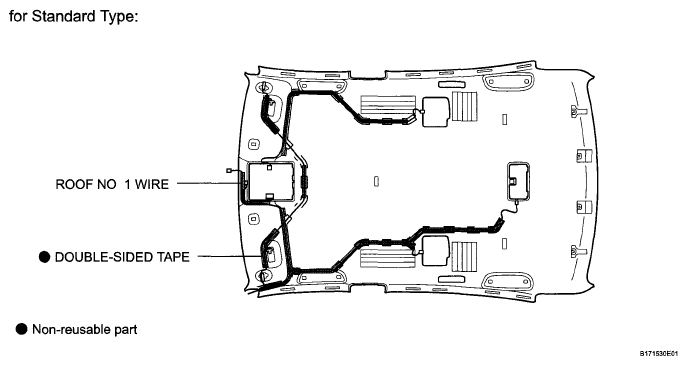

Fig 6: Identifying Roof Headlining Components (6 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

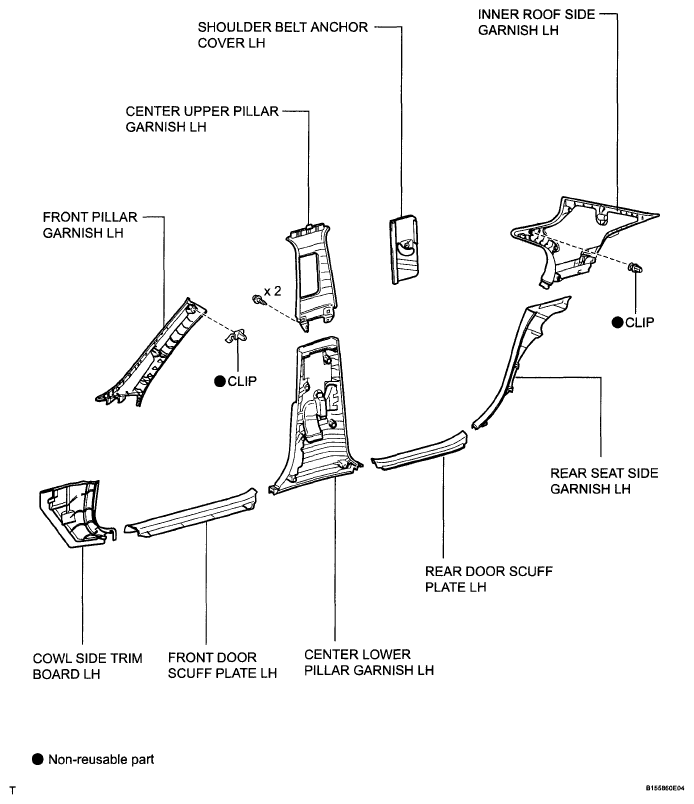

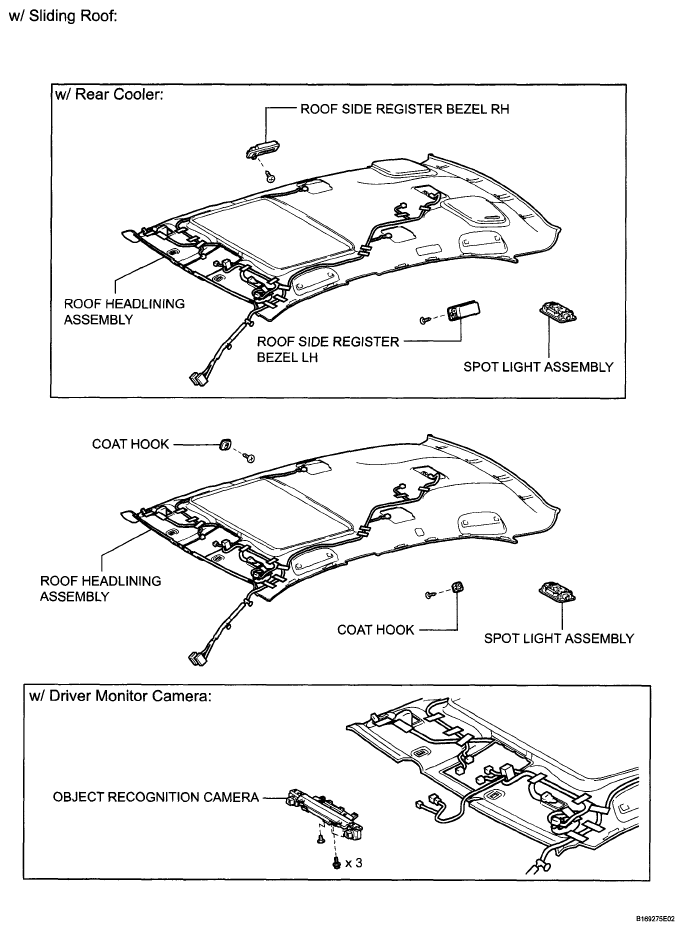

Fig 7: Roof Headlining Replacement Components With Torque Specifications (7 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

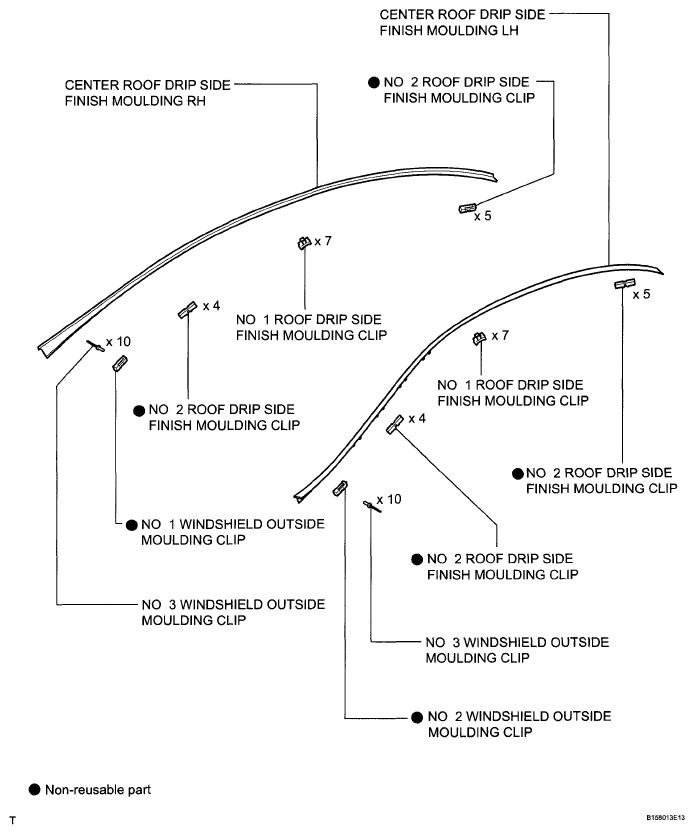

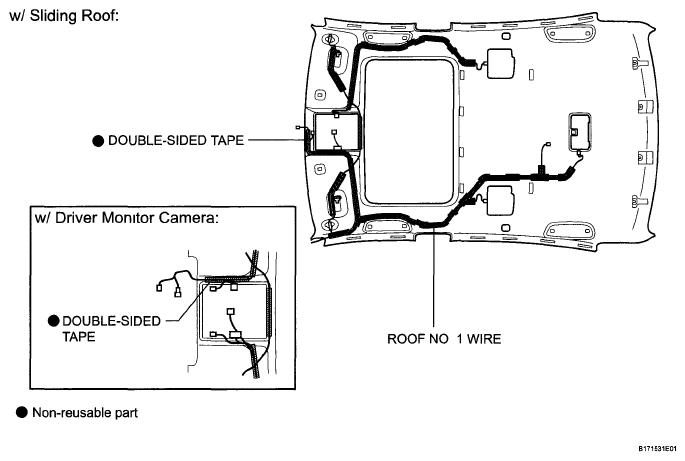

Fig 8: Identifying Roof Headlining Components (8 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Roof Headlining Components (9 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Identifying Roof Headlining Components (10 Of 16)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Identifying Roof Headlining Components (11 Of 16)

Fig 12: Identifying Roof Headlining Components (12 Of 16)

Fig 13: Identifying Roof Headlining Components (13 Of 16)

Fig 14: Identifying Roof Headlining Components (14 Of 16)

Fig 15: Identifying Roof Headlining Components (15 Of 16)

Fig 16: Identifying Roof Headlining Components (16 Of 16)
