All Door Entry Lock/Unlock Functions and Wireless Functions do not Operate: Wiring Diagram
WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

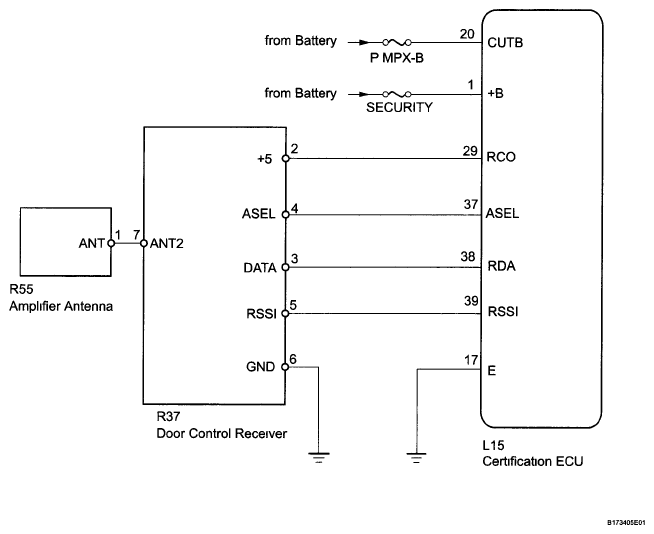

Fig 1: Door Control Receiver And Certification ECU - Wiring Diagram
