Key Luggage Compartment Lock-in Prevention Function does not Operate: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

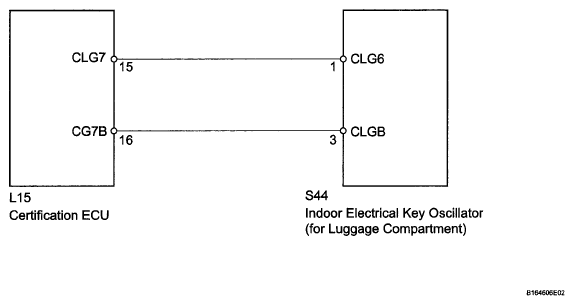

Fig 1: Certification ECU And Indoor Electrical Key Oscillator - Wiring Diagram
G05783241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
