System Description

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If using a pacemaker, be sure to read the manual of the pacemaker before using the key, as the radio waves of the key may affect the pacemaker.
  1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START DESCRIPTION
    1. In addition to conventional mechanical key and wireless door lock control functions, the smart access system with push-button start enables door locking/unlocking, steering lock releasing, hybrid control system starting and luggage compartment door opening without operating the key The only requirement is that the key is in the user's possession.
      • This system is controlled by the certification ECU. When the certification ECU detects the presence of the key in one of the detection areas, it identifies and checks the ID code, and outputs operation signals to the related ECU in accordance with their functions
      • The detection areas are formed by 7 oscillators and 1 antenna (4 door oscillators, 1 luggage compartment antenna, 1 luggage compartment oscillator, and 2 indoor oscillators)
  2. COMMUNICATION FREQUENCY BETWEEN KEY AND VEHICLE
    SPECIFICATION CHART

    Specification Key Transmission Frequency Vehicle Transmission Frequency
    for North America 314.35 MHz 134.2 KHz
    for Korea and all USA territories and possessions 312.15 MHz
  3. DETECTION AREA

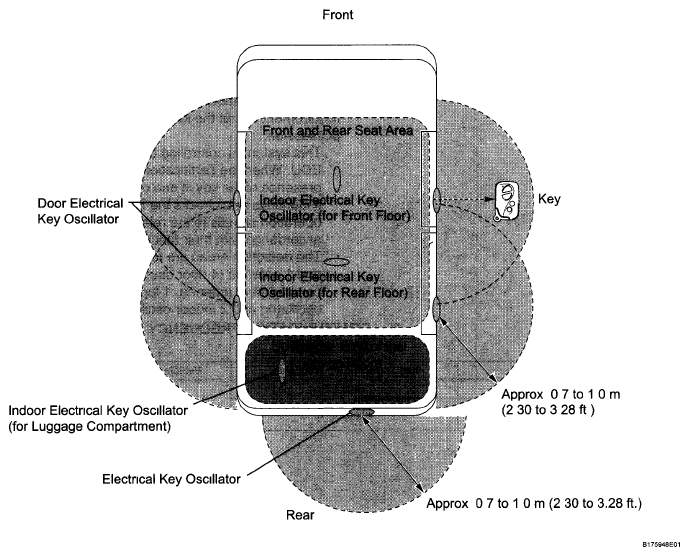

    Fig 1: Identifying Detection Area
    G05783102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Precautions for the entire system.
      • Be sure to carry the key during inspection of the smart access system with push-button start.
      • As weak radio waves are used to detect the key, the key detection area may decrease, or the key may not be detected correctly in the following situations.
        1. The key battery is depleted.
        2. Any facilities that generate strong radio waves, such as a TV tower, power plant, portable media players, broadcast station or gas station, are located near the inspection site.
        3. A wireless device, such as a cellular phone, is carried with the key
        4. The key is in contact with or covered with metal.
        5. Another wireless door lock control function is operated near the vehicle
        6. The key is located near a device that generates high voltage or noise.
      • The key may be difficult to operate for a reason relating to the vehicle body shape
      • The key may not be detected correctly if it is around the vehicle's windows, the door handle or center of the bumper, even when it is in the detection area outside the vehicle.
      • The key may not be detected correctly if it is on the instrument panel, rear package tray or floor, or in the glove box, even when it is in the detection area inside the vehicle
      • The hybrid control system cannot be started even when the key is in the detection area inside the luggage compartment.
      • The key may not operate if the key is not held properly
      • The smart access system with push-button start does not operate in the following conditions.
        1. The smart access system with push-button start is canceled
        2. The key battery is completely depleted (the indicator does not blink when pushing any of the buttons on the key).
  4. FUNCTION OF MAIN COMPONENTS
    COMPONENT FUNCTION CHART

    Components Function
    Key Consists of mechanical key, transmitter for wireless door lock control and transceiver for smart access system with push-button start
    Certification ECU
    • Controls smart access system with push-button start in accordance with signals from each oscillator, various switches, ECUs and key
    • Judges and certifies ID code from entry door control receiver
    • Transmits engine immobiliser unset signal to ID code box
    • Transmits steering unlock signals to steering lock ECU
    Main Body ECU
    • Controls push-button start function in accordance with signals from various switches, ECUs and combination meter
    • Transmits key verification request signal to certification ECU in accordance with power switch signal, and turns relays ON and OFF
    • Receives request signal from certification ECU and sends request signal to door ECUs to lock or unlock doors
    • Transmits each door condition to certification ECU
    ID Code Box Receives steering unlock or engine immobiliser unset signals from certification ECU, certifies them, and transmits unset signals to steering lock ECU or ECM
    Outside Door Handle (for driver, front passenger, rear doors) (antenna) Transmits request signals
    Outside Door Handle (for driver, front passenger, rear doors) (touch sensor)
    • Detects when person touches inside of outside handle
    • Signal transmits from door ECU to certification ECU
    Outside Door Handle (for driver, front passenger, rear doors) (lock switch) Transmits door lock request signals from door ECU to certification ECU
    Door Electrical Key Oscillator (for driver, front passenger, rear doors) Receives request signal from certification ECU, and forms detection area around each door
    Indoor Electrical Key Oscillator (for front, rear) Receives request signal from certification ECU, and forms detection area in vehicle interior
    Indoor Electrical Key Oscillator (for luggage room) Receives request signal from certification ECU, and forms detection area in luggage room
    Electrical Key Antenna (for luggage room) Receives request signal from certification ECU, and forms detection area around luggage compartment door
    Door Control Receiver
    • Receives ID code from key in detection area and transmits it to certification ECU
    • Receives ID code from key in luggage room and transmits it to certification ECU
    Amplifier Antenna Receives ID code from key and transmits it to entry door control receiver
    Outside Rear View Mirror
    • Foot Light
    		 When key enters exterior detection area, foot light is illuminated in accordance with request signal of certification ECU
    Luggage Door Opener Switch Transmits luggage compartment door open request signal to certification ECU
    Stop Light Switch Outputs state of brake pedal to main body ECU
    Wireless Door Lock Buzzer
    Combination Meter
    • Multi-information Display
    • Buzzer
    		 When certification ECU detects human errors such as those below, it warns driver by sounding wireless door lock buzzer, displays information and sounds buzzer in accordance with request signal from ECU
    Example
    • Key is taken outside vehicle
    • Driver leaves vehicle while hybrid control system is still running
    • Driver leaves vehicle while shift lever is in position other than P
  5. CONSTRUCTION AND OPERATION
    1. Key.

      A total of 7 keys can be registered

      1. Electrical key transmitter

        The electrical key transmitter consists of a mechanical key, a transmitter function for the wireless door lock control and a transceiver for the smart access system with push-button start.

        • The transceiver function for the smart access system with push-button start receives the signals from the oscillators and sends the ID code to the door control receiver.
        • The transmitter function for the wireless door lock control has a LOCK switch, UNLOCK switch, LUGGAGE COMPARTMENT switch and PANIC switch.
        • This mechanical key works for the driver door, luggage compartment door and glove box, but cannot start the hybrid control system.

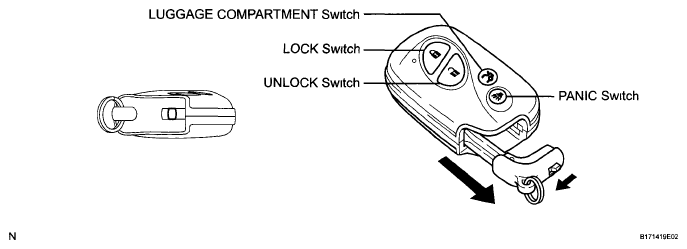

          Fig 2: Identifying Lock Switch, Unlock Switch, Luggage Compartment Switch And Panic Switch
          G05783103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Card type key

        The card type key consists of a mechanical key, a transceiver for the smart access system with push-button start.

        • The transceiver function for the smart access system with push-button start receives the signals from the oscillators and sends the ID code to the door control receiver.
        • This mechanical key works for the driver door, luggage compartment door and glove box, but cannot start the hybrid control system.
          Fig 3: Identifying Card Type Key
          G05783104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Oscillator (each door oscillator, front and rear indoor oscillator, luggage compartment oscillator, luggage compartment antenna)

      Each oscillator transmits the request signal received from the certification ECU, and forms a key detection area to detect the presence of a key The detection area formed by each door oscillator and luggage compartment outer antenna is approximately 0.7 to 1.0 m (2.30 to 3.28 ft) from the outside handle of each door or the center of the rear bumper

      • The detection area of each door oscillator is formed by transmitting a request signal every 0.25 seconds while the power switch is off and each door is locked In this way, it detects the proximity of a key During entry lock, the detection area is formed with the lock switch ON
      • The detection area of the luggage compartment antenna is formed when the luggage door opener switch is ON
      • The detection area of the indoor oscillator (for front and rear) is formed when the driver door is opened or closed, during start ignition, when a warning is activated, or when the lock switch is ON
      • The detection area of the luggage compartment oscillator is formed when the luggage compartment door is closed or the luggage compartment door opener switch is pressed
  6. ENTRY FUNCTION OPERATION
    1. The smart access system with push-button start has the following functions
      FUNCTION OPERATION CHART

      Function Outline
      Mechanical Key Operation is same as conventional mechanical key
      Wireless Door Lock Control This function remotely locks and unlocks all doors or luggage compartment Operation is same as wireless door lock control system However, receiver in certification ECU uses entry door control receiver to control locking and unlocking
      Entry Illumination When person carrying key enters detection area, door will enter unlock standby mode and map light and door mirror foot light will illuminate
      Entry Unlock When key is located in detection area of door oscillator, door will unlock by touching inside of outside door handle
      Entry Unlock Mode Switching (see CUSTOMIZE PARAMETERS  ) Changes doors that can be unlocked with entry unlock function between 4 modes
      • Driver door unlock mode
      • Doors on one side unlock mode
      • One door unlock mode
      • All door unlock mode
      Entry Lock When key is located in detection area of door oscillator and power switch is OFF, door can be locked by pressing lock switch on outside door handle
      Entry Luggage Compartment Open When key is in detection area of luggage compartment antenna, luggage compartment door opens by pressing luggage compartment door opener switch
      Memory Call This function operates driving position memory system in accordance with key ID code
      Entry Power Window Function Pressing door handle entry lock switch for approx 3 seconds or more causes all power windows and sliding roof to close while sounding wireless buzzer
      Key Lock-in Prevention
      • Prevents lock-in of key if door is locked using outside door handle while key is still inside vehicle
      • If all doors are locked and luggage compartment door is closed while key is still in luggage compartment, warning buzzer sounds If luggage compartment door opener switch is operated, luggage compartment door can be opened
      Warning When any of situations below occur, smart access system with pushbutton start causes certification ECU to sound buzzer in combination meter and wireless door lock buzzer, and display information in order to alert driver
      • Shift lever not on P (power source cut reminder) vehicle exit warning
      • Key reminder warning
      • Shift lever on P (power source cut reminder) vehicle exit warning
      • Entry door ajar warning
      • Passenger has brought key out of vehicle warning
      • Key is not within detection area warning
      • Key lock-in prevention function buzzer (for cabin)
      • Key lock-in prevention function buzzer (for luggage compartment)
      • Key battery low warning
      Battery Saving If key is constantly located within actuation area of door oscillator, system maintains periodic communication with key Therefore, if vehicle remains parked in that state for long time, key battery and vehicle battery could be drained For this reason, vehicle has controls for saving battery power
      Key Cancel (see CUSTOMIZE PARAMETERS  ) Following key functions can be canceled
      • Entry Unlock/Lock
      • Entry Ignition
      • Memory Call
      • Entry Luggage Compartment Open
      • Key Lock-in Prevention
      • Warning
  7. WIRELESS DOOR LOCK AND UNLOCK AND LUGGAGE COMPARTMENT OPEN FUNCTION

    Push the LOCK/UNLOCK/PANIC/LUGGAGE COMPARTMENT switch on the key to operate each function.

  8. ENTRY UNLOCK FUNCTION
    1. The detection area is formed by communication between a door oscillator and the certification ECU when the door is locked in order to detect the person carrying the key
    2. When the person carrying the key enters the detection area around the vehicle, the matching of the ID codes for a door oscillator and key will automatically be performed After the matching is completed, the door will enter unlock standby mode.
    3. In unlock standby mode, the antenna built into the outside handle starts sensing If the outside handle is held (the back side of the handle is touched), the door unlock operation will be performed. At this time, the hazard warning light blinks twice and the wireless door lock buzzer sounds twice
    4. If any of the doors are not opened after a door unlock operation, all doors will automatically lock after 60 seconds
  9. ENTRY LOCK FUNCTION
    1. After leaving the vehicle carrying the key, push the lock switch on the outside handle when all the doors are closed
    2. The certification ECU determines whether the key is located inside or outside of the cabin based on the information from a door oscillator and indoor oscillator. Then matching of the ID codes is performed
    3. When the matching result shows that the ID codes of the key and indoor oscillator do not match and the ID codes of the key and door oscillator match, the door lock function will operate. At this time, the hazard warning lights blink once and the wireless door lock buzzer sounds once.
    4. If the key is located inside of the cabin, the door lock function will not operate and the alarm buzzer (beep sound) will sound for 2 seconds
  10. ENTRY LUGGAGE COMPARTMENT OPEN FUNCTION

    Stand in front of the luggage compartment with the key and push the luggage door opener switch to start the matching of the ID codes for the luggage compartment antenna. If the ID codes match, luggage compartment door open operation will be performed

  11. PREVENTION OF KEY LOCK-IN FUNCTION
    1. If you attempt to lock the door through keyless operation (move the lock knob to the lock position and then close the door) with the key in the cabin, the system determines that the key is located in the cabin and unlocks the door
    2. If the luggage compartment is closed with the key in it, the alarm will sound and the luggage compartment can be opened only when all the doors are locked in order to prevent key lock-in in the vehicle
  12. ENTRY ILLUMINATION FUNCTION

    In order to improve ease of entering and exiting the vehicle at night, the map light and door mirror foot area light illuminate when the key is brought near the vehicle

    • Control Information

      Holding the key and bringing it within the vehicle exterior detection area causes the door to enter unlock standby At this time, the map light and door mirror foot light illuminate.

    • Precaution

      The entry illumination function operates when the key is outside the vehicle exterior detection area for 3 seconds or more, and is then brought within the vehicle exterior detection area If the key is not first brought outside the vehicle exterior detection area, the entry illumination function will not operate

  13. ENTRY POWER WINDOW FUNCTION (DOOR WINDOW AND SLIDING ROOF CLOSE OPERATION ONLY)
    1. After locking all the doors through the wireless lock operation or entry lock operation, pressing the door handle lock switch for 3 seconds or more operates the door window close operation of all of the windows and the sliding roof close operation
    2. If the entry power window function is operating and the door handle lock switch is released, the entry power window operation will stop
    3. The wireless buzzer sounds while the entry power window function is operating

      HINT:

      For more information about the entry power window function, refer to the power window control system (see SYSTEM DESCRIPTION )

  14. MEMORY CALL FUNCTION (for MEMORY SEAT VEHICLES ONLY)

    HINT:

    • After unlocking the driver door using the key ID and opening the driver door, the seat automatically moves to the position associated with the key ID.
    • For more information about the memory call function, refer to the front power seat control system (see SYSTEM DESCRIPTION ).
    1. Key ID registration method:
      1. With the power switch OFF and the driver door closed, press and hold the seat memory switch to be registered. (Releasing the seat memory switch will end the key ID registration mode)
      2. Press the lock or unlock switch of the key to be registered.
      3. If the key has not been registered previously, the key ID will be registered During the registration, the wireless buzzer will sound
    2. Memory call cancel method.
      1. With the power switch OFF, press and hold the SET switch. (Releasing the SET switch will end the memory call cancel mode.)
      2. Press the lock or unlock switch of the key to be canceled.
      3. If the key has been registered previously, the memory call operation of the key ID will be canceled The key ID can be reactivated by pressing the lock or unlock switch of the key again. During the memory call cancel and reactivation operation, the wireless buzzer will sound.
  15. WARNING FUNCTION
    1. General:

      When any of the situations below occur, the smart access system with push-button start responds to alert the driver

      FUNCTION OPERATION CHART

      Warning Function Operation Condition Situation
      Shift lever not on P (power source cut reminder) vehicle exit warning A
      Key reminder warning B
      Shift lever on P (power source cut reminder) vehicle exit warning C
      Entry door ajar warning D
      Passenger has brought key out of vehicle warning E
      Key is not within detection area warning F
      Key lock-in prevention function buzzer (for cabin) G
      Key lock-in prevention function buzzer (for luggage compartment) H
      Key battery low warning I
    2. Situation A:

      Shift lever not on P (power source cut reminder) vehicle exit warning

      1. With shift lever in position other than P, door is opened and vehicle exit (while holding key) is attempted
        FUNCTION OPERATION CHART

        Reason for warning Sudden vehicle start prevention, vehicle theft prevention, vehicle roll-away prevention
        Warning start condition Shift lever position is not P, power switch is ON (ACC or IG), driver side door is opened and vehicle speed is 0 km/h (0 mph)
        Warning stop condition Power switch is OFF, shift lever position is P, vehicle speed is above 0 km/h (0 mph), or driver side door is closed
        Warning description Combination meter buzzer Multi-buzzer Sounds continuously (beep)
        Combination meter display Combination meter information "Shift to P Range"
        Wireless buzzer Sounds for 3 seconds (long beep)
        Recommended user action Move shift lever to P position
      2. With shift lever in position other than P, door is opened, key is brought out of vehicle, door is closed, and movement away from vehicle is attempted
        FUNCTION OPERATION CHART

        Reason for warning Sudden vehicle start prevention, vehicle theft prevention, vehicle roll-away prevention
        Warning start condition Shift lever position is not P, power switch is ON (ACC or IG), opened driver side door is closed, vehicle speed is 0 km/ h (0 mph) and key is not in detected in vehicle interior and luggage interior
        Warning stop condition
        • Key is detected in vehicle interior and luggage interior

          Buzzer stops and "Shift to P Range" is displayed on combination meter

        • Vehicle speed is above 0 km/h (0 mph)

          Buzzer stops, "Key is not detected" - "Check key position" is displayed on combination meter

        • Power switch OFF

          All warnings are turned off
        Warning description Combination meter buzzer Multi-buzzer Sounds continuously (beep)
        Combination meter display Combination meter information Information below is displayed alternately on combination meter "Shift to P Range"
        "Key is not detected" - "Check key position"
        Wireless buzzer Sounds continuously (beep)
        Recommended user action Move shift lever to P position
    3. Situation B

      Key reminder warning

      1. Steering lock / unlock set, driver door is opened and movement away from vehicle is attempted
        FUNCTION OPERATION CHART

        Reason for warning Vehicle theft prevention, required by law
        Precondition Remote start is not operating
        Warning start condition One of following conditions is met
        1. Power switch ON (ACC) or OFF, and driver door opened
        2. Power switch OFF, steering lock / unlock set and driver door opened
        Warning stop condition One of following conditions is met
        1. Power switch is ON (IG) or driver door is closed
        2. Power switch ON (ACC) or OFF, and steering lock / unlock is set
        Warning description Combination meter buzzer Multi-buzzer Sounds intermittently (several "pon" sounds)
        Combination meter display Combination meter information None
        Wireless buzzer None
        Recommended user action If power switch is ON (ACC or IG), turn power switch OFF and close driver door
    4. Situation C.

      Shift lever on P (power source cut reminder) vehicle exit warning

      1. Pattern 1. With shift lever on P, driver door is opened, key is brought out of vehicle, driver door is closed, and movement away from vehicle is attempted
        FUNCTION OPERATION CHART

        Reason for warning Vehicle theft prevention, "hybrid control system cannot be restarted" prevention, battery depletion prevention
        Warning start condition Shift lever position is P, power switch is ON (ACC or IG), opened driver side door is closed and key is not in detected in vehicle interior and luggage interior
        Warning stop condition Power switch ON (ACC) or OFF, or key is detected in vehicle interior and luggage interior
        Warning description Combination meter buzzer Multi-buzzer Sounds once (1 "pon" sound) (when key is not detected continuously, sounds again when vehicle is first driven)
        Combination meter display Combination meter information "Key is not detected" - "Check key position"
        Wireless buzzer Sounds 3 times (short beeps)
        Recommended user action Turn power switch OFF and exit vehicle while holding key
      2. With shift lever on P and either power switch ON (ACC) or steering lock / unlock set, driver door is opened, move away from vehicle is performed, and door handle lock switch is pressed in an attempt to perform entry lock operation
        FUNCTION OPERATION CHART

        Reason for warning Vehicle theft prevention, battery depletion prevention
        Precondition Change door control lock switch from off to on
        Warning start condition Shift lever position is P, power switch is ON (ACC or IG), all doors closed and key is detected in vehicle exterior
        Warning stop condition One of following conditions is met
        1. Power switch ON (ACC) or OFF, or key is detected in vehicle exterior
        2. Key is detected in vehicle interior and luggage interior and key is not detected in vehicle exterior
        Warning description Combination meter buzzer Multi-buzzer None
        Combination meter display Combination meter information None
        Wireless buzzer Sounds for 2 seconds (long beep)
        Recommended user action Turn power switch OFF and perform entry lock operation
    5. Situation D

      Entry door ajar warning

      1. With one of vehicle's doors open, entry lock operation is attempted
        FUNCTION OPERATION CHART

        Reason for warning Vehicle theft prevention
        Precondition Power switch ON (ACC) or OFF, and one of doors open
        Warning stop condition After preconditions are met, entry lock operation is performed
        Warning stop condition Power switch is ON (ACC or IG), all doors are closed, wireless unlock is performed, entry unlock operation is performed or 10 seconds have passed after warning start
        Warning description Combination meter buzzer Multi-buzzer None
        Combination meter display Combination meter information None
        Wireless buzzer Sounds continuously (beep)
        Recommended user action Close all doors and perform entry lock operation
    6. Situation E

      Passenger has brought key out of vehicle warning

      1. With power switch in position other than off, key is brought out of vehicle by passenger
        FUNCTION OPERATION CHART

        Reason for warning "hybrid control system cannot be started" prevention
        Warning start condition Power switch is ON (ACC or IG), opened door other than driver side door is closed, vehicle speed is 0 km/h (0 mph) and key is not in detected in vehicle interior and luggage interior
        Warning stop condition Power switch ON (ACC) or OFF, or key is detected in vehicle interior and luggage interior or vehicle speed is above 0 km/h (0 mph)
        Warning description Combination meter buzzer Multi-buzzer Sounds once (1 "pon" sound) (when key is not detected continuously, sounds again when vehicle is first driven)
        Combination meter display Combination meter information "Key is not detected" - "Check key position"
        Wireless buzzer Sounds 3 times (short beeps)
        Recommended user action Check if the passenger who exited the vehicle has the key or not
    7. Situation F

      Key is not within detection area warning

      1. With key not in vehicle cabin or key battery depleted, power switch ON (ACC or IG) operation is attempted
        FUNCTION OPERATION CHART

        Reason for warning User confusion prevention
        Warning condition power switch is not OFF and key is not detected in vehicle interior
        Warning description Combination meter buzzer Multi-buzzer Sounds once (1 "pon" sound)
        Combination meter display Combination meter information "Key is not detected" - "Check key position" is displayed for 10 seconds, then display ends
        Wireless buzzer None
        Recommended user action Check if the key is within the detection area of the vehicle cabin If key is within the vehicle interior, built-in battery may be depleted If key's wireless door lock switch is pressed, check if key's indicator illuminates
        If indicator does not illuminate, replace the built-in battery
        It is recommended that battery be bought at dealer, but battery can be replaced according to user preference
    8. Situation G.

      Key lock-in prevention function buzzer (for cabin)

      1. With key in vehicle cabin, vehicle is exited and door handle lock switch is pressed in an attempt to perform entry lock operation
        FUNCTION OPERATION CHART

        Reason for warning Key reminder vehicle theft warning prevention
        Warning condition Power switch ON (ACC) or OFF, all doors closed, door handle lock switch ON and key is detected in vehicle interior (key is not in luggage)
        Warning description Combination meter buzzer Multi-buzzer None
        Combination meter display Combination meter information None
        Wireless buzzer Sounds for 2 seconds (long beep)
        Recommended user action Pick up key that is in vehicle interior and perform entry lock operation again
    9. Situation H.

      Key lock-in prevention function buzzer (for luggage compartment)

      1. Key is put into luggage compartment and luggage compartment door is accidentally closed
        FUNCTION OPERATION CHART

        Reason for warning Key lock-in
        Precondition Vehicle speed is 0 km/h (0 mph) and entry luggage function is operating (not set to off through customization)
        Warning start condition After preconditions are met, all doors are closed, key is put into luggage and luggage compartment door is closed
        Warning description Combination meter buzzer Multi-buzzer None
        Combination meter display Combination meter information None
        Wireless buzzer Sounds for 2 seconds (short beep)
        Recommended user action Using entry luggage function, open luggage compartment door and remove key
    10. Situation I

      Key battery low warning

      1. Key with almost depleted battery is used to drive vehicle
        FUNCTION OPERATION CHART

        Reason for warning Helpful function
        Warning condition After power switch not OFF condition continues for 20 minutes or more, power switch is changed from not OFF to OFF position, key battery is low and key is detected in vehicle interior and luggage interior
        Warning description Combination meter buzzer Multi-buzzer Sound once (1 "pon" sound)
        Combination meter display Combination meter information "Low Key Battery" - "Have your vehicle checked by a dealer"
        Wireless buzzer None
        Recommended user action Replace key's built-in battery with new one
        It is recommended that battery be bought at dealer, but battery can be replaced according to user preference
  16. BATTERY SAVING
    1. Vehicle battery saving function

      In the smart access system with push-button start, signals are emitted outside of the vehicle at a prescribed interval (0.25 seconds) when the doors are locked. Therefore, the vehicle battery could be drained if the vehicle remains parked for a long time For this reason, the controls listed below exist

      FUNCTION OPERATION CHART

      Condition Control
      Both conditions below are met for 10 days
      • Key is not in detection area
      • Touch sensor or lock switch operation is not performed
      		 Signal transmission interval is extended from 0.25 to 0.75 seconds
      Both conditions below are met for 15 days
      • Key is not in detection area
      • Touch sensor or lock switch operation is not performed
      		 Signal transmission interval is extended from 0.75 to 2.25 seconds
      Both conditions below are met for 30 days
      • Key is not in detection area
      • Touch sensor or lock switch operation is not performed
      		 Automatically deactivates the smart access system with push-button start

      Reinstatement Conditions

      • A wireless door lock control signal (lock, unlock) is input and the ID matches.
      • A user carries the key and pushes a lock switch on an outside door handle.
      • The driver door is locked or unlocked by the mechanical key.
    2. Key battery and vehicle battery saving function-In the smart access system with push-button start, if the key is constantly located within the vehicle exterior detection area of the doors, the system maintains periodic communication with the key Therefore, if the vehicle remains parked in that state for a long time, the key battery and the vehicle battery could be drained For this reason, if this state continues longer than 10 minutes, the smart access system with push-button start automatically becomes deactivated

      Reinstatement Conditions

      • A wireless door lock control signal (lock, unlock) is input and the ID code matches
      • A user carries the key and pushes a lock switch on an outside handle
      • The driver door is locked or unlocked by the mechanical key
  17. KEY DIAGNOSTIC MODE (Using the intelligent tester or Techstream)

    HINT:

    Key diagnostic mode checks if the electrical key transmitter within a selected oscillator/antenna detection area is operating normally The results are output through the wireless door lock buzzer (in right front fender)

    1. Connect the intelligent tester or Techstream to the DLC3
    2. Turn the power switch ON (IG)
    3. Turn the tester on.
    4. Enter the following menus.
      1. Intelligent tester - Select: DIAGNOSIS / OBD/ MOBD / SMART ACCESS / ID UTILITY / SMART DIAGMODE
      2. Techstream - Select Body Electrical / Smart Access / Smart Communication Check.
    5. Check the values by referring to the table below
      1. Intelligent tester

        SMART ACCESS

        TESTER DISPLAY CHART

        Tester Display Inspection Range
        D + OVERHEAD [*1] Door electrical key oscillator
        P + OVERHEAD [*2] Door electrical key oscillator
        RL + OVERHEAD [*3] Door electrical key oscillator
        RR + OVERHEAD [*4] Door electrical key oscillator
        Fr + OVERHEAD [*5] Indoor electrical key oscillator (for Front Floor)
        Rr + OVERHEAD [*6] Indoor electrical key oscillator (for Rear Floor)
        IN LUG + IN LUG [*7] Indoor electrical key oscillator (for Luggage Compartment)
        LUGG + OVERHEAD [*8] Electrical key antenna
        LUGG + IN LUG [*9] Electrical key antenna
      2. Techstream

        Smart Access

        TESTER DISPLAY CHART

        Tester Display Inspection Range
        Overhead + Driver Side [*1] Door electrical key oscillator
        Overhead + Passenger Side [*2] Door electrical key oscillator
        Overhead + Driver Side Rear [*3] Door electrical key oscillator
        Overhead + Passenger Side Rear [*4] Door electrical key oscillator
        Overhead + Front Room [*5] Indoor electrical key oscillator (for Front Floor)
        Overhead + Rear Room [*6] Indoor electrical key oscillator (for Rear Floor)
        Luggage + Luggage [*7] Indoor electrical key oscillator (for Luggage Compartment)
        Overhead + Luggage [*8] Electrical key antenna
        Luggage + Luggage (inside) [*9] Electrical key antenna
    6. When the electrical key transmitter is brought near the selected oscillator/antenna, check that the wireless door lock buzzer sounds
      1. *1. Door electrical key oscillator

        HINT:

        • Hold the key at the same height as the door's outside handle (0.7 to 1.0 m (2 30 to 3.28 ft)) Pay attention to the direction of the key in the illustration
        • *2. Perform the same inspection above for the door electrical key oscillator (front passenger seat outside transmitter).
        • *3. Perform the same inspection above for the door electrical key oscillator (rear left seat outside transmitter).
        • *4 Perform the same inspection above for the door electrical key oscillator (rear right seat outside transmitter).
          Fig 4: Identifying Door's Outside Handle Height
          G05783105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. *5 Indoor electrical key oscillator (front inside transmitter).

        HINT:

        Place the electrical key transmitter on the driver or front passenger seat cushion.

      3. *6 Indoor electrical key oscillator (rear inside transmitter).

        HINT:

        Place the electrical key transmitter on the rear seat cushion.

      4. *7. Indoor electrical key oscillator (for luggage compartment).

        HINT:

        Place the electrical key transmitter in the luggage compartment.

      5. *8, *9. Electrical key antenna (for luggage compartment).

        HINT:

        Hold the electrical key transmitter at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, as shown in the illustration.

        Fig 5: Identifying Electrical Key Transmitter Height
        G05783106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
scientia non olet · About LEMON Manuals
