Driver Monitor Camera: Installation

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL DRIVER MONITOR CAMERA
1. Attach the 2 claws to install the camera

  Fig 1: Installing Driver Monitor Camera
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the camera with the 3 screws.
Torque: 1.8 N*m (18 kgf*cm, 16 in.*lbf)

Fig 2: Identifying Driver Monitor Camera Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL DRIVER MONITOR BRACKET
1. Attach the claw to install the bracket.
2. Install the screw.
Torque: 0.9 N*m (9.0 kgf*cm, 8.0 in.*lbf)

Fig 3: Locating Driver Monitor Bracket Screw
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEERING COLUMN COVER
1. Connect the connector.
2. Attach the claw and 4 clips to install the cover.

  Fig 4: Identifying Steering Column Cover Claw And Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Attach the 2 claws to install the cover.
4. Install the 3 screws.
CHECK SRS WARNING LIGHT
1. Check the SRS warning light (see CHECK MODE PROCEDURE ).

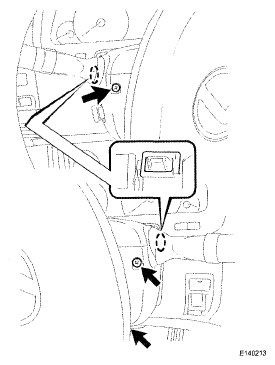

Fig 5: Locating Steering Column Cover Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
