Mayday Battery: Components

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

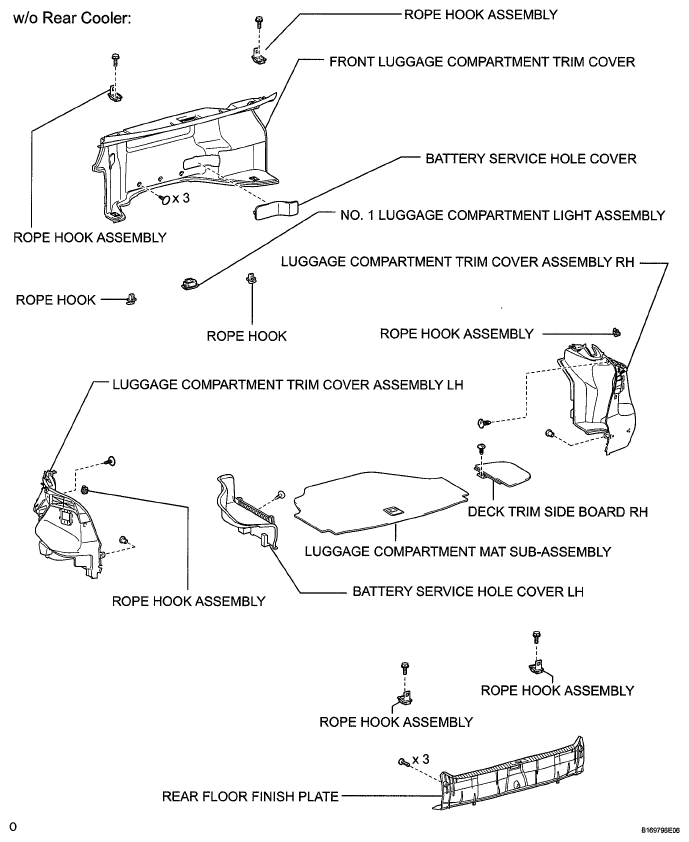

Fig 1: Identifying Mayday Battery Components (1 Of 3)
G05784513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Mayday Battery Components (2 Of 3)
G05784503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

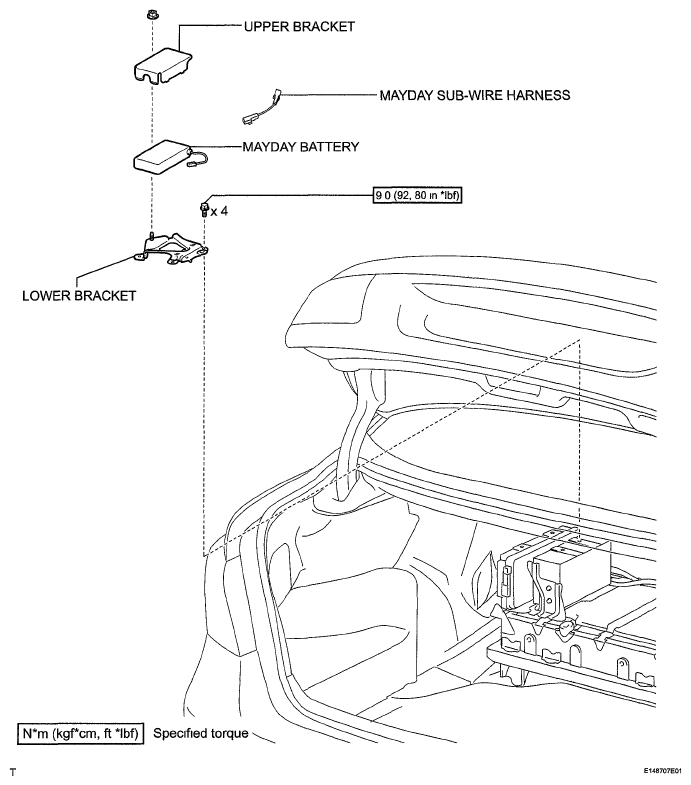

Fig 3: Identifying Mayday Battery Components (3 Of 3)
G05784515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
