Power Source Circuit: Procedure

  1. INSPECT FUSE (STR LOCK)
    1. Remove the STR LOCK fuse from the main body ECU.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      STR LOCK fuse Always Below 1 Ω

    NG → REPLACE FUSE

    OK: Go to next step

  2. CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - BATTERY)

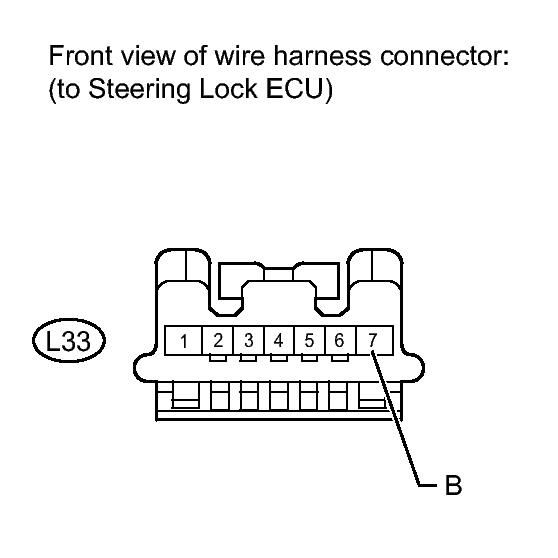

    Fig 1: Checking Harness And Connector (Steering Lock ECU - Battery)
    GTY109862Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L33 steering lock ECU connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard voltage

      Tester Connection Condition Specified Condition
      L33-7 (B) - Body ground Always 11 to 14 V

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  3. CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - BODY GROUND)

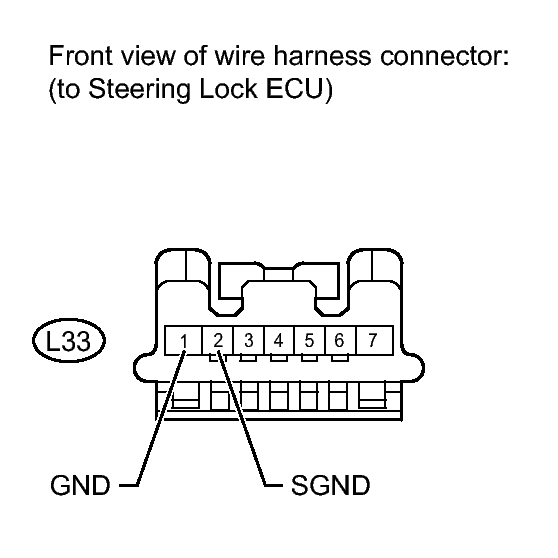

    Fig 2: Checking Harness And Connector (Steering Lock ECU - Body Ground)
    GTY109863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L33 steering lock ECU connector.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      Tester Connection Condition Specified Condition
      L33-1 (GND) - Body ground Always Below 1 Ω
      L33-2 (SGND) - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → See step   4

  4. GO TO STEERING LOCK SYSTEM (PROBLEM SYMPTOMS TABLE). Refer to  PROBLEM SYMPTOMS TABLE
