Keyless Entry Module: Locations

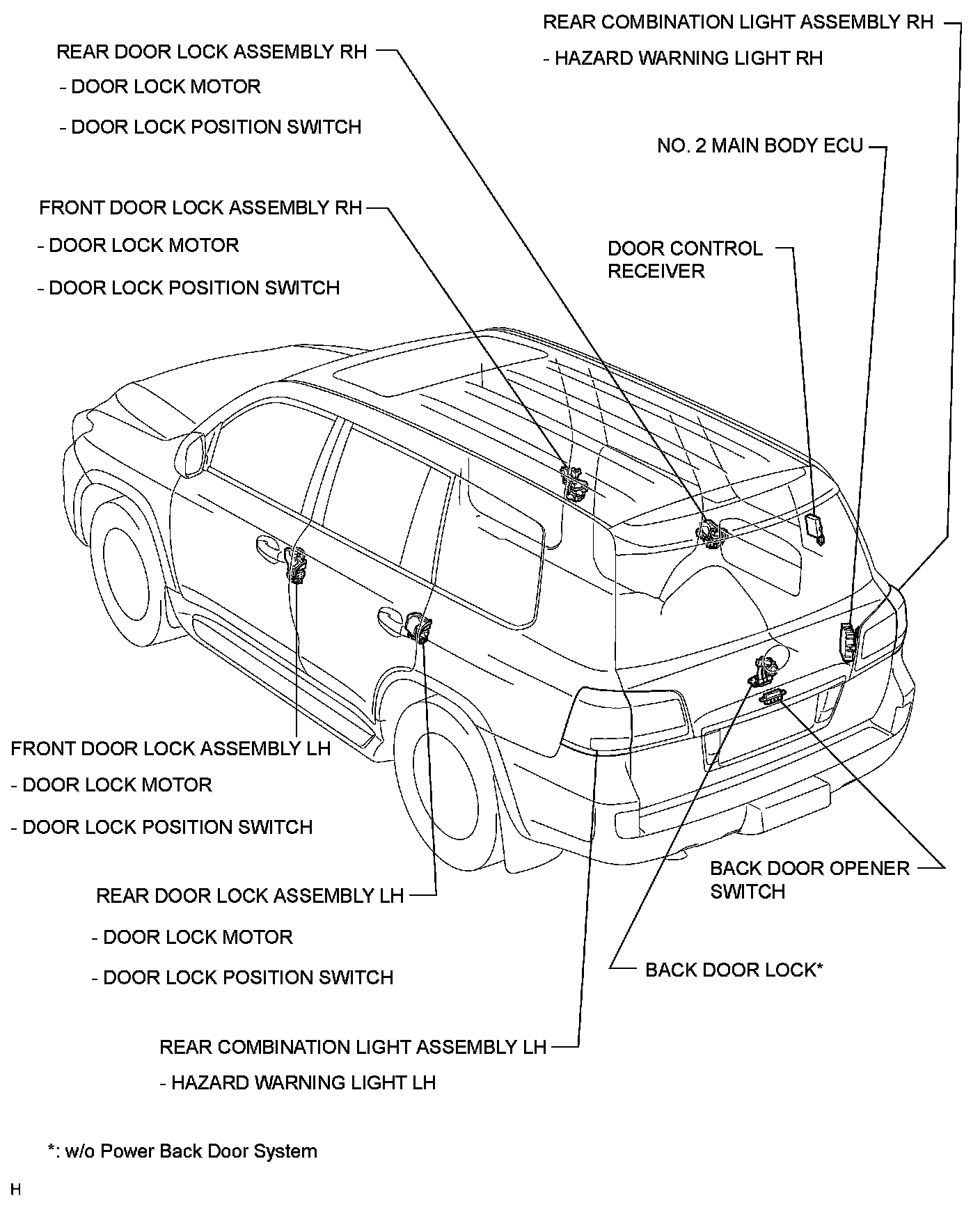

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
