Installation

POWER OUTLETS (INT): VOLTAGE INVERTER: INSTALLATION

INSTALLATION

1. INSTALL VOLTAGE INVERTER ASSEMBLY

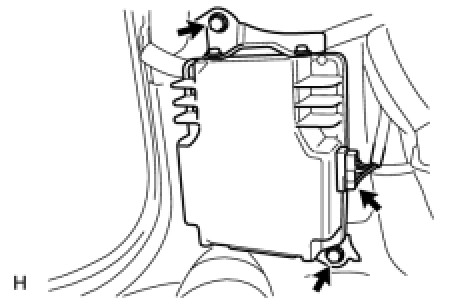

(a) Install the voltage inverter with the 2 bolts.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
(b) Connect the connector.
2. INSTALL FRONT QUARTER TRIM PANEL ASSEMBLY LH Installation
3. INSTALL REAR SEAT COVER CAP (for Rear No. 2 Seat with Manual Folding-up Function) Installation
4. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Installation
5. INSTALL REAR FLOOR MAT REAR SUPPORT PLATE Installation
6. INSTALL REAR DOOR SCUFF PLATE LH Installation
7. INSTALL REAR STEP COVER Installation
8. INSTALL REAR NO. 2 SEAT ASSEMBLY LH
(a) Install the rear No. 2 seat assembly LH Installation.
