Power Distribution Module: Testing and Inspection

POWER OUTLETS (INT): VOLTAGE INVERTER: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT VOLTAGE INVERTER ASSEMBLY
HINT: Remove interior parts so that the voltage inverter can be seen.

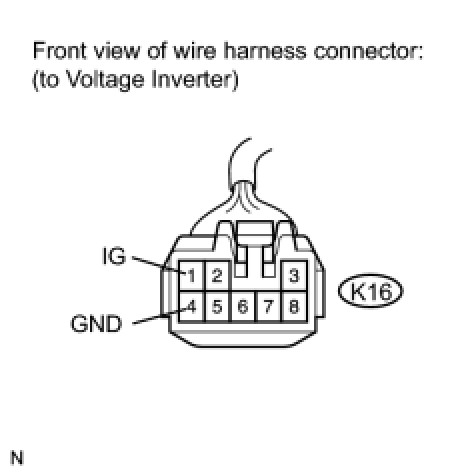

(a) Disconnect the voltage inverter connector.
(b) Measure the voltage according to the value(s) in the table below.

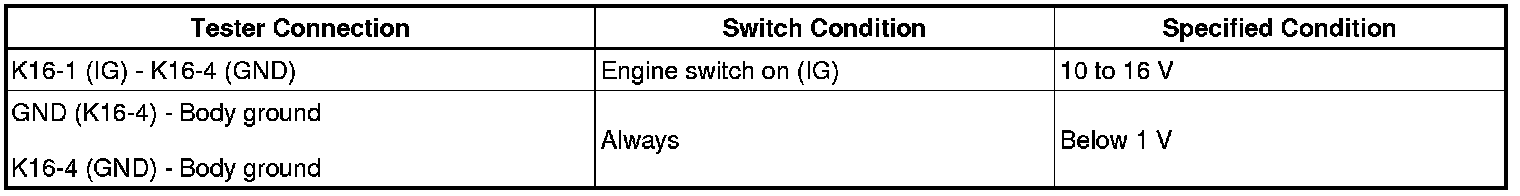

Standard Voltage:





If the result is not as specified, repair or replace the harness or connector.





(c) Reconnect the voltage inverter connector.

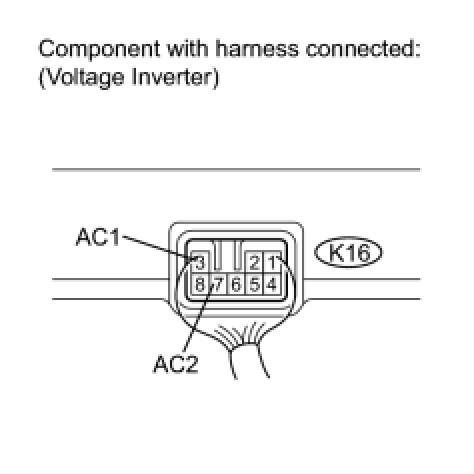

(d) Measure the voltage according to the value(s) in the table below.

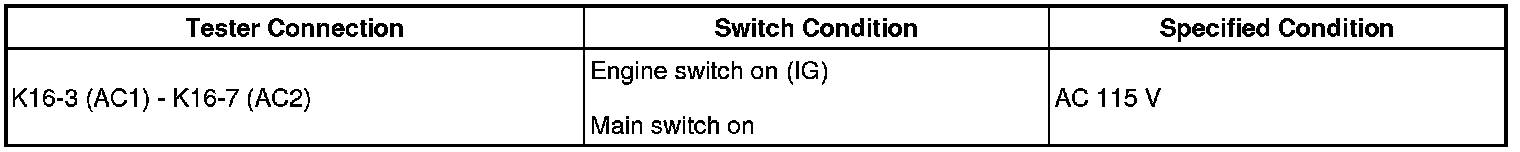

Standard Voltage:





If the result is not as specified, replace the voltage inverter.
