DOOR LOCK: DOOR CONTROL RECEIVER: REMOVAL

REMOVAL

1. REMOVE REAR NO. 2 SEAT ASSEMBLY RH
(a) Remove the rear No. 2 seat RH Removal.
2. REMOVE REAR STEP COVER Removal
3. REMOVE REAR DOOR SCUFF PLATE RH Removal
4. REMOVE REAR FLOOR MAT REAR SUPPORT PLATE Removal
5. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Removal
6. REMOVE REAR SEAT COVER CAP Removal
7. REMOVE FRONT QUARTER TRIM PANEL ASSEMBLY RH Removal
8. REMOVE CENTER BACK DOOR GARNISH Disassembly
9. REMOVE BACK DOOR SIDE GARNISH RH Disassembly
10. REMOVE BACK DOOR SERVICE HOLE COVER RH Disassembly
11. REMOVE REAR UPPER PILLAR GARNISH RH Removal

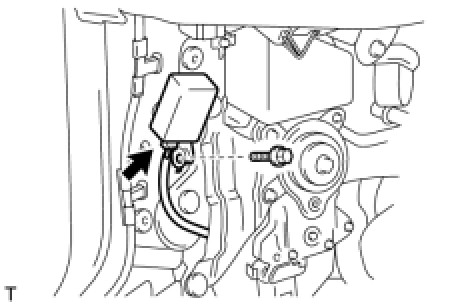

12. REMOVE DOOR CONTROL RECEIVER





(a) Disconnect the connector.
(b) Remove the bolt and receiver.
