Dynamic Radar Cruise Control System

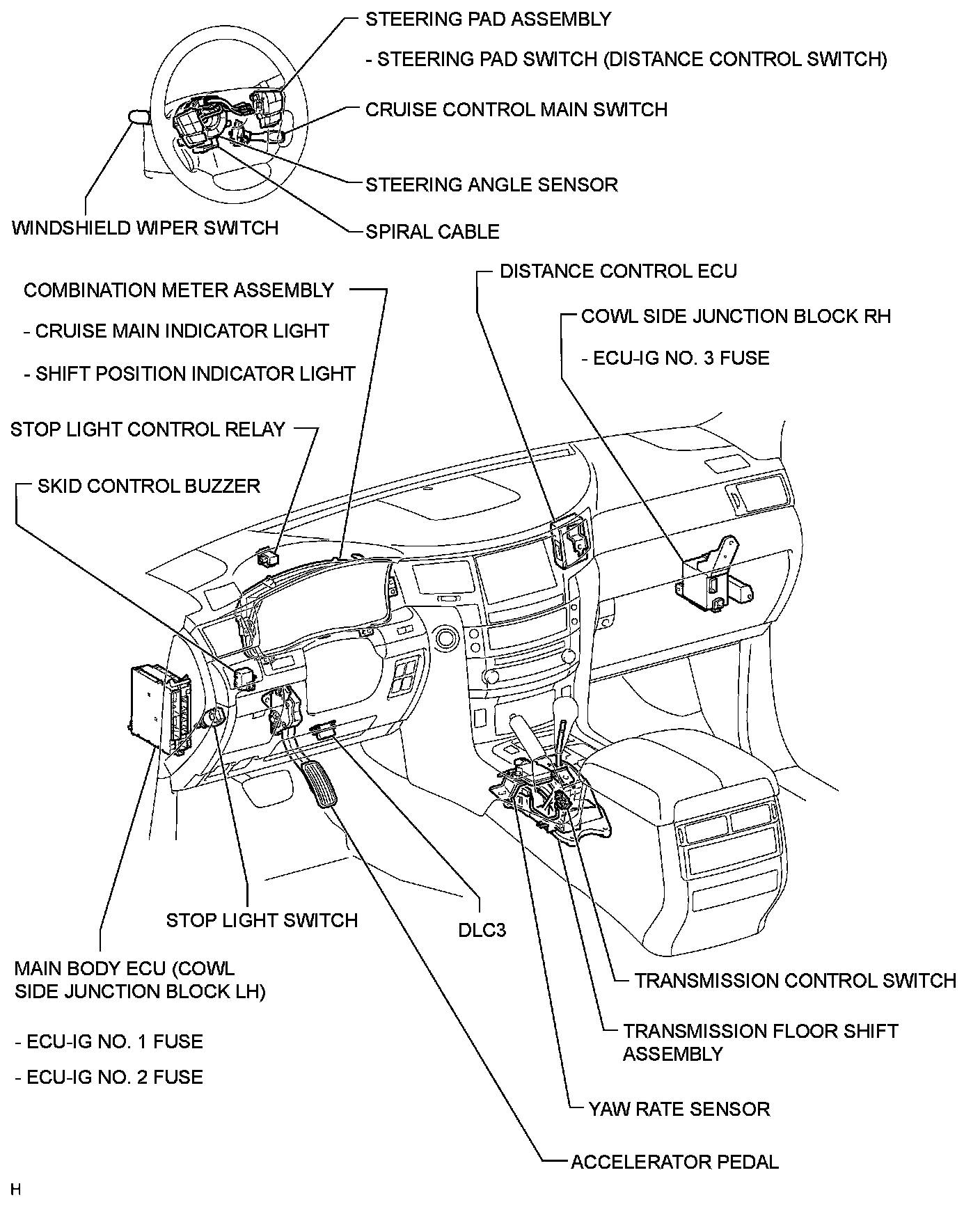

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
