Service Data
SPECIFICATIONS: AB60F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA

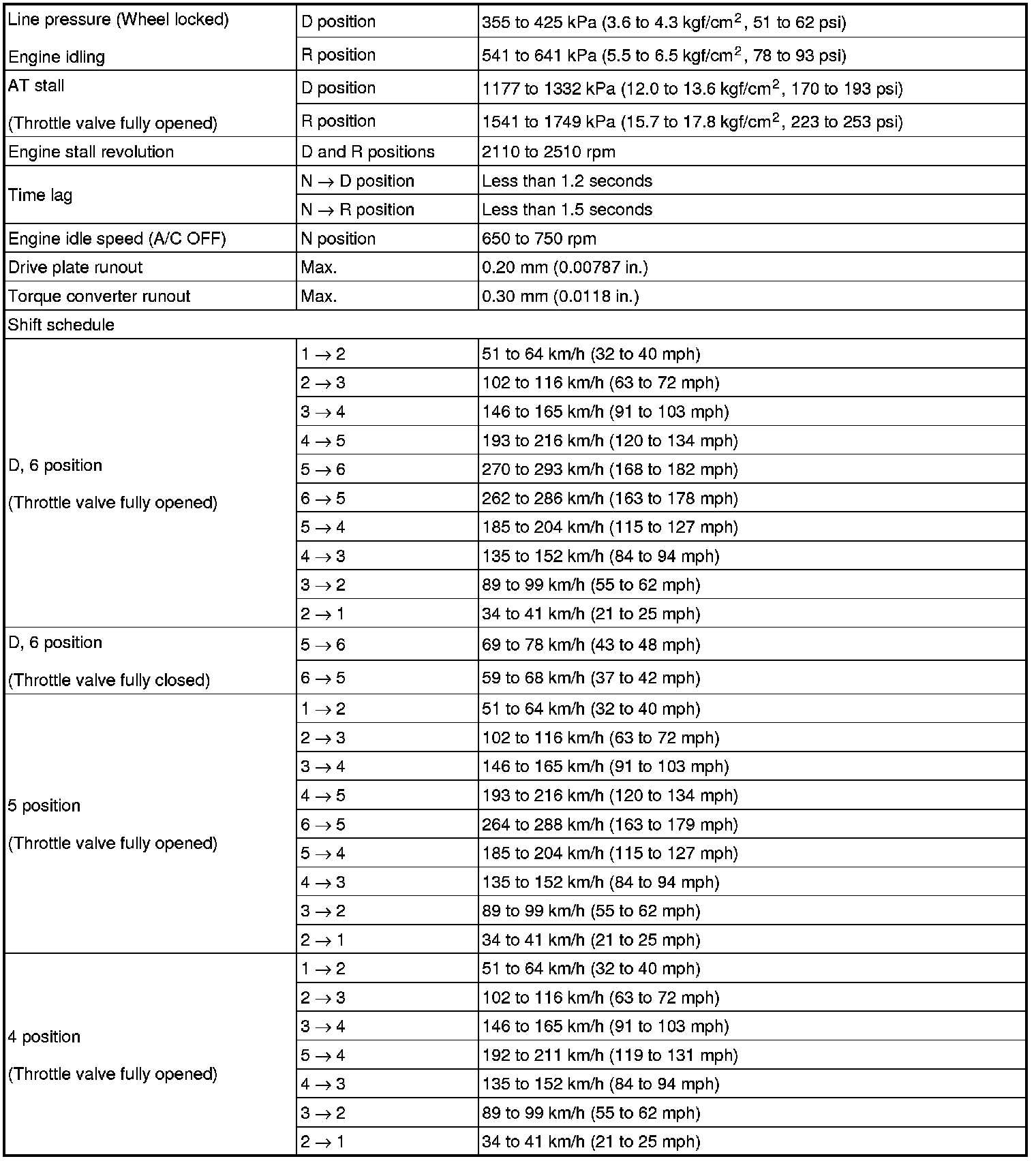

SERVICE DATA

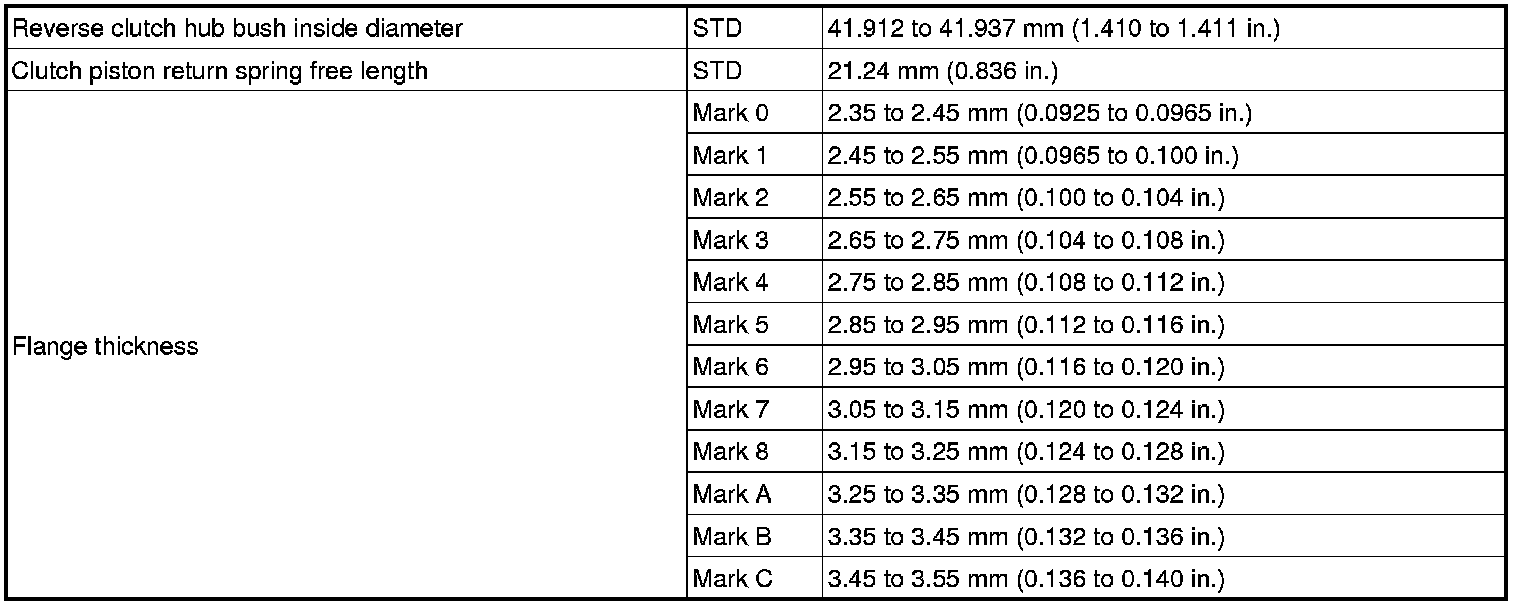

Reverse Clutch

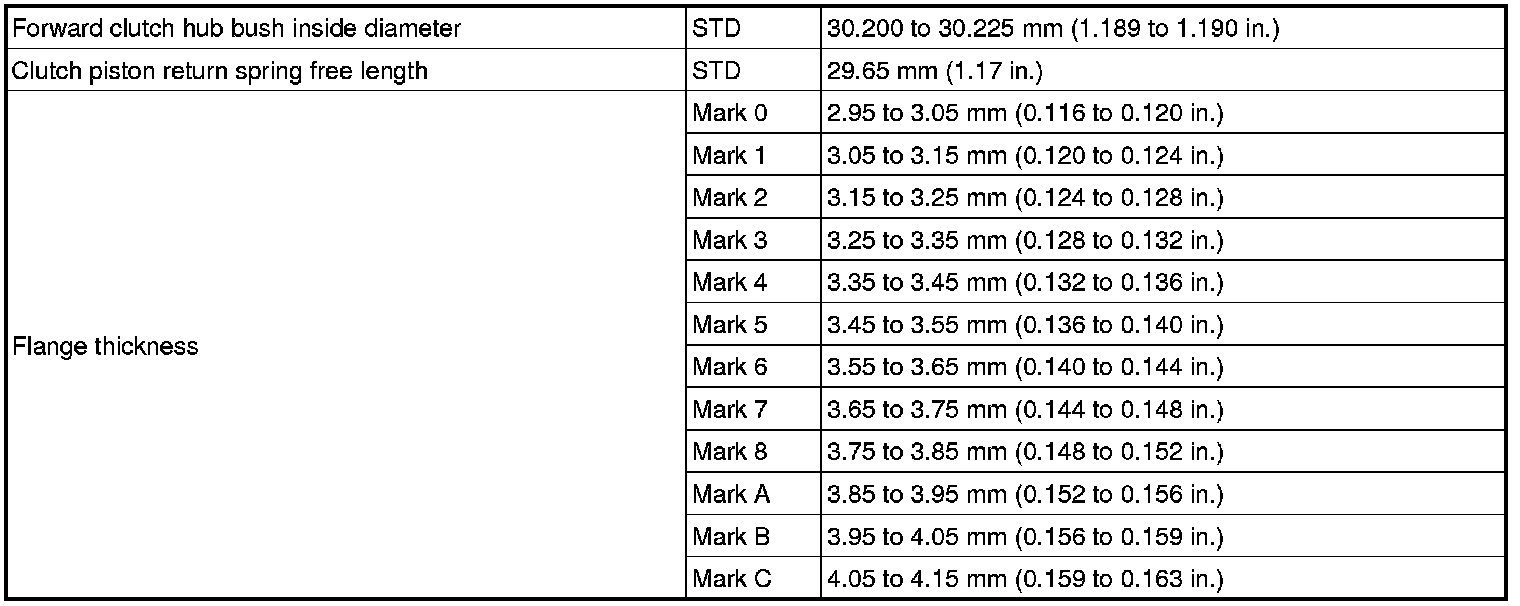

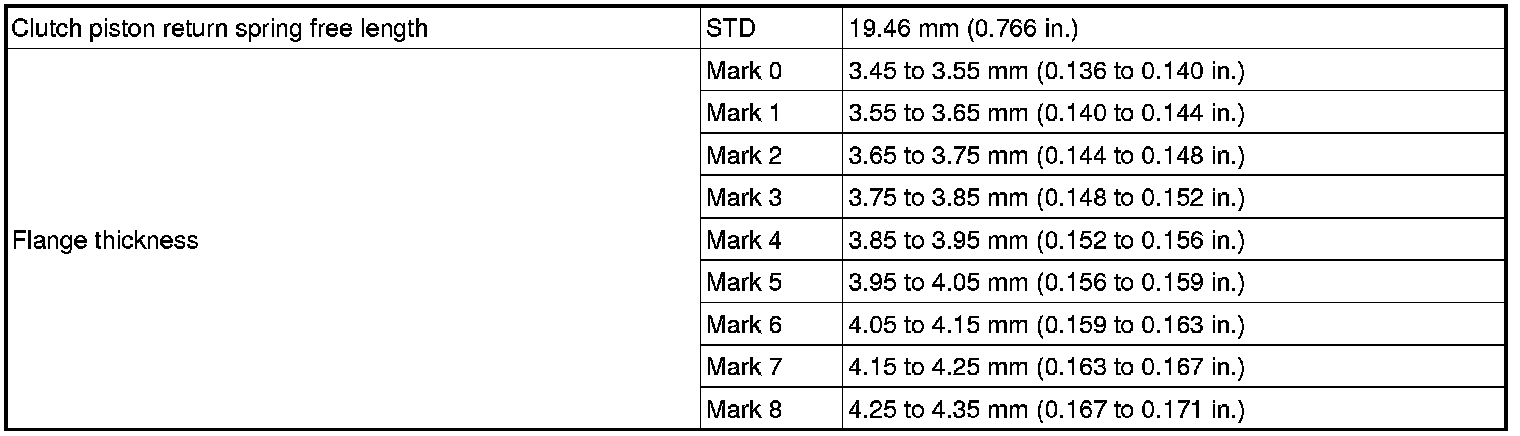

Forward Clutch
Direct Clutch
Coast Clutch
No. 3 Brake
Front Planetary Gear
No. 1 Brake
No. 2 Brake
Center Planetary Gear

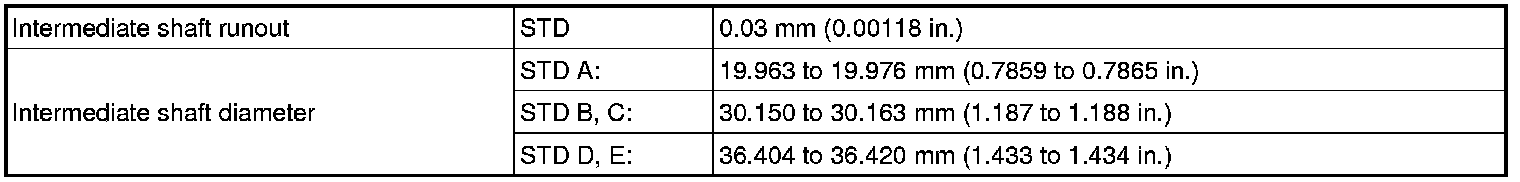

Intermediate Shaft
Rear Planetary Gear
No. 4 Brake

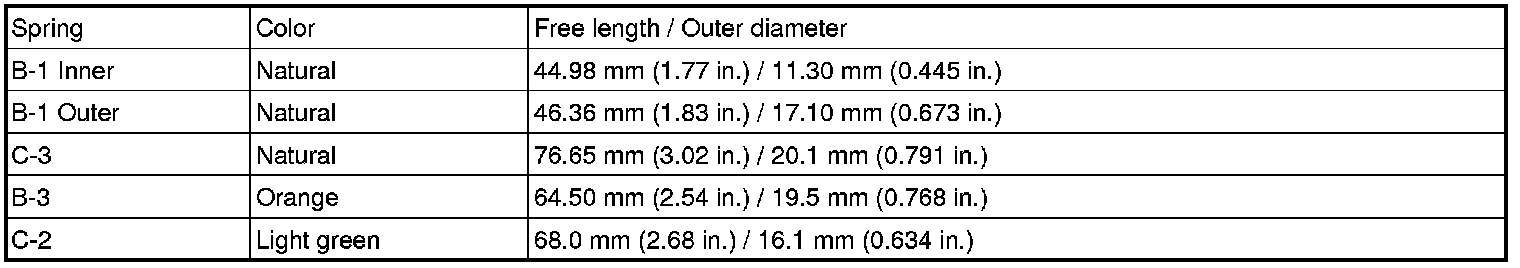

Accumulator

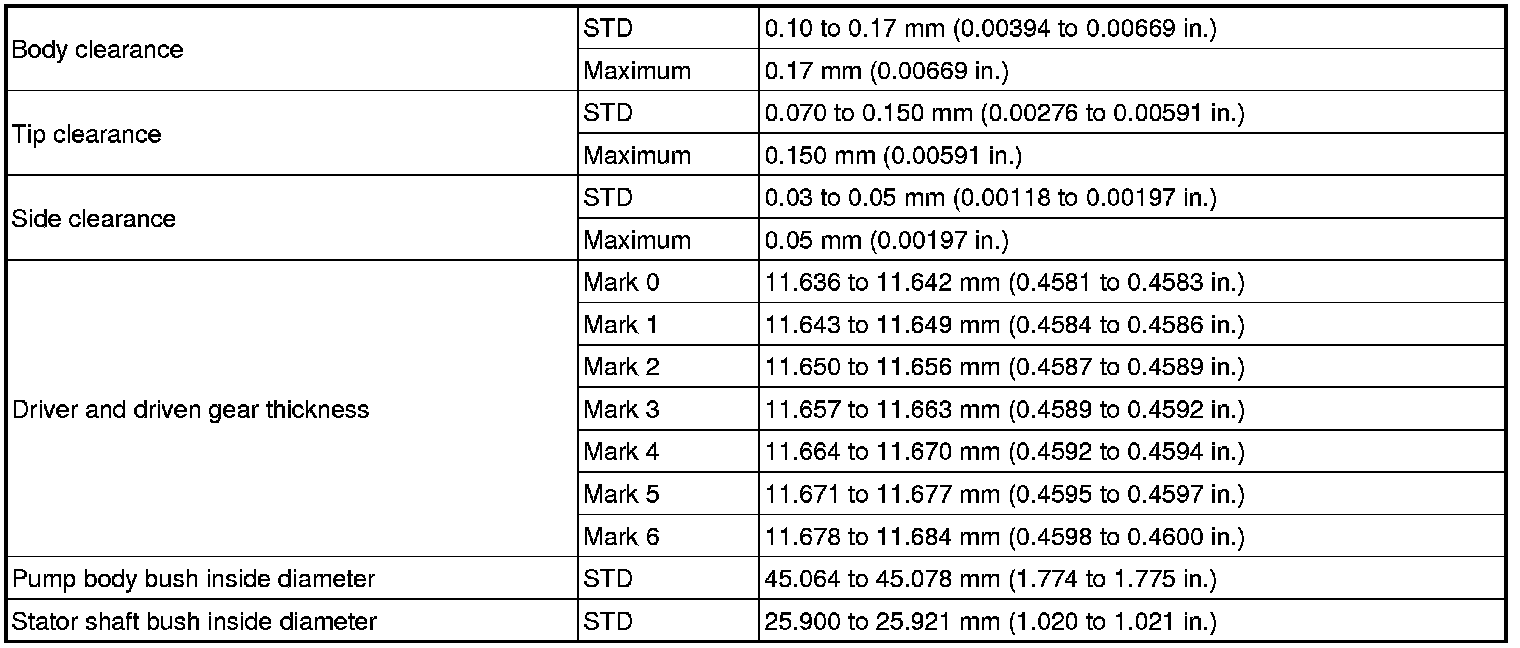

Oil Pump
