System Diagram

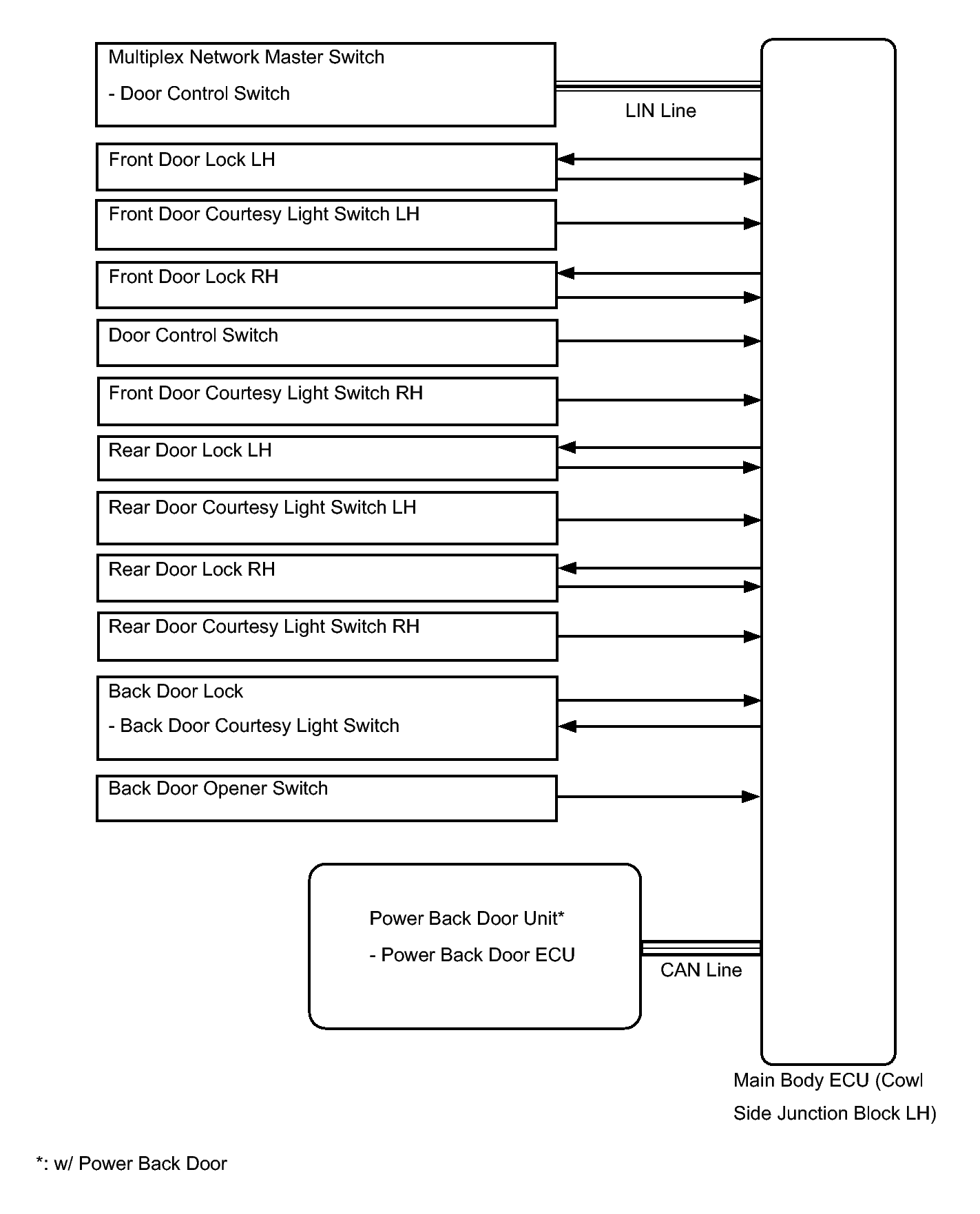

Fig 1: Power Door Lock Control System - System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

COMMUNICATION TABLE

Sender	Receiver	Signal	Line
Master Switch	Main Body ECU	Driver side door manual lock switch signal	LIN
