Power Seat Position is not Memorized: Procedure

1. Check that each function of the power seat operates normally by using the front power seat switches.

   OK

   Each function of power seat operates normally by using seat switches.

NG → See step   9

OK: Go to next step

1. Perform a memory operation properly. Check that the buzzer sounds to indicate the completion of the memory operation.
   NOTE:

   • The seat position will not be recorded if the seat memory SET switch and 2 or more of the seat memory switches (for example, seat memory switch 1 and seat memory switch 2) are pressed simultaneously.
   • If a memorizing operation has failed, release all switches. The seat memory function does not operate unless the switches are released.

   OK

   Seat memory switch function operates normally.

NG → See step   3

OK → END

1. When the engine switch is on (IG) and the shift lever is in P, check that the combination meter shows that the shift lever is in P.

   OK

   Meter shows that shift lever is in P.

NG → See step   10

OK: Go to next step

1. Check the Data List for proper functioning of the seat memory switch.
   DRIVER SEAT



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   SET Switch	Seat memory SET switch signal / ON or OFF	ON: Seat memory SET switch on OFF: Seat memory SET switch off	-
   M1 Switch	Seat memory switch 1 signal / ON or OFF	ON: Seat memory switch 1 on OFF: Seat memory switch 1 off	-
   M2 Switch	Seat memory switch 2 signal / ON or OFF	ON: Seat memory switch 2 on OFF: Seat memory switch 2 off	-
   M3 Switch	Seat memory switch 3 signal / ON or OFF	ON: Seat memory switch 3 on OFF: Seat memory switch 3 off	-

   OK

   On the Techstream screen, each item changes between ON and OFF according to above chart.

NG → See step   5

OK → See step   11

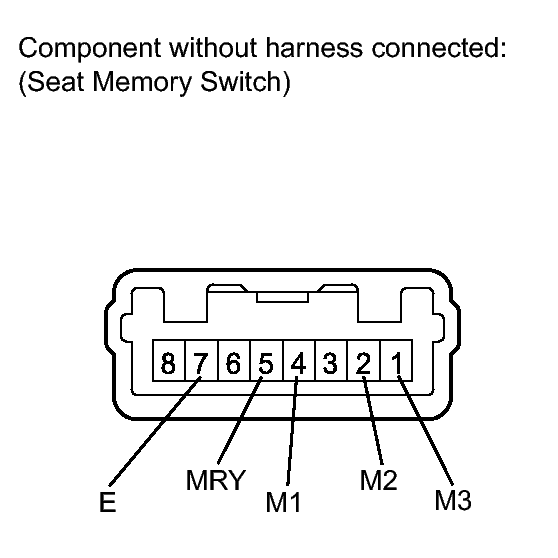

Fig 1: Identifying Seat Memory Switch Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the seat memory switch. Refer to REMOVAL .
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   4 (M1) - 7 (E)	Seat memory switch 1 pressed	Below 1 Ω
   2 (M2) - 7 (E)	Seat memory switch 2 pressed	Below 1 Ω
   1 (M3) - 7 (E)	Seat memory switch 3 pressed	Below 1 Ω
   5 (MRY) - 7 (E)	Seat memory SET switch pressed	Below 1 Ω

NG → See step   12

OK: Go to next step

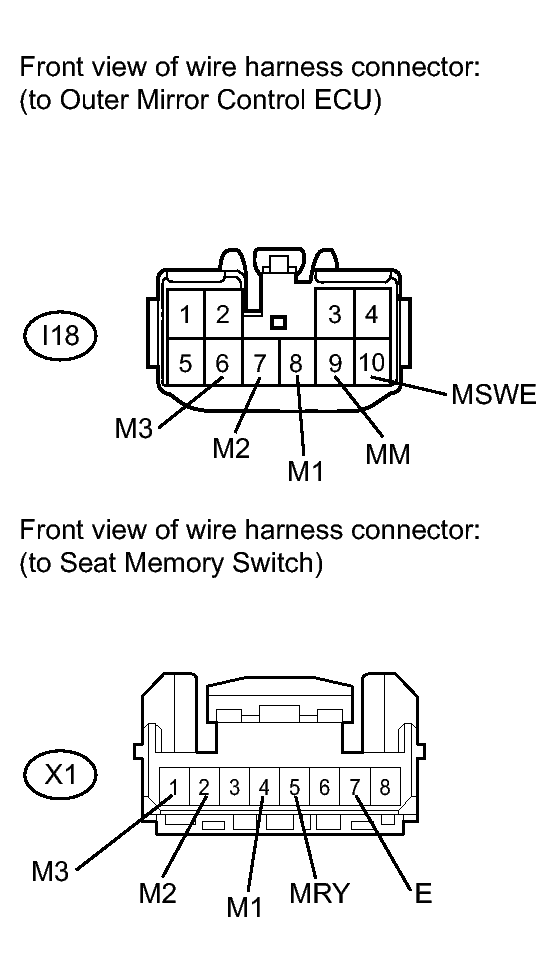

Fig 2: Identifying X1 Switch And 118 ECU Connectors

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the I18 ECU connector.
2. Disconnect the X1 switch connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   I18-8 (M1) - X1-4 (M1)	Always	Below 1 Ω
   I18-7 (M2) - X1-2 (M2)	Always	Below 1 Ω
   I18-6 (M3) - X1-1 (M3)	Always	Below 1 Ω
   I18-9 (MM) - X1-5 (MRY)	Always	Below 1 Ω
   I18-10 (MSWE) - X1-7 (E)	Always	Below 1 Ω
   I18-8 (M1) - Body ground	Always	10 kΩ or higher
   I18-7 (M2) - Body ground	Always	10 kΩ or higher
   I18-6 (M3) - Body ground	Always	10 kΩ or higher
   I18-9 (MM) - Body ground	Always	10 kΩ or higher
   I18-10 (MSWE) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. After replacing the outer mirror control ECU, check that the front power seat control functions operate normally using the front seat switches and seat memory switch.

   OK

   Front power seat control functions operate normally.

NG → See step   11

OK → See step   8
