Engine Room Relay Block
WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.
Engine Compartment Left (See Figure)

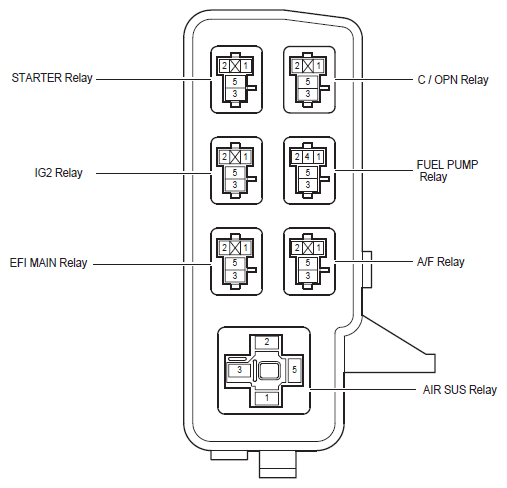

ENGINE ROOM R/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| EFI Main Relay |
| IG2 Relay |
| Starter Relay |
| C/OPN Relay |
| Fuel Pump Relay |
| A/F Relay |
| Air SUS Relay |
