Power Source Circuit: Procedure

1. Disconnect the R26 (R27) connector.

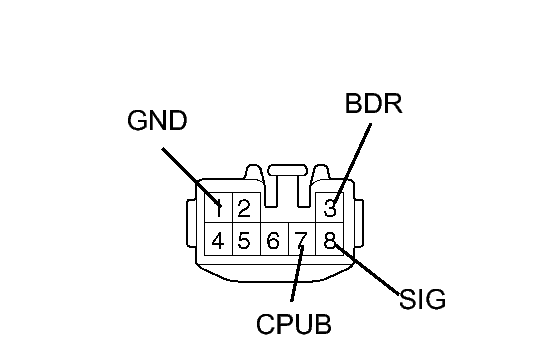

   Fig 1: Inspecting Outer Mirror Control ECU (Power Source)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage and resistance according to the value(s) in the table below.

   Outer mirror control ECU LH

   Standard voltage

   Standard resistance

   Tester Connection	Condition	Specified Condition
   R26-3 (BDR) - Body ground	Always	10 to 14 V
   R26-7 (CPUB) - Body ground	Always	10 to 14 V
   R26-8 (SIG) - Body ground	Ignition switch ON	10 to 14 V

   Tester Connection	Condition	Specified Condition
   R26-1 (GND) - Body ground	Always	Below 1 Ω

   Outer mirror control ECU RH

   Standard voltage

   Standard resistance

   Tester Connection	Condition	Specified Condition
   R27-3 (BDR) - Body ground	Always	10 to 14 V
   R27-7 (CPUB) - Body ground	Always	10 to 14 V
   R27-8 (SIG) - Body ground	Ignition switch ON	10 to 14 V

   Tester Connection	Condition	Specified Condition
   R27-1 (GND) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE WIRE HARNESS

OK → REPLACE OUTER MIRROR CONTROL ECU
