Relay Block No. 1

WARNING: This page is about a different car, the 2008 Lexus RX 350. However, it is still accessible from the selected car via links, so may be relevant.

Cowl Side Panel LH  (See Figure)

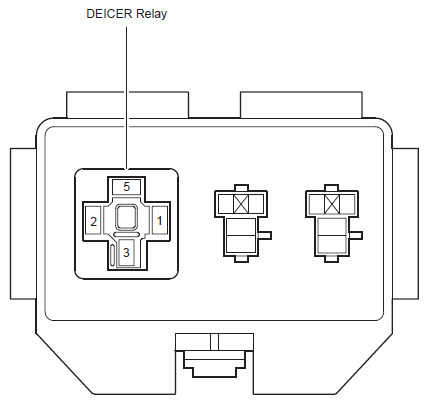

Fig 1: R/B No. 1 Relay Locations
G07602693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
R/B NO.1 RELAY IDENTIFICATION

RELAY DESCRIPTION
Deicer Relay
