CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

INSTALLATION

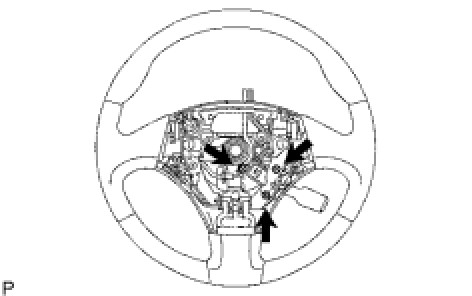

1. INSTALL CRUISE CONTROL MAIN SWITCH ASSEMBLY

(a) Install the switch and steering wheel boss cover lower.
(b) Install the 3 screws.

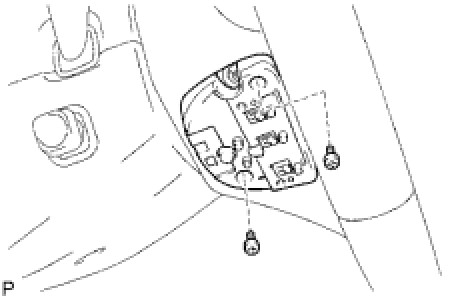

4. INSTALL STEERING PAD SWITCH MODULATOR
(a) Install the modulator and then connect the connector.
(b) Install the 2 screws.

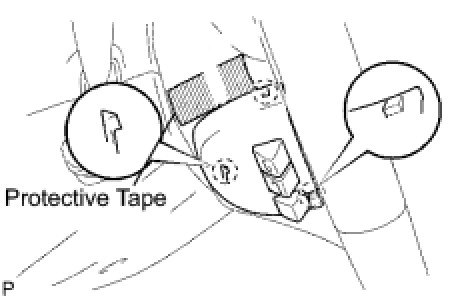

5. INSTALL SWITCH AND VOLUME CASE
(a) Attach the 3 claws to install the case.

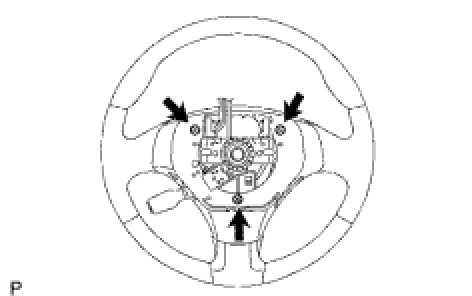

6. INSTALL NO. 2 STEERING WHEEL COVER LOWER
7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
8. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

9. CHECK SRS WARNING LIGHT
(a) Check the SRS warning light Diagnosis System.
