3UZ-FE ENGINE CONTROL SYSTEM: VVT SENSOR: INSTALLATION

INSTALLATION





1. INSTALL VVT SENSOR

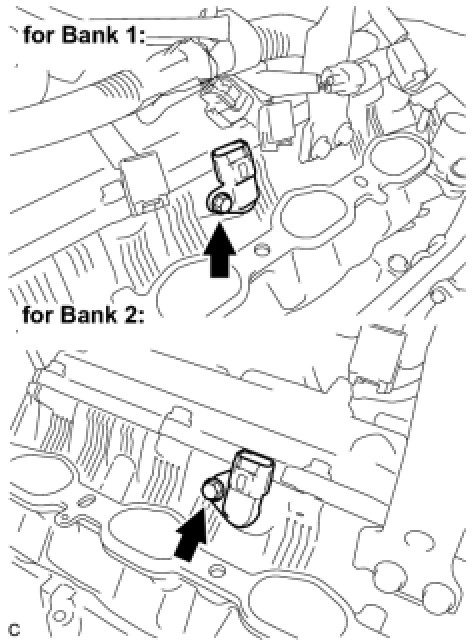

(a) Install the 2 sensors with the 2 bolts.
Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)
2. INSTALL INTAKE MANIFOLD
(a) Install the intake manifold Installation.
3. INSTALL INTAKE AIR CONNECTOR PIPE Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

6. ADD ENGINE COOLANT Service and Repair
7. CHECK FOR ENGINE COOLANT LEAKS
(a) Check for engine coolant leaks Testing and Inspection.
8. INSTALL NO. 1 AIR CLEANER INLET Installation
9. INSTALL V-BANK COVER Installation
