Retractable Hardtop System

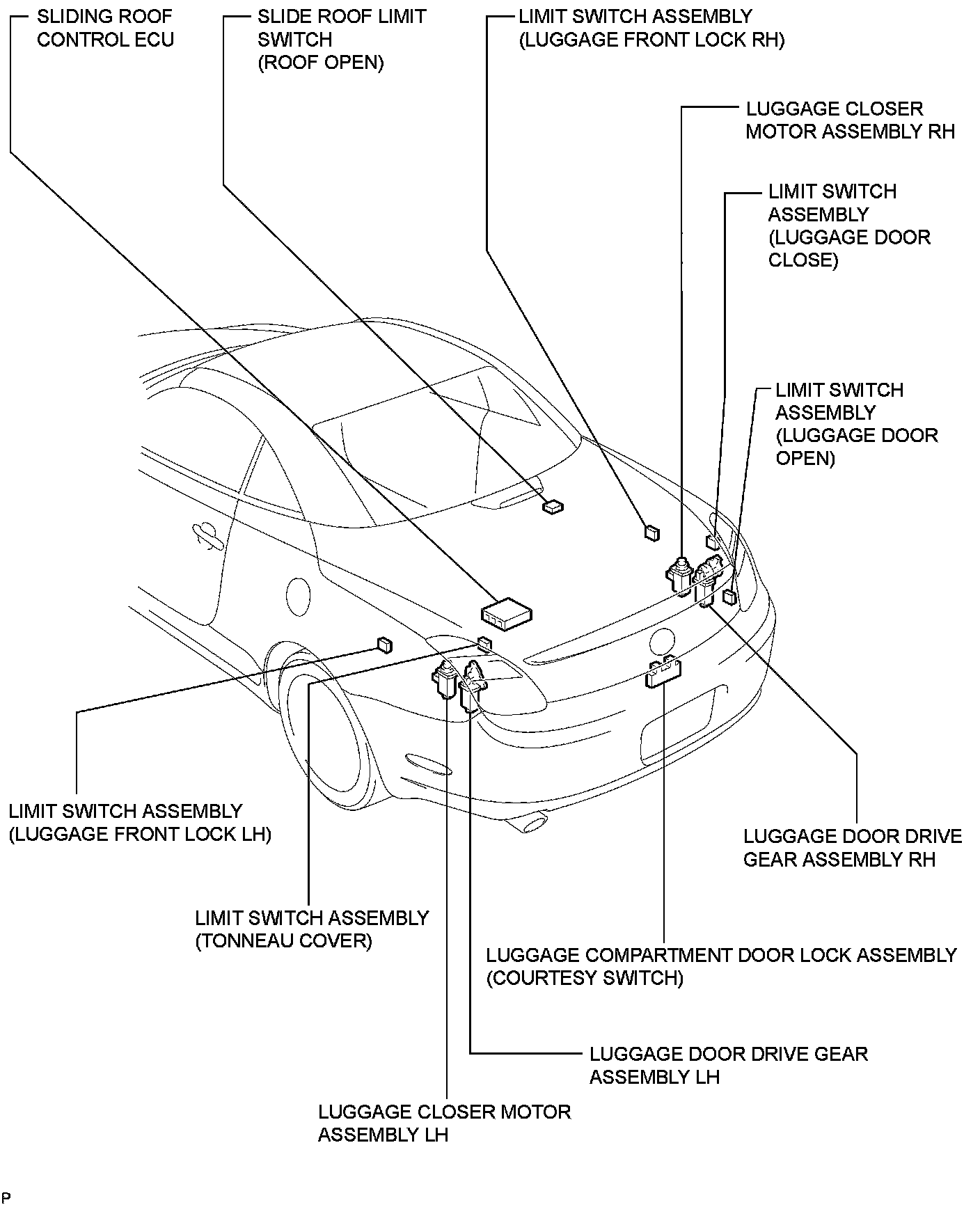

CONVERTIBLE: RETRACTABLE HARDTOP SYSTEM: PARTS LOCATION
PARTS LOCATION
ILLUSTRATION
