Occupant Classification System

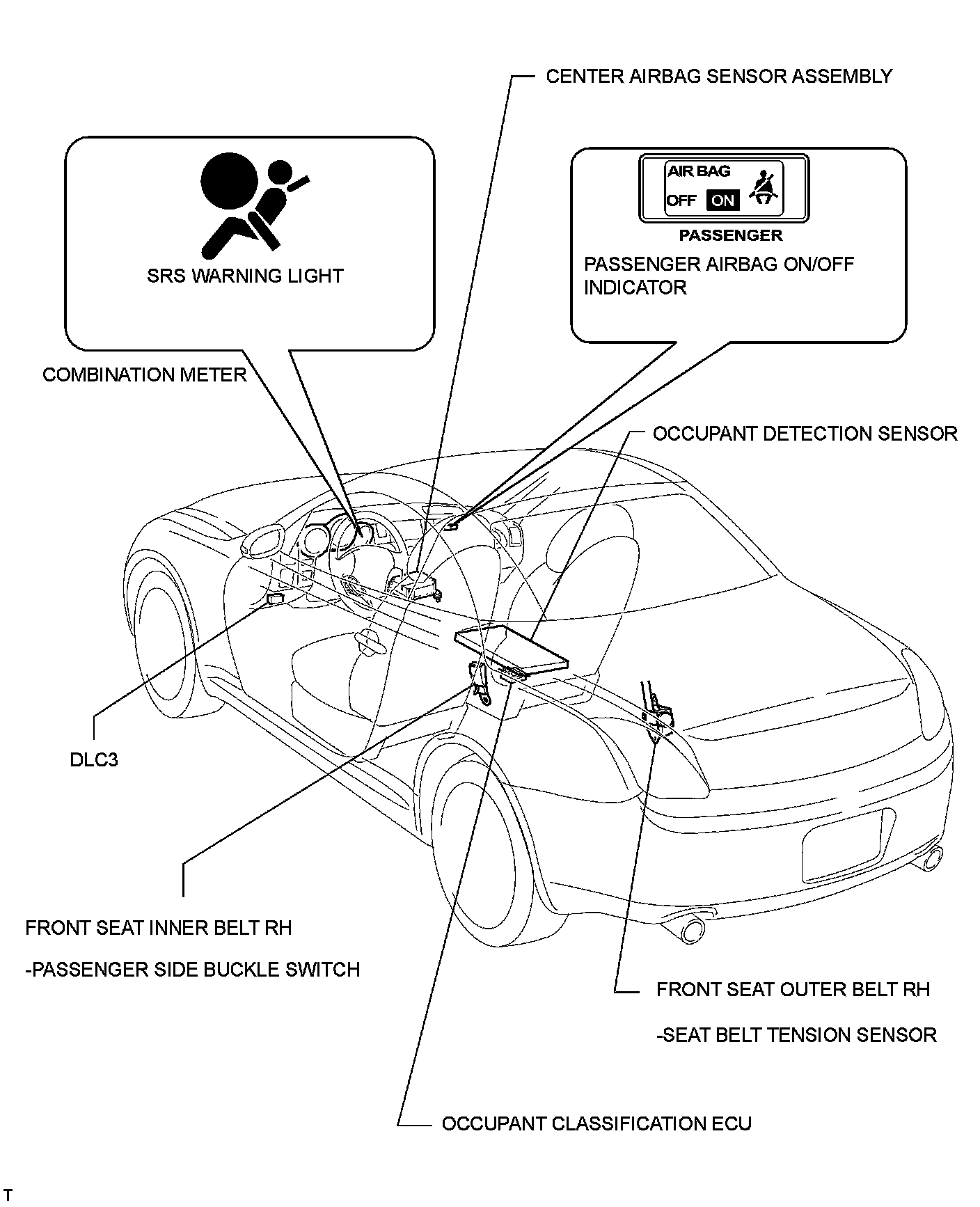

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
