Torque Specifications

SERVICE SPECIFICATIONS: 3UZ-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

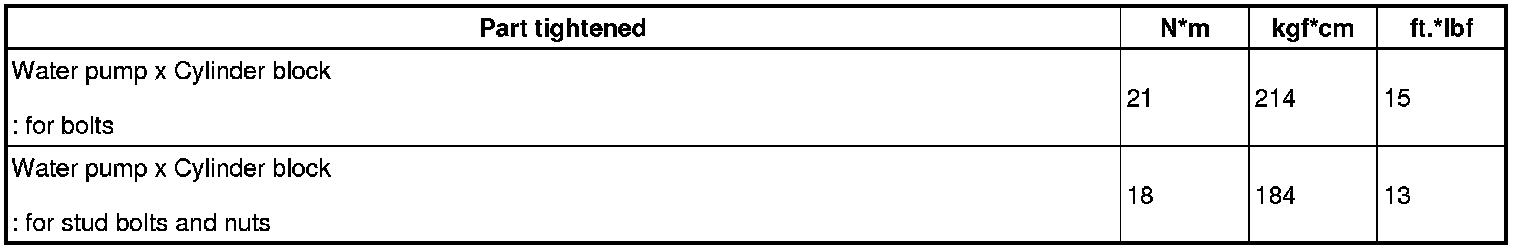

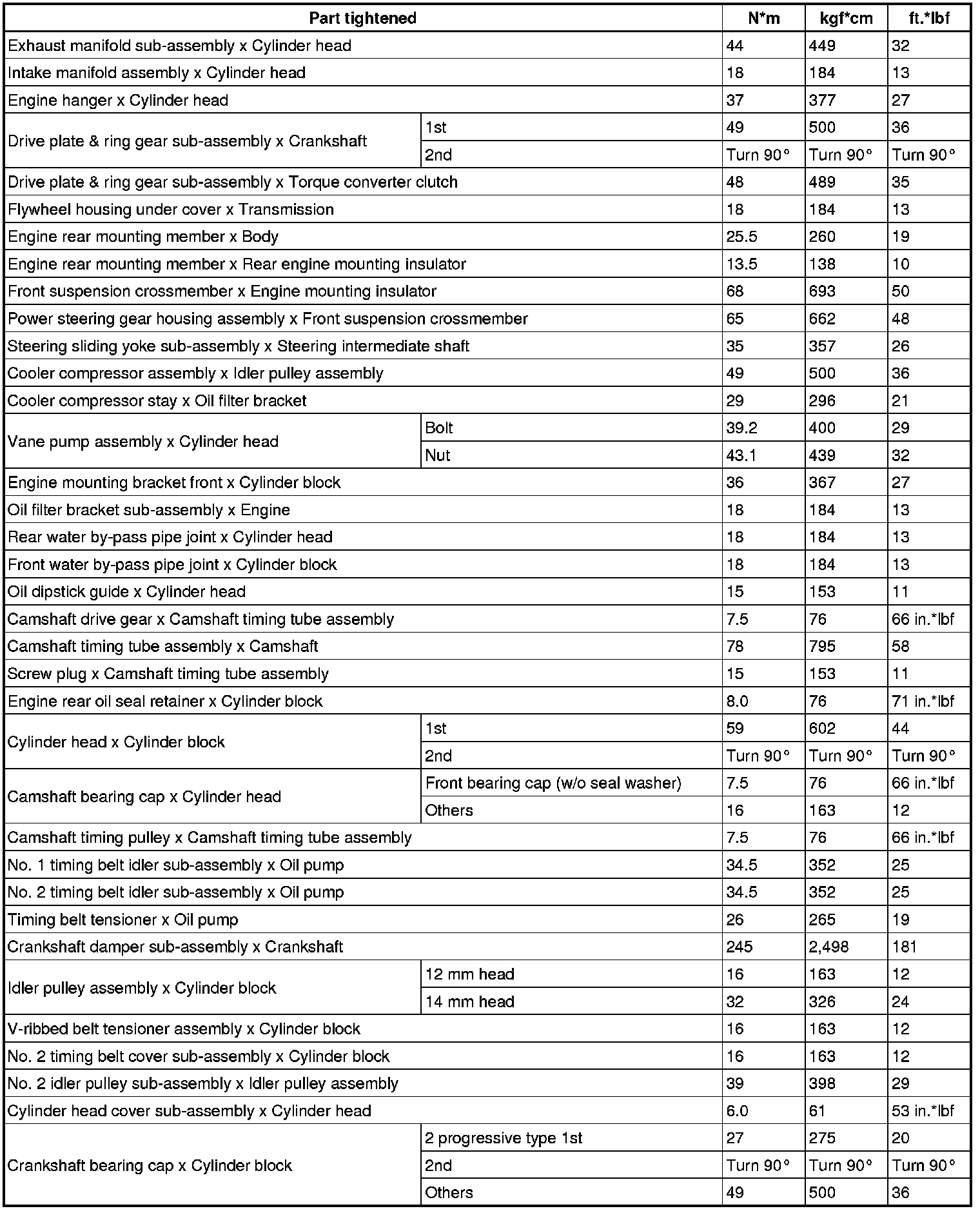

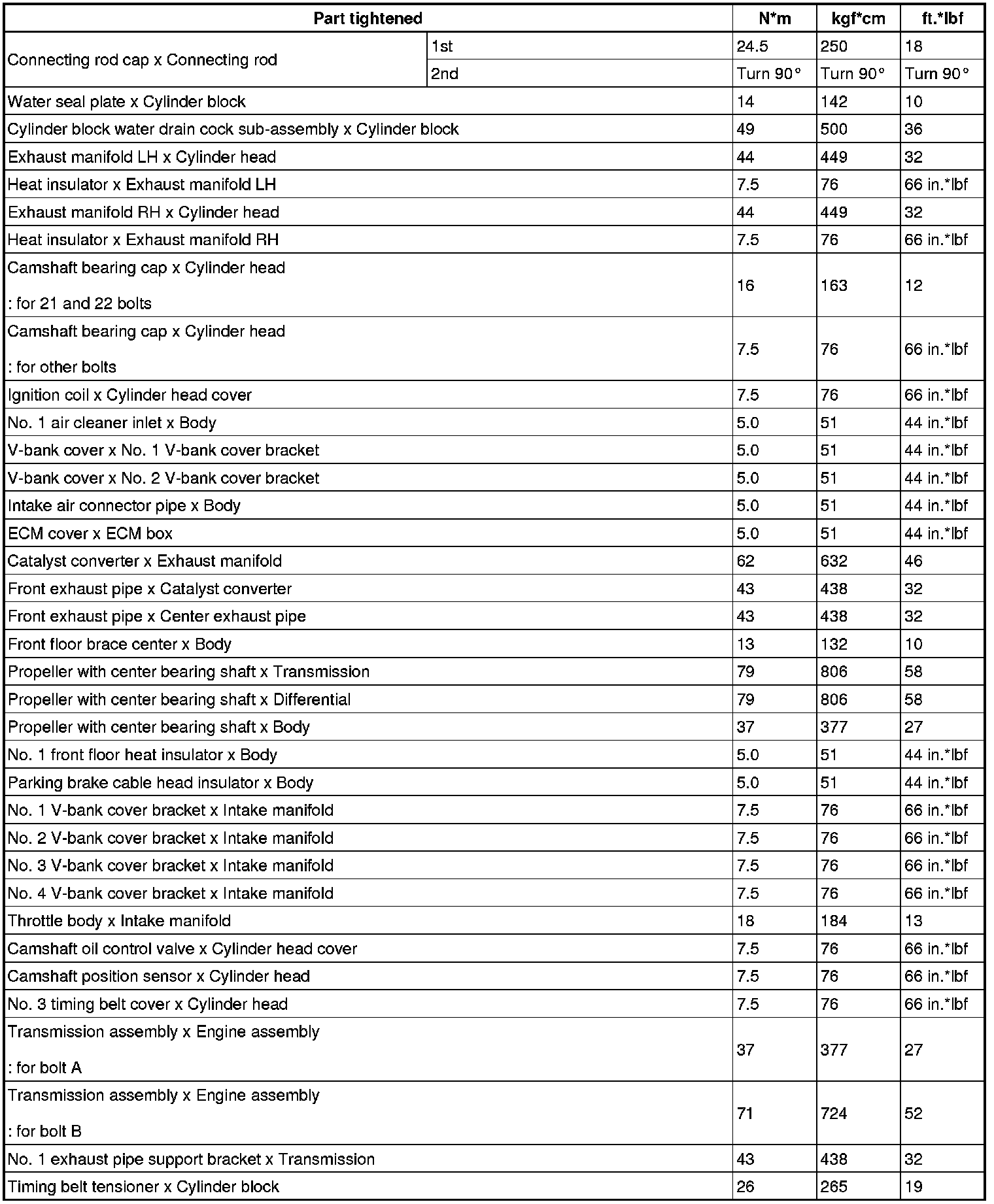

TORQUE SPECIFICATIONS

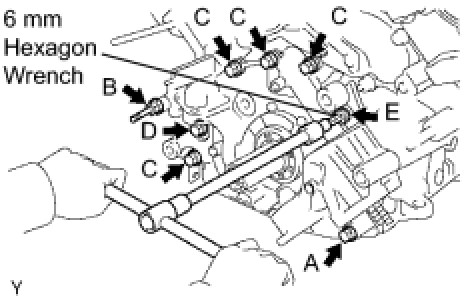

Oil pump bolts
Uniformly tighten the bolts in several passes.
Torque: 15.5 Nm (153 kgf-cm, 11 ft-lbf)
Torque: 30.5 Nm (311 kgf-cm, 22 ft-lbf)

Oil pan bolts
Uniformly tighten the bolts and nuts in several passes.
Torque: 7.5 Nm (76 kgf-cm, 66 in-lbf)for bolt A
Torque: 28 Nm (286 kgf-cm, 21 ft-lbf)for bolt B and nut
