Power Tilt and Power Telescopic Steering Column System

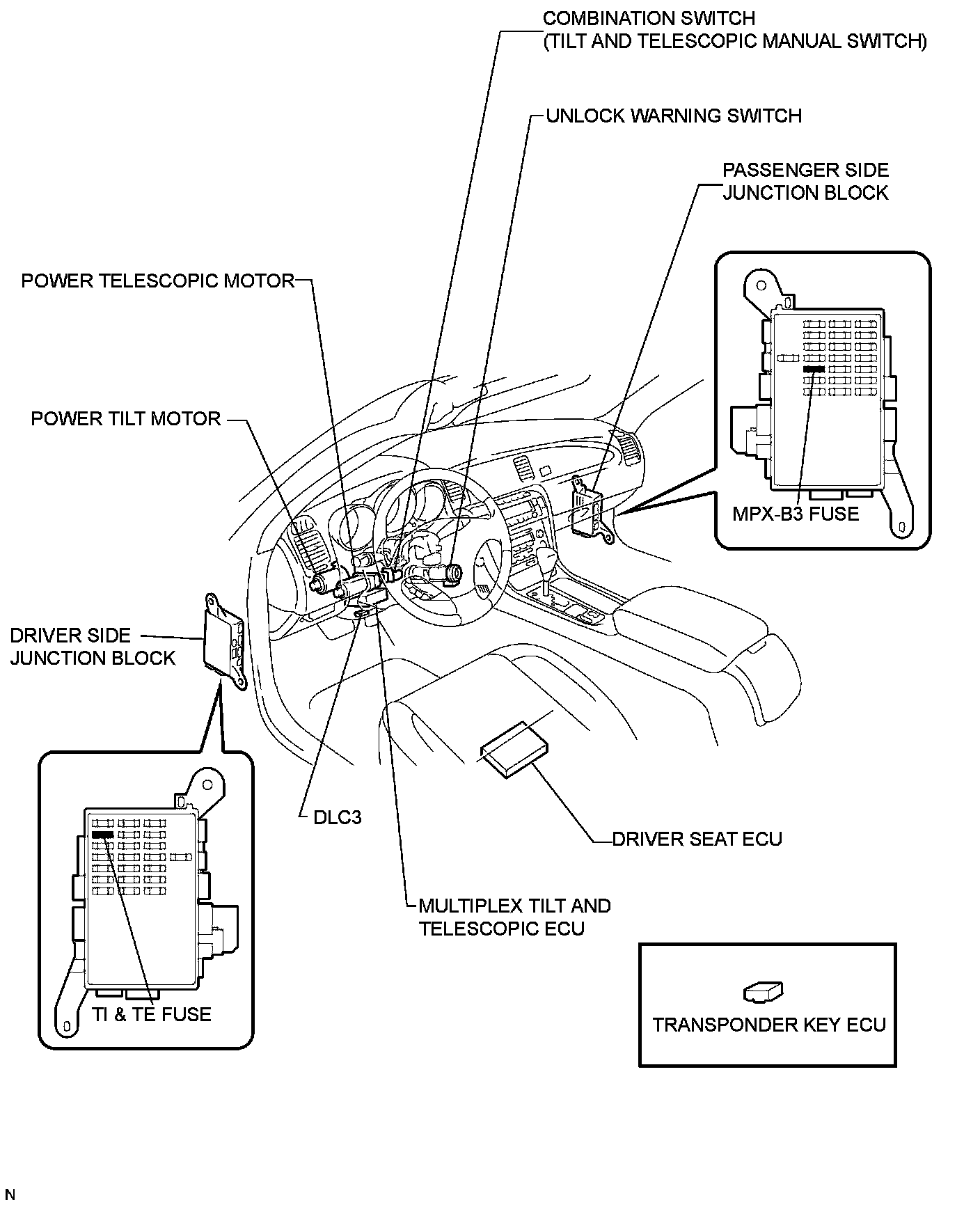

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
