STEERING COLUMN: MULTIPLEX TILT AND TELESCOPIC ECU: INSTALLATION

INSTALLATION

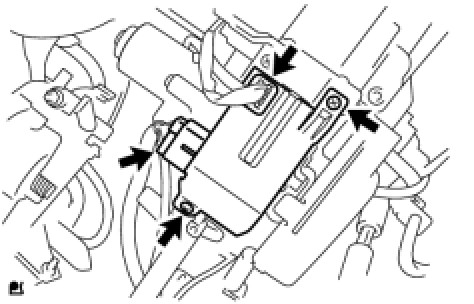

1. INSTALL MULTIPLEX TILT AND TELESCOPIC ECU
(a) Install the ECU with the 2 screws.
(b) Connect the 2 connectors.
2. INSTALL NO. 4 HEATER TO REGISTER DUCT
(a) Install the duct with the 3clips.

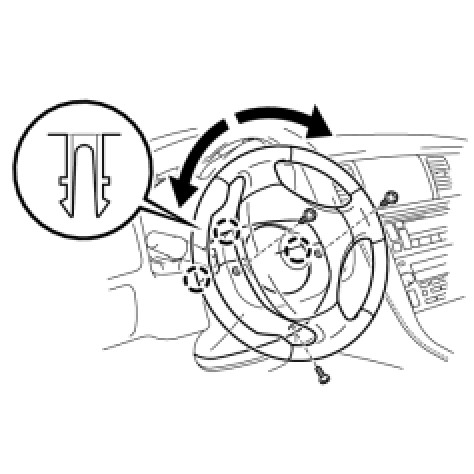

3. INSTALL STEERING COLUMN COVER LOWER
(a) Attach the 3 claws to the install the steering column cover lower.
(b) Turn the steering wheel to the left and right as necessary to install the 2 screws.
(c) Install the screw.
4. INSTALL NO. 1 INSTRUMENT PANEL AIR BAG ASSEMBLY LOWER Installation
5. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation
6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
7. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
