Door Control Transmitter: Components: Illustration

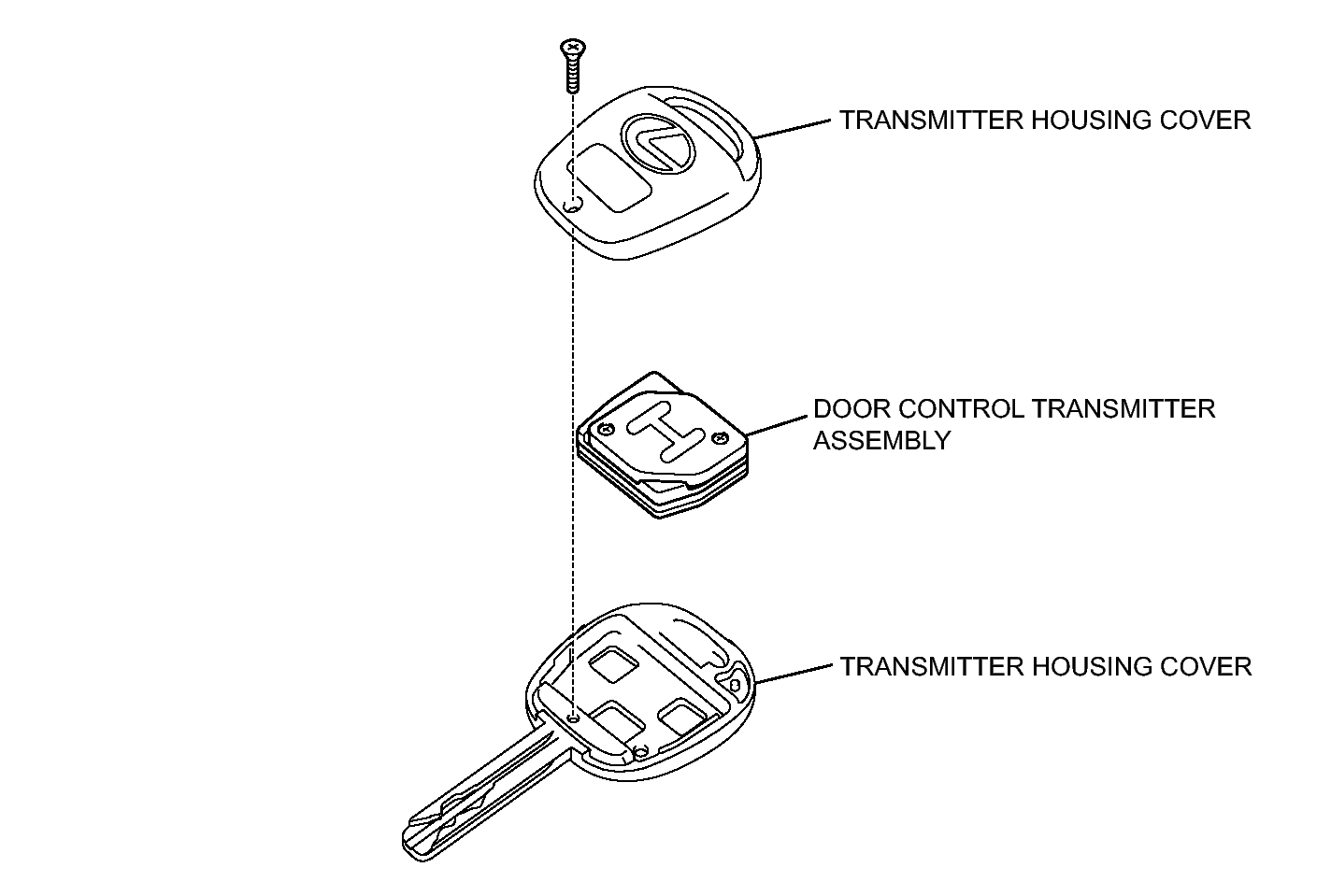

Fig 1: Identifying Door Control Transmitter Replacement Components
GTY129730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
