ECM Power Source Circuit: Procedure

  1. CHECK ECM (+B, +B1 VOLTAGE)

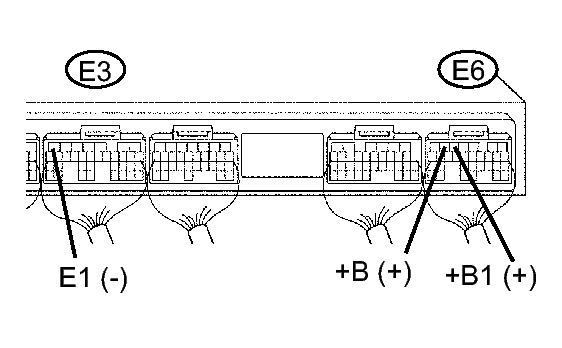

    Fig 1: Checking ECM (+B, +B1 Voltage)
    GTY144877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch ON.
    2. Measure the voltage of the ECM connectors.

      Standard voltage

      Tester Connection Specified Condition
      E6-6 (+B) - E3-7 (E1) 11 to 14 V
      E6-5 (+B1) - E3-7 (E1) 11 to 14 V

    OK → PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

    NG: Go to next step

  2. CHECK WIRE HARNESS (ECM - BODY GROUND)

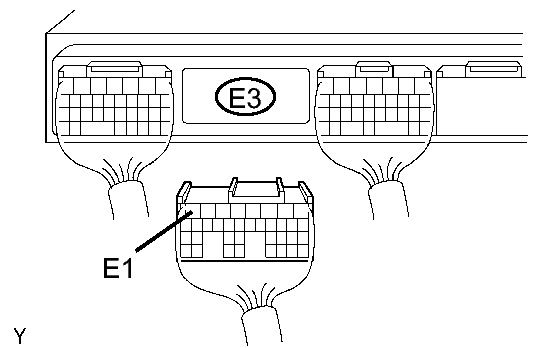

    Fig 2: Checking Wire Harness (ECM - Body Ground)
    GTY144830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E3 ECM connector.
    2. Measure the resistance of the wire harness side connector.

      Standard resistance

      Tester Connection Specified Condition
      E3-7 (E1) - Body ground Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go to next step

  3. CHECK ECM (IGSW VOLTAGE)

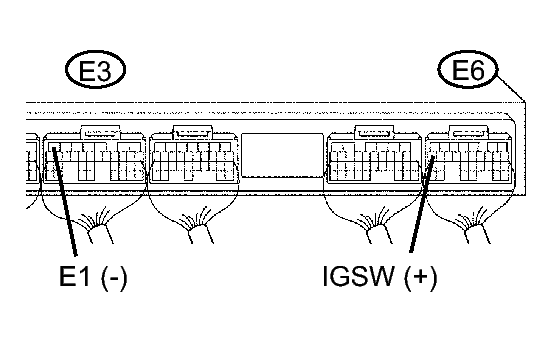

    Fig 3: Checking ECM (IGSW Voltage)
    GTY126169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch ON.
    2. Measure the voltage of the ECM connectors.

      Standard voltage

      Tester Connection Specified Condition
      E6-17 (IGSW) - E3-7 (E1) 11 to 14 V

    OK → See step   7

    NG: Go to next step

  4. INSPECT FUSE (IGN)
    Fig 4: Inspecting IGN Fuse
    GTY140273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the IGN fuse from the engine room No. 2 relay block.
    2. Measure the resistance of the IGN fuse.

      Standard resistance

      Below 1 Ω

    NG → CHECK FOR SHORT IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

    OK: Go to next step

  5. INSPECT RELAY (Marking: IG2)
    Fig 5: Inspecting Circuit Opening Relay
    GTY126004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the IG2 relay from the engine room No. 1 relay block.
    2. Measure the resistance of the IG2 relay.

      Standard resistance

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω
      (when battery voltage is applied to terminals 1 and 2)

    NG → REPLACE IG2 RELAY

    OK: Go to next step

  6. INSPECT IGNITION SWITCH

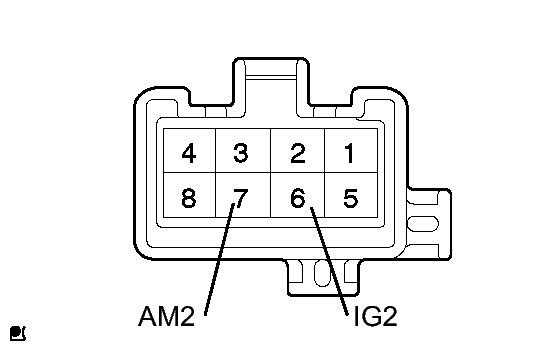

    Fig 6: Identifying Ignition Switch Connector Terminals
    GTY134898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the I18 ignition switch connector.
    2. Measure the resistance of the ignition switch.

      Standard resistance

      Tester Connection Switch Condition Specified Condition
      6 (IG2) - 7 (AM2) LOCK 10 kΩ or higher
      6 (IG2) - 7 (AM2) ON Below 1 Ω

    NG → REPAIR OR REPLACE IGNITION SWITCH

    OK: Go to next step

  7. CHECK ECM (MREL VOLTAGE)

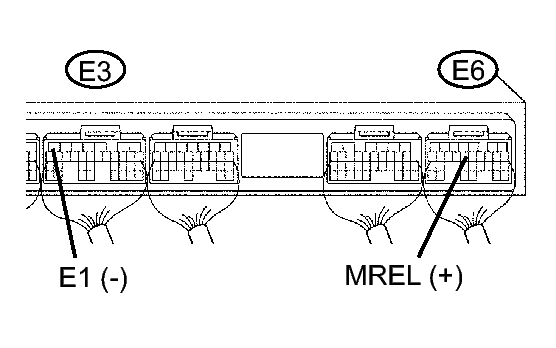

    Fig 7: Checking ECM (MREL Voltage)
    GTY144878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Turn the ignition switch ON.
    2. Measure the voltage of the ECM connectors.

      Standard voltage

      Tester Connection Specified Condition
      E6-13 (MREL) - E3-7 (E1) 11 to 14 V

    NG → REPLACE ECM

    OK: Go to next step

  8. INSPECT FUSE (EFI)

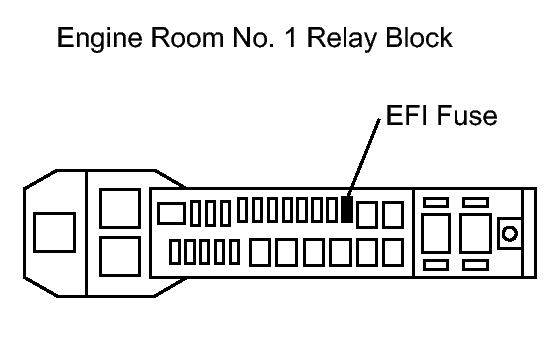

    Fig 8: Identifying EFI Fuse
    GTY129143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the EFI fuse from the engine room No. 1 relay block and junction block.
    2. Measure the resistance of the EFI fuse.

      Standard resistance

      Below 1 Ω

    NG → CHECK FOR SHORT IN ALL HARNESSES AND CONNECTORS CONNECTED TO FUSE AND REPLACE FUSE

    OK: Go to next step

  9. INSPECT EFI RELAY (Marking: EFI)
    Fig 9: Inspecting Circuit Opening Relay
    GTY126004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the EFI relay from the engine room No. 2 relay block.
    2. Measure the resistance of the EFI relay.

      Standard resistance

      Tester Connection Specified Condition
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω
      (when battery voltage is applied to terminals 1 and 2)

    NG → REPLACE EFI RELAY

    OK: Go to next step

  10. CHECK WIRE HARNESS (EFI RELAY (Marking: EFI) - ECM AND BODY GROUND)

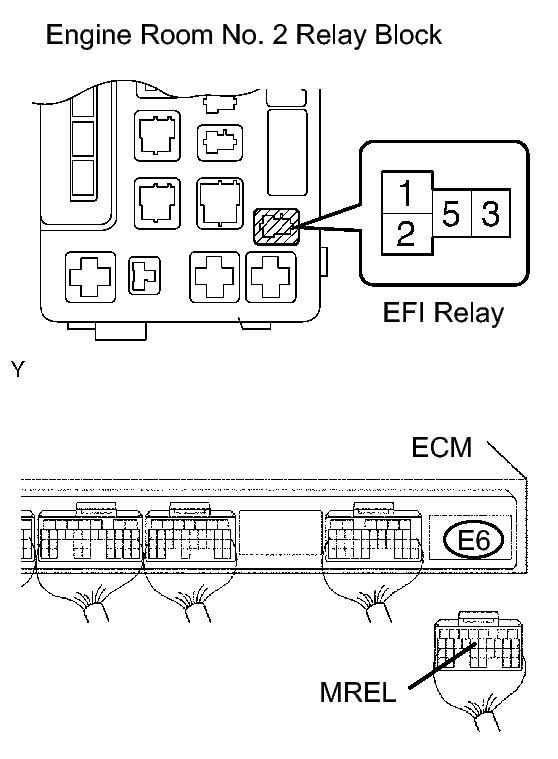

    Fig 10: Checking Wire Harness (EFI Relay (Marking: EFI) - ECM And Body Ground)
    GTY132635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the wire harness between the EFI relay and ECM.
      1. Remove the EFI relay from the engine room No. 2 relay block.
      2. Disconnect the E6 ECM connector.
      3. Measure the resistance of the wire harness side connectors.

        Standard resistance

        Tester Connection Specified Condition
        Relay block EFI relay terminal 2 - E6-13 (MREL) Below 1 Ω
        Relay block EFI relay terminal 2 or E6-13 (MREL) - Body ground 10 kΩ or higher
    2. Check the wire harness between the EFI relay and body ground.
      1. Remove the EFI relay from the engine room No. 2 relay block.
      2. Measure the resistance of the wire harness side connectors.

        Standard resistance

        Tester Connection Specified Condition
        Relay block EFI relay terminal 1 - Body ground Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK → REPAIR OR REPLACE HARNESS AND CONNECTOR (TERMINAL +B OF ECM - POSITIVE (+) BATTERY TERMINAL)
