Engine Control System (Diagnostic Codes (P0351-U0001) - Circuit Tests)
>>
SFI System
>>
ECM Power Source Circuit
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ECM Power Source Circuit: Wiring Diagram

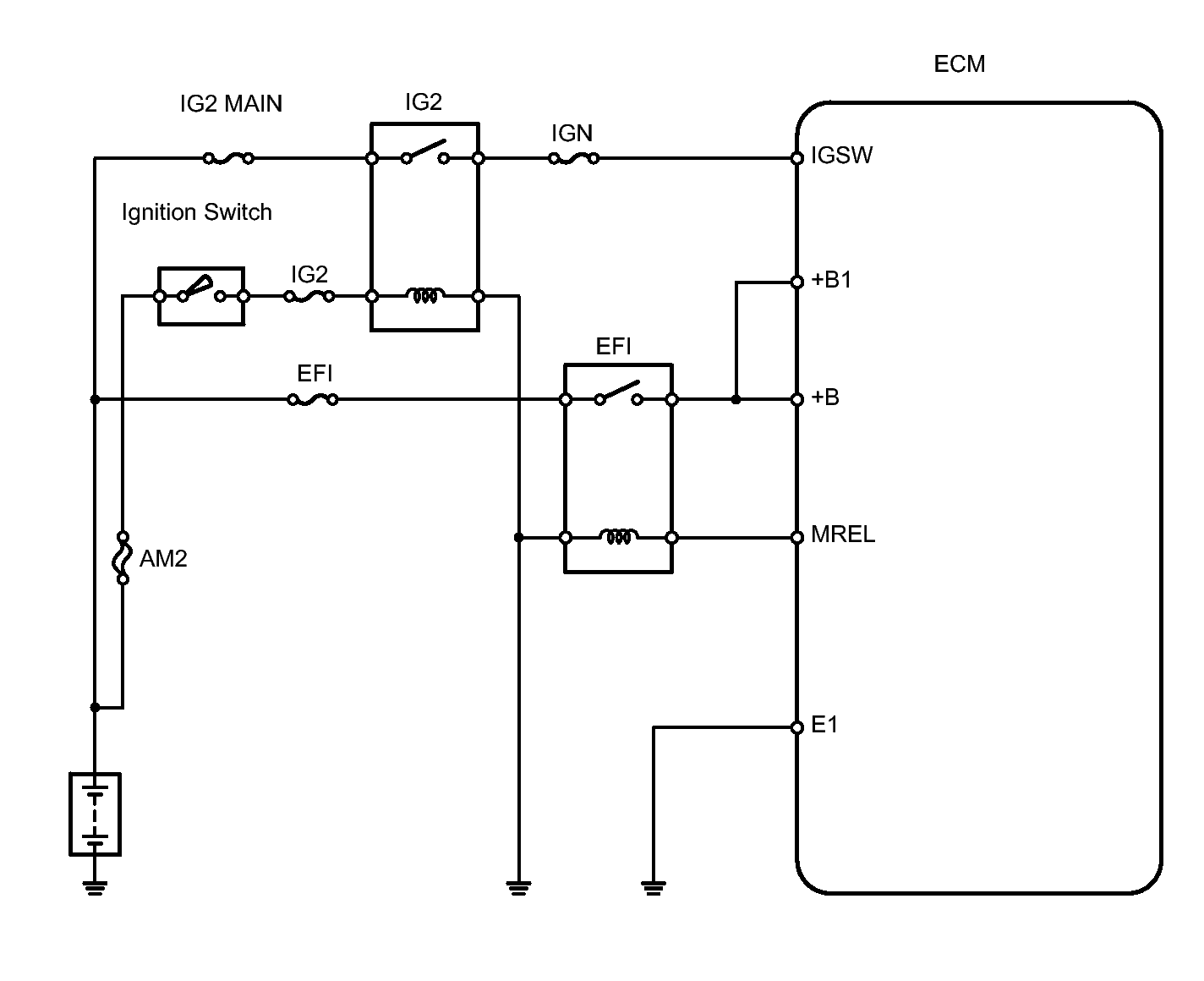

Fig 1: ECM Power Source Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
