Center Junction Block

WARNING: This page is about a different car, the 2008 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

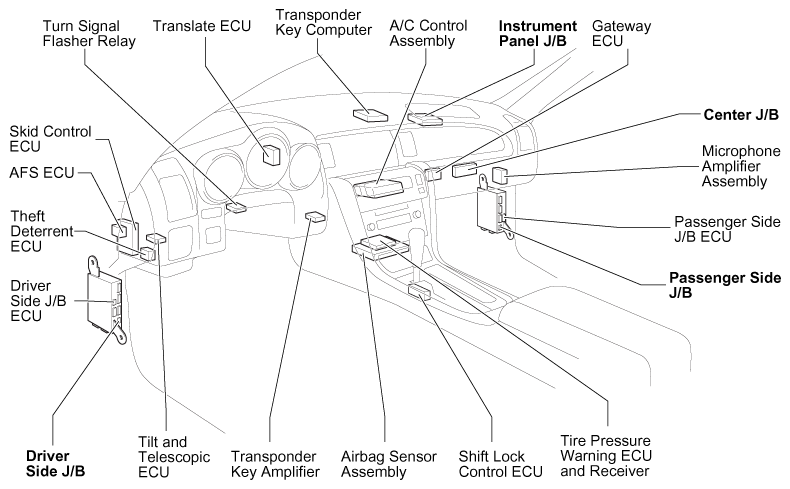

Upper Side of the Glove Box  (See Figure)

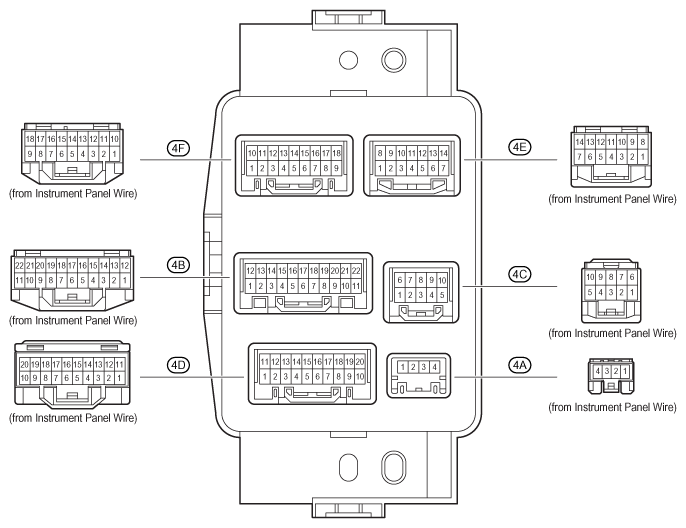

Fig 1: Center J/B Connector Locations
G07611896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
