Driver Side Junction Block Inner Circuit

WARNING: This page is about a different car, the 2008 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

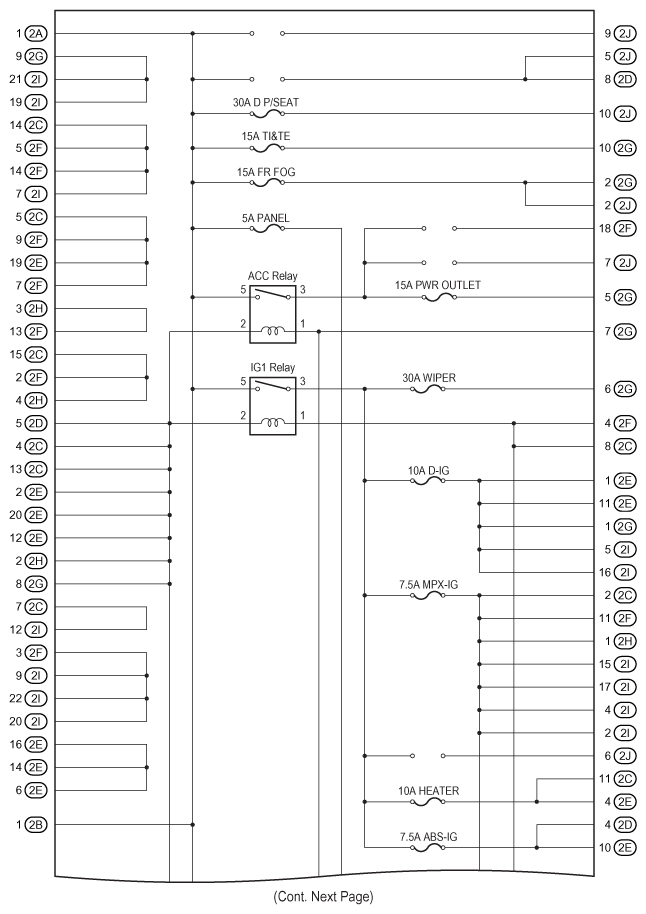

Fig 1: Driver Side J/B Inner Circuit Diagram (1 Of 2)
G07611888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

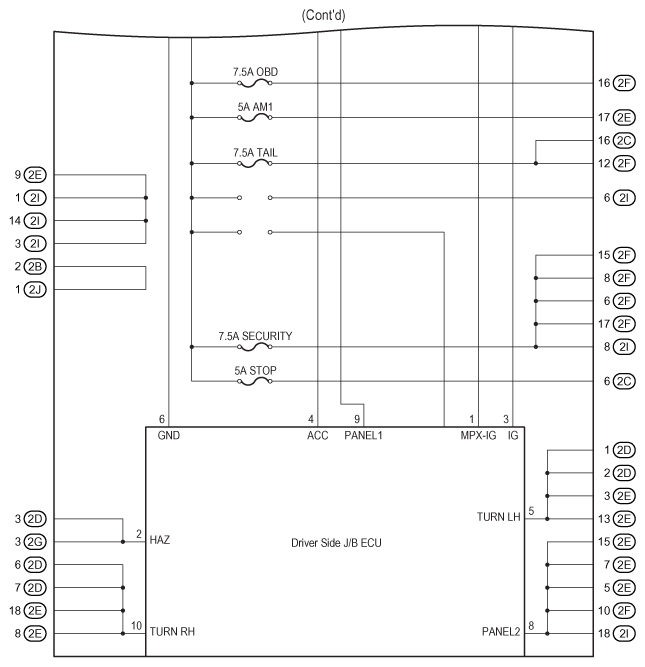

Fig 2: Driver Side J/B Inner Circuit Diagram (2 Of 2)
G07611889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
