Instrument Panel Junction Block

WARNING: This page is about a different car, the 2008 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

Near the Front Passenger Airbag Assembly  (See Figure)

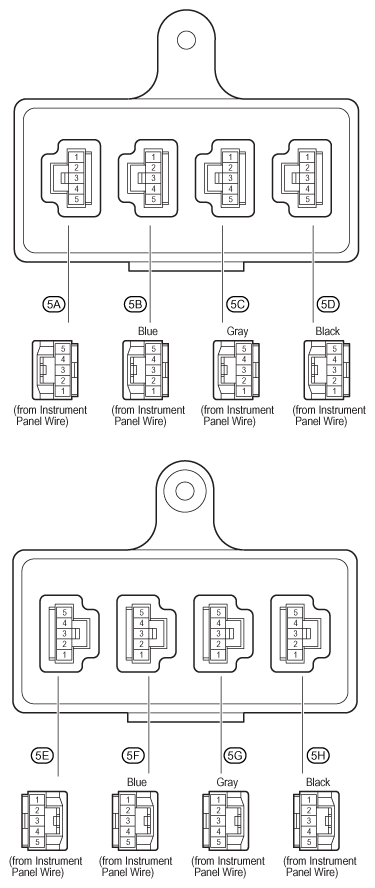

Fig 1: Instrument Panel J/B Connector Locations
G07611898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
