DTC B1790: Center Airbag Sensor Assembly Communication Circuit Malfunction: Wiring Diagram

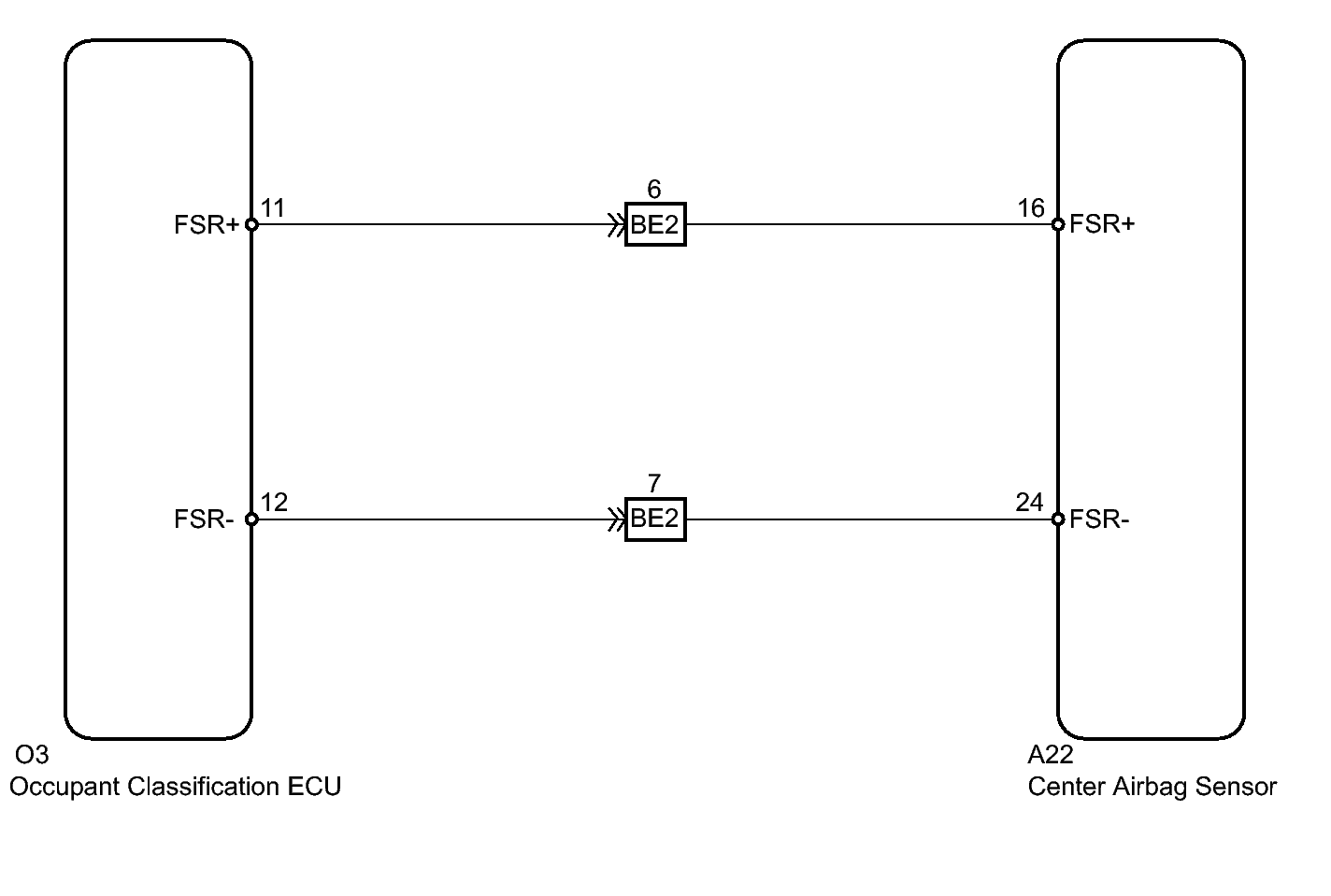

Fig 1: Center Airbag Sensor Wiring Diagram
GTY139197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Center Airbag Sensor Wiring Diagram
GTY139197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
