Fuse Block

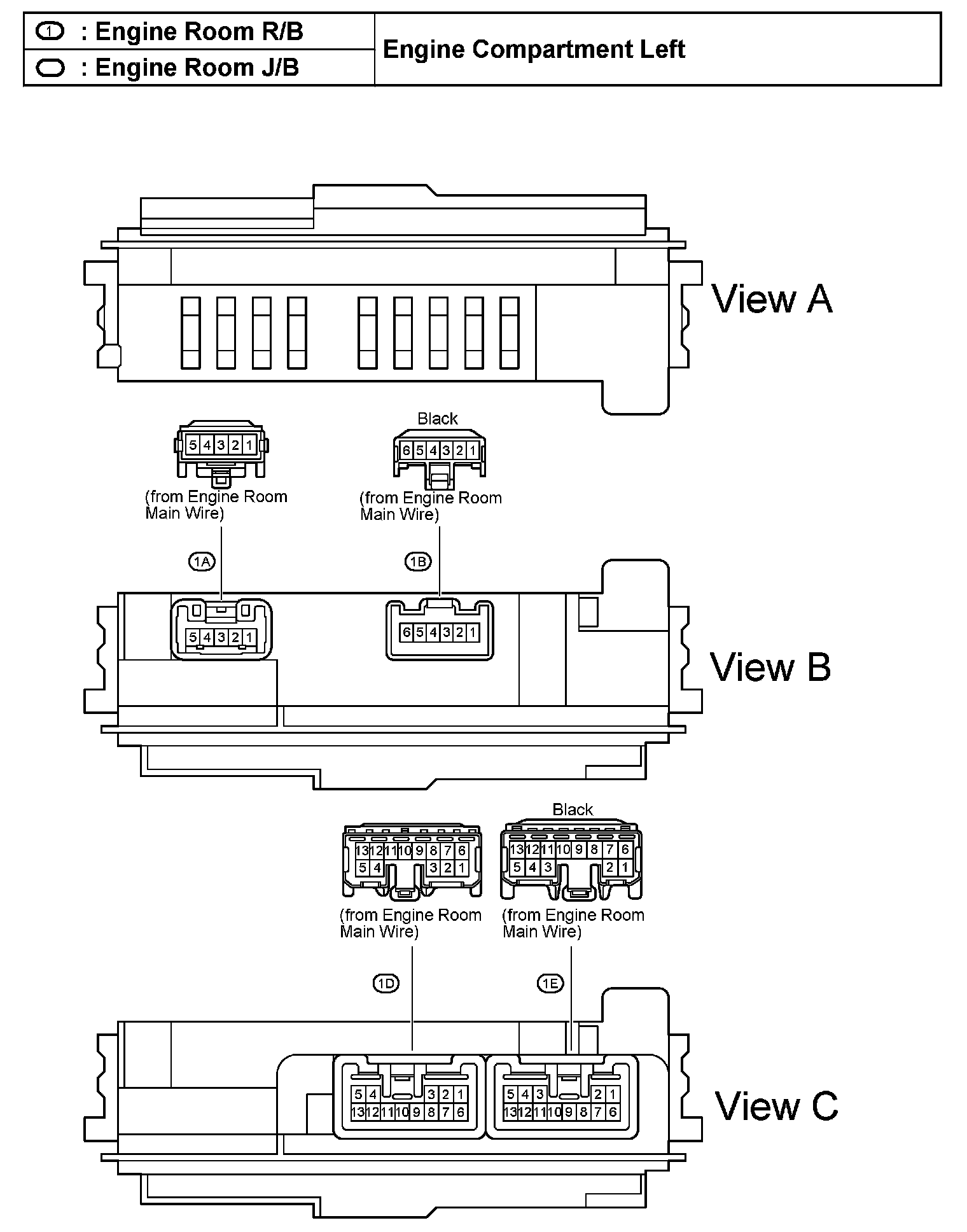

Engine Room R/B, J/B - Engine Compartment Left:






Engine Room R/B, J/B - Engine Compartment Left:






Engine Room R/B, J/B - Engine Compartment Left:






Instrument Panel J/B - Lower Finish Panel:






Instrument Panel J/B - Lower Finish Panel:

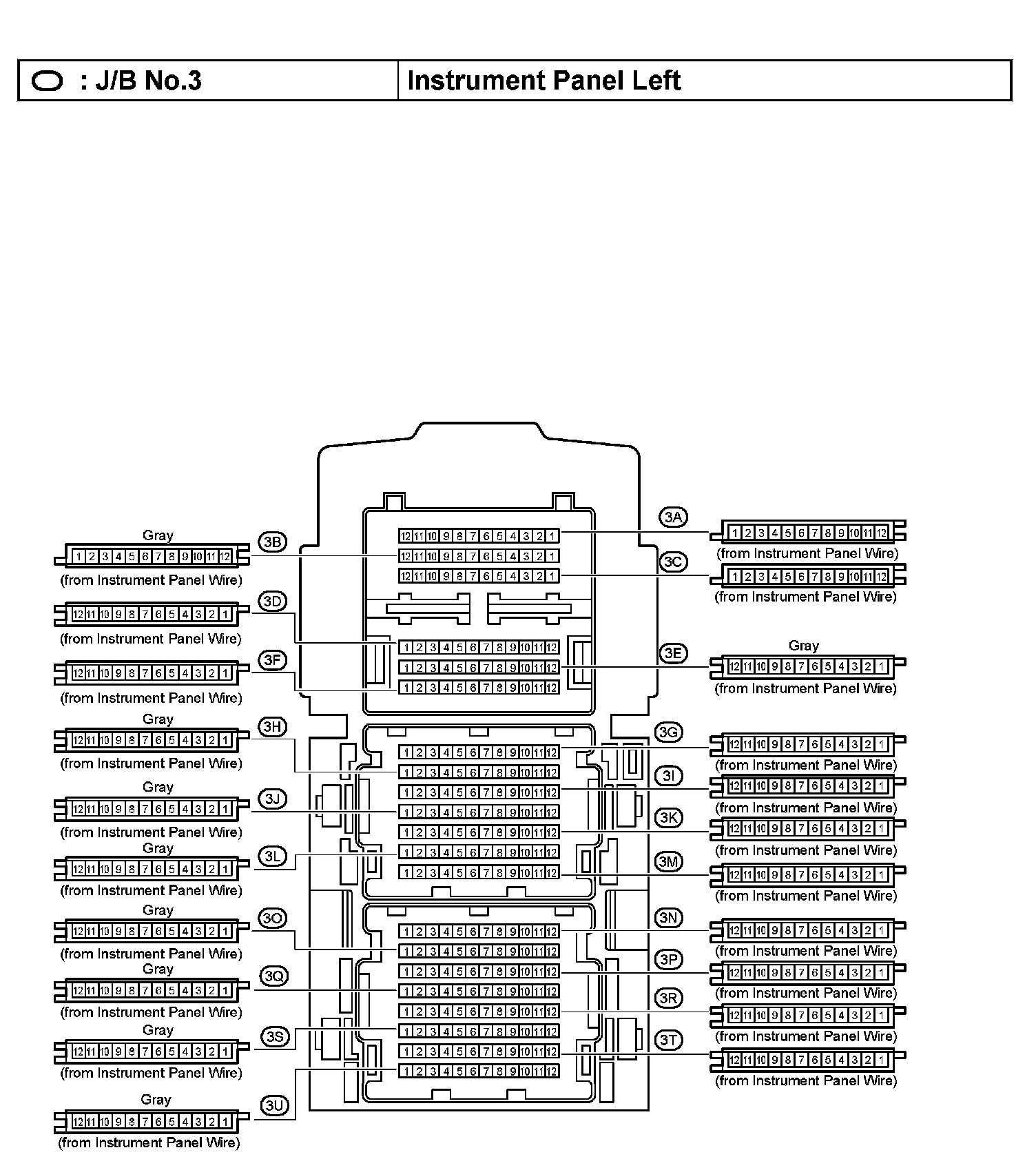

J/B No.3 - Instrument Panel Left:

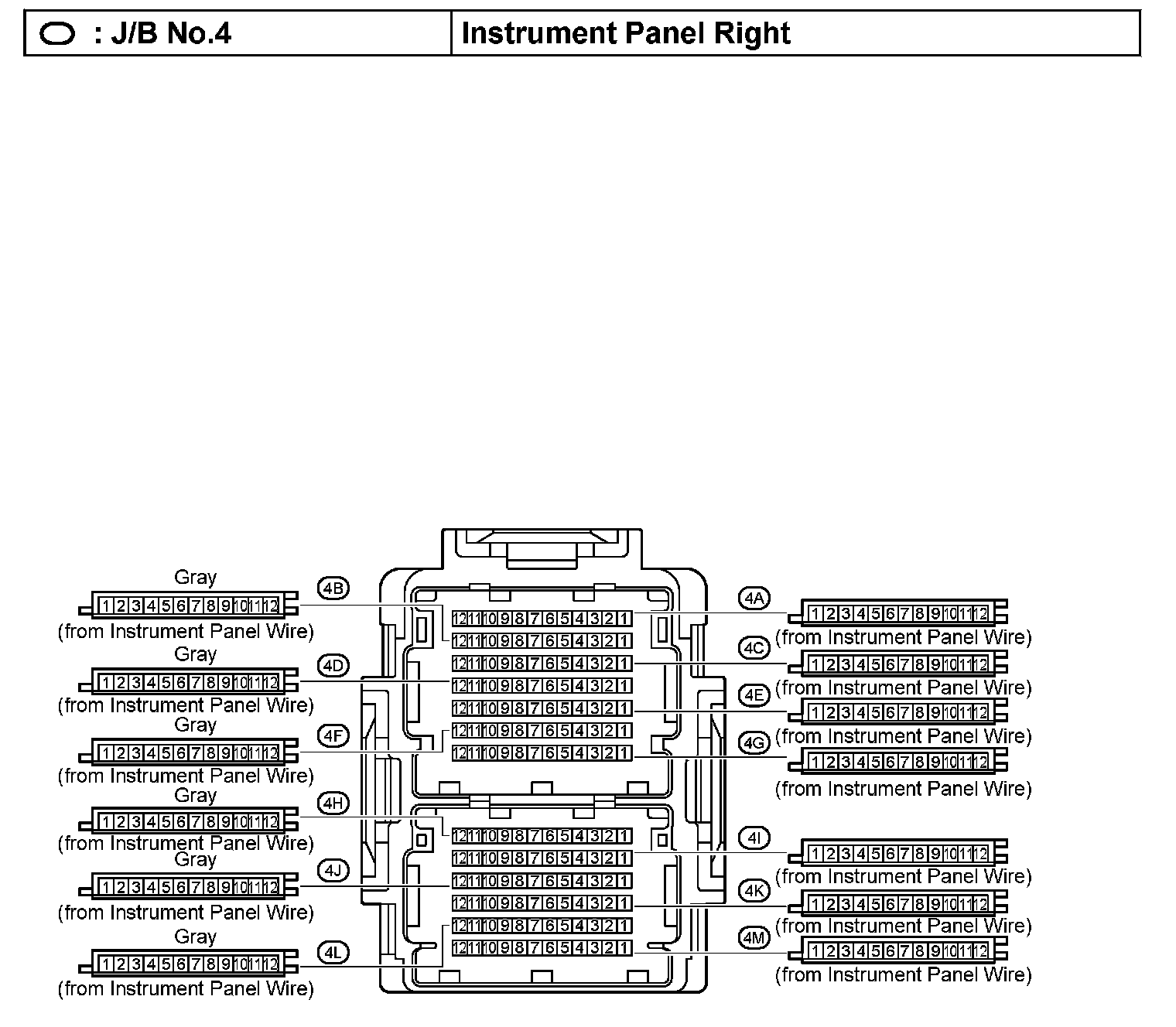

J/B No.4 - Instrument Panel Right:






Junction Connector (CAN No.1) - Instrument Panel Center:






Junction Connector (CAN No.2) - Instrument Panel Center:






Junction Connector (CAN No.3) - Near The Shift Lever:






Junction Connector (CAN No.4) - Quarter Wheel House RH:
