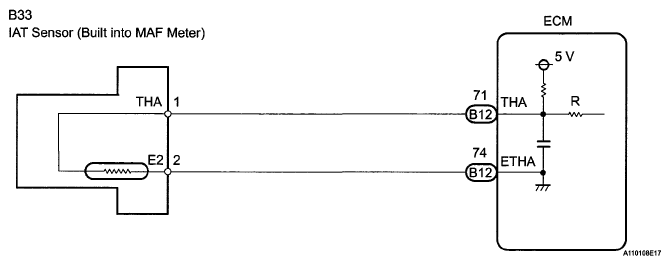

DTC P0110, P0112, P0113: Intake Air Temperature Circuit Malfunction; Intake Air Temperature Circuit Low Input; Intake Air Temperature Circuit High Input: Wiring Diagram
WARNING: This page is about a different car, the 2007 Lexus ES 350. However, it is still accessible from the selected car via links, so may be relevant.
