Injector Driver: Components: Illustration

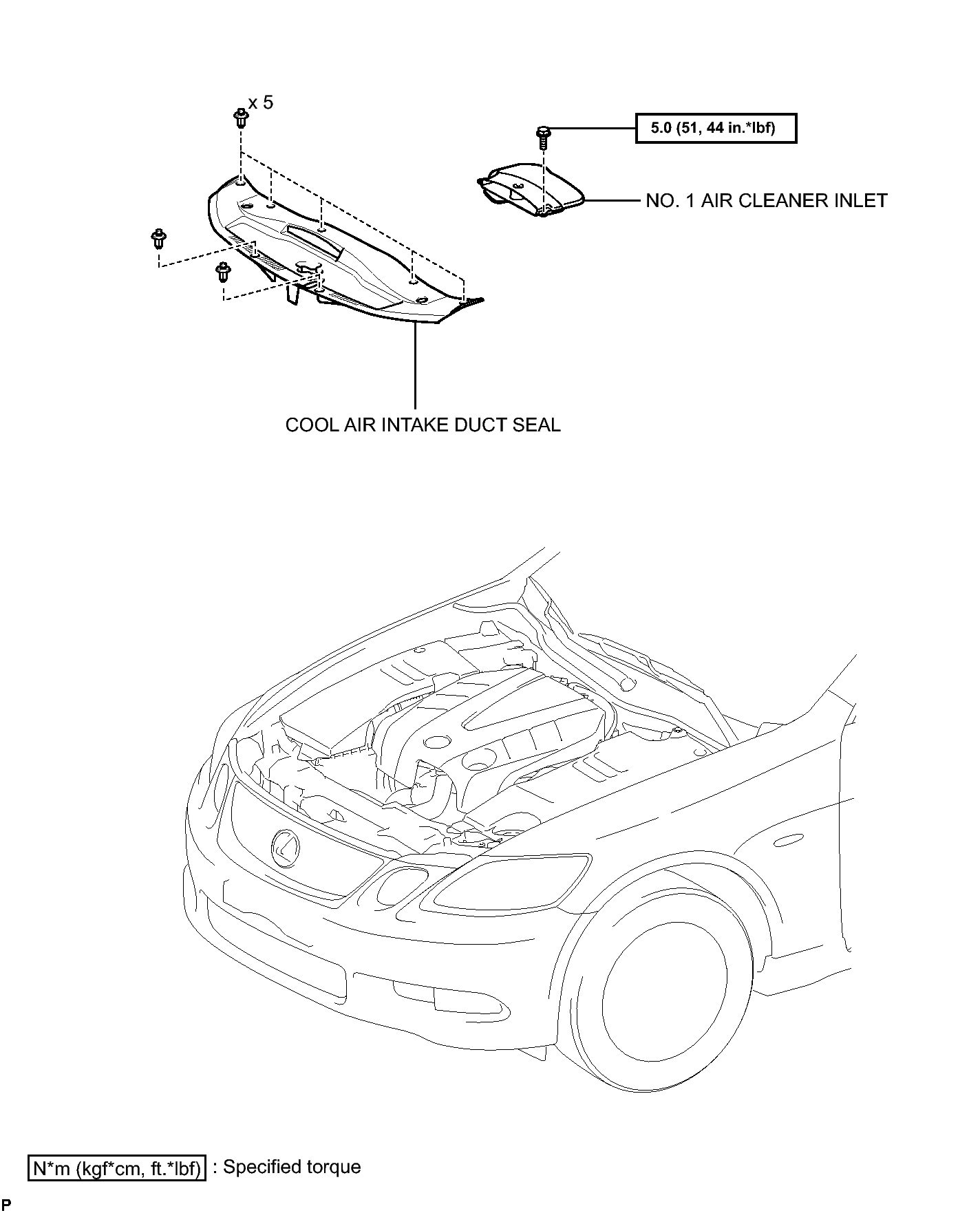

Fig 1: Identifying Injector Driver Replacement Components With Torque Specification (1 Of 2)
GTY105103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

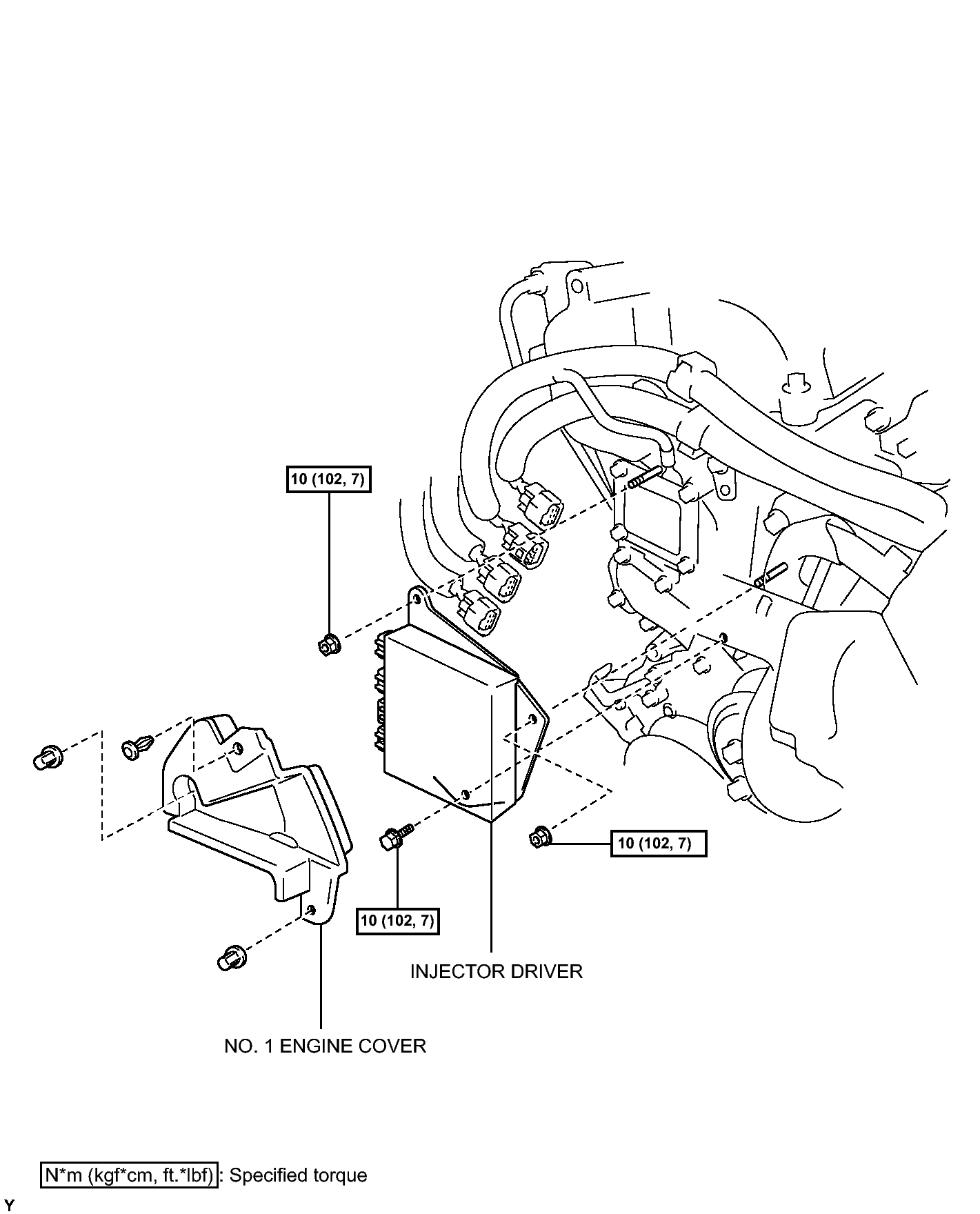

Fig 1: Identifying Injector Driver Replacement Components With Torque Specifications (2 Of 2)
GTY104625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
