System Diagram

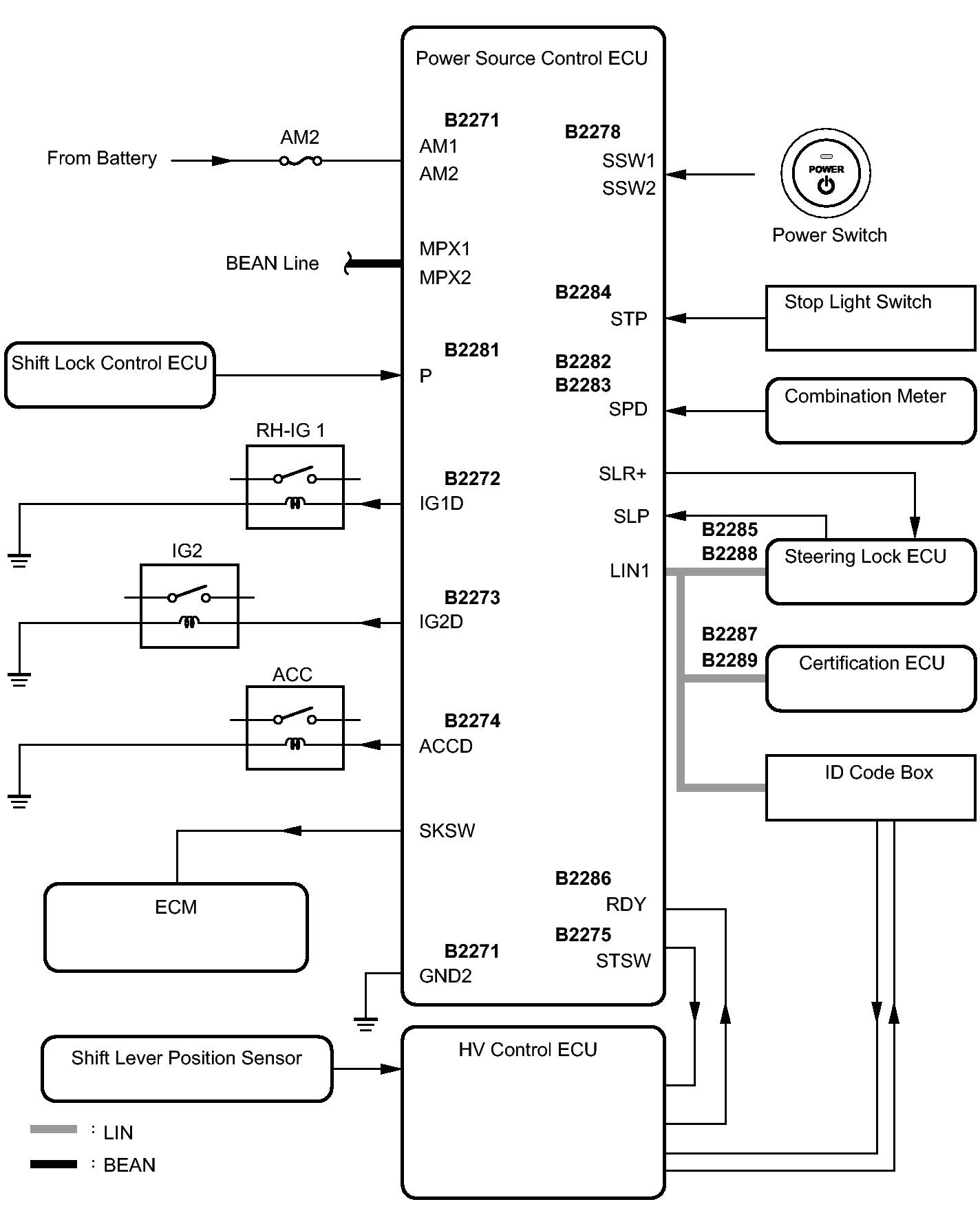

Fig 1: Power Switch - System Diagram
GTY147343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE:

Sender Receiver Signal Line
Meter ECU Power source control ECU Vehicle speed signal BEAN/Local communication
Steering lock ECU Power source control ECU Steering lock/unlock signal LIN/Local communication
Shift lock control ECU Power source control ECU Shift position signal BEAN/Local communication
Certification ECU Power source control ECU LIN master signal LIN
HV control ECU Power source control ECU READY signal BEAN/Local communication
READY NG signal BEAN
Shift P signal BEAN
