System Diagram

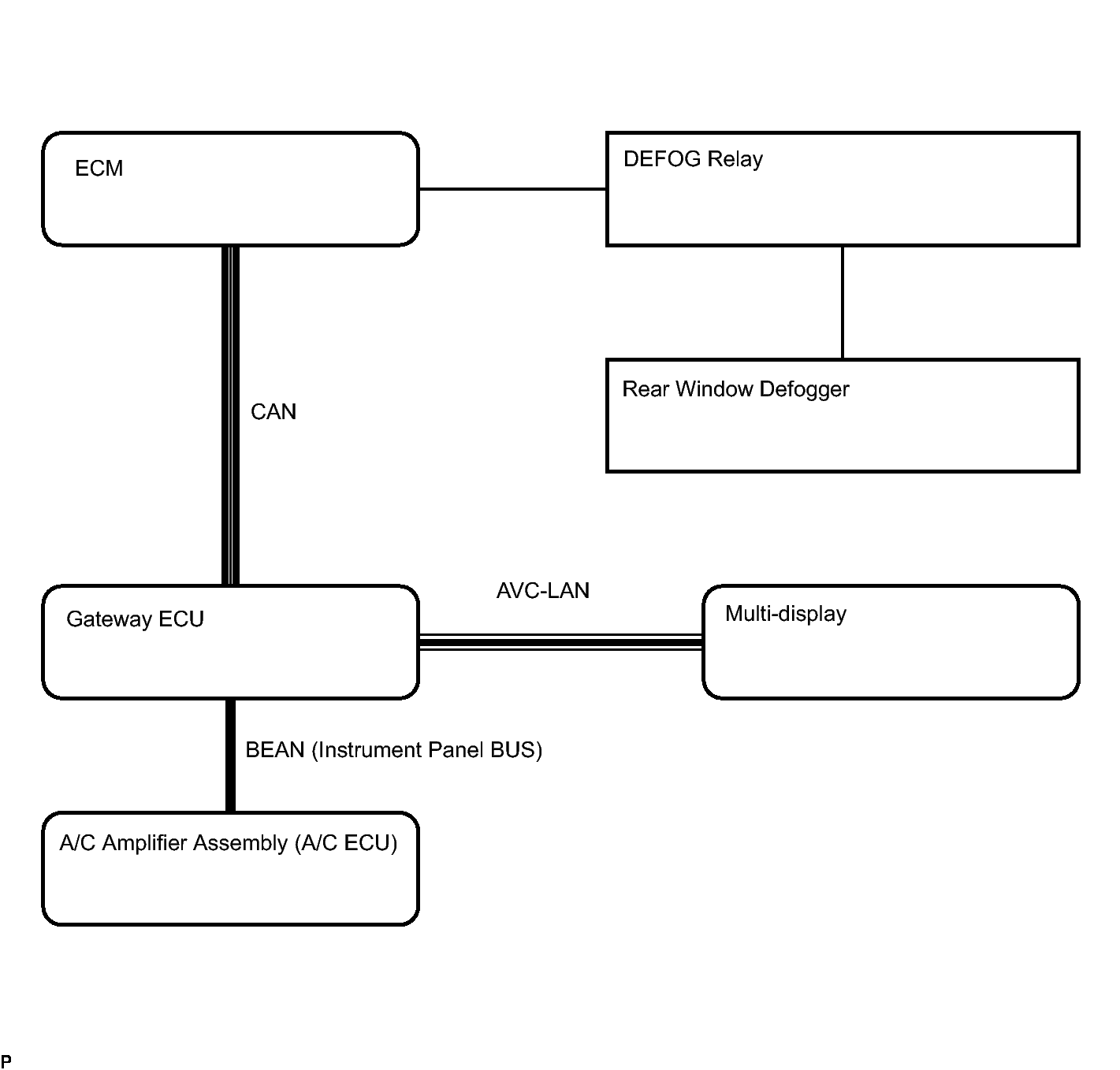

Fig 1: Identifying Window Defogger System Diagram
GTY103063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Multi-display A/C amplifier assembly (A/C ECU) Rear defogger switch signal BEAN / AVC-LAN
A/C amplifier assembly (A/C ECU) ECM Rear defogger switch signal BEAN / CAN
