ACIS Control Circuit: Wiring Diagram

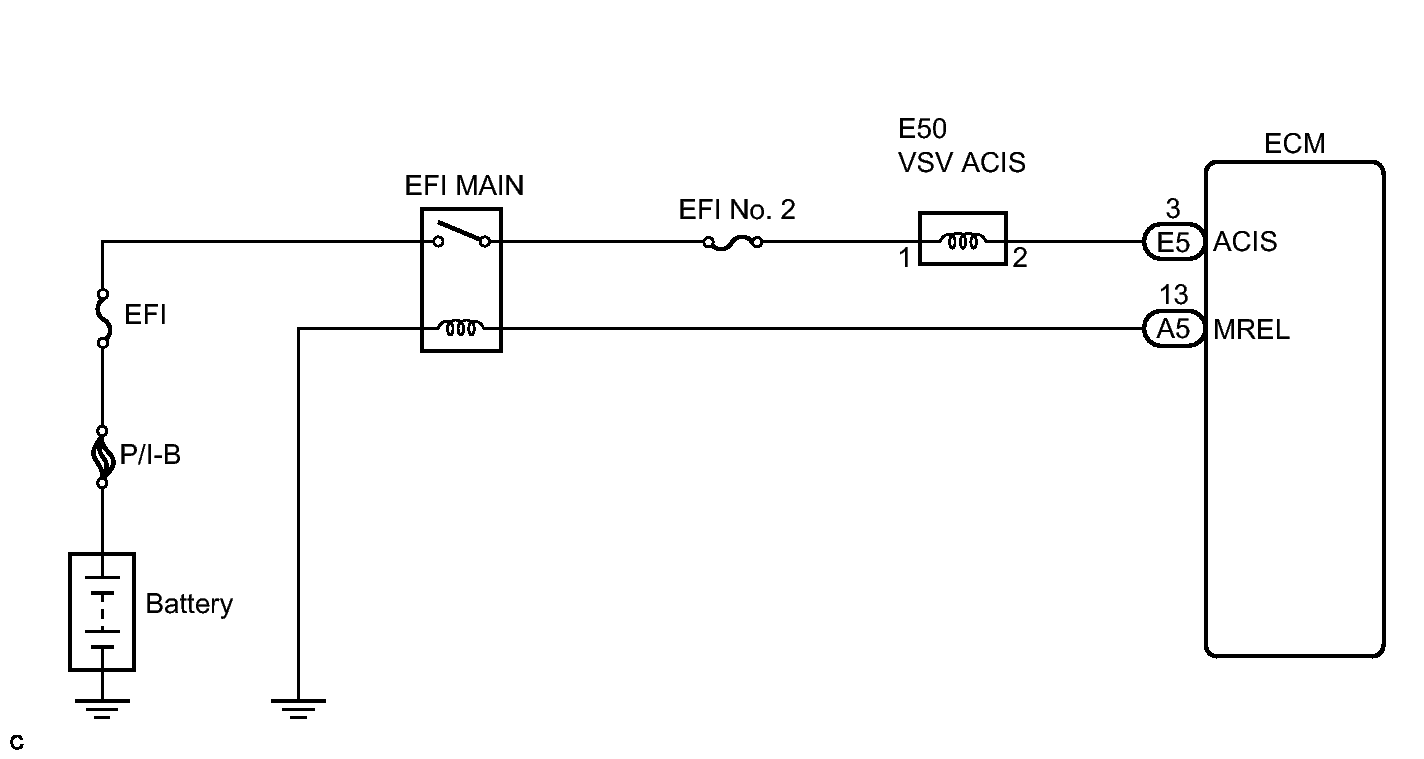

Fig 1: View Of ACIS Control Circuit Wiring Diagram
GTY275781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
