Reverse Shift-linked Function of Power Mirrors does not Operate: Procedure

  1. CHECK MULTIPLEX COMMUNICATION SYSTEM
    1. Use the Techstream to check if the multiplex communication system is functioning normally. Refer to HOW TO PROCEED WITH TROUBLESHOOTING .

      OK

      Multiplex communication DTC is not output.

    NG → See step   10

    OK: Go to next step

  2. CHECK REVERSE SHIFT-LINKED FUNCTION
    1. Turn the engine switch on (IG).
    2. Set the mirror select switch to L or R.
    3. Check that the mirror surface turns downward when the shift lever is moved to R.

      Result

      Result Proceed to
      Reverse shift-linked function on both mirrors is not normal (for AT) A
      Reverse shift-linked function on both mirrors is not normal (for MT) B
      Reverse shift-linked function on either mirror is not normal C

    C → See step   9

    B → See step   6

    A: Go to next step

  3. CHECK CAN COMMUNICATION SYSTEM
    1. Use the Techstream to check if the CAN communication system is functioning normally. Refer to HOW TO PROCEED WITH TROUBLESHOOTING .

      OK

      CAN communication DTC is not output.

    NG → See step   11

    OK: Go to next step

  4. CHECK FOR DTC (P0705)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine / DTC.
    5. Check if DTC P0705 is output.

      Result

      Result Proceed to
      DTC P0705 is not output A
      DTC P0705 is output (for A760E) B
      DTC P0705 is output (for A960E) C

    C → See step   13

    B → See step   12

    A: Go to next step

  5. READ VALUE USING TECHSTREAM
    1. Enter the following menus: Chassis / ABS/VSC / Data List.
    2. Read the Data List according to the display on the Techstream.
      ABS/VSC/TRAC

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Shift Lever Position Shift lever position information / P/N, R, D/M, 1st-6th/B, FAIL Actual shift lever position -

      Result

      Result Proceed to
      R is displayed on the Techstream when the shift lever is in R A
      R is not displayed on the Techstream when the shift lever is in R (for 2GR-FSE) B
      R is not displayed on the Techstream when the shift lever is in R (for 4GR-FSE) C

    C → See step   15

    B → See step   14

    A → See step   16

  6. CHECK BACK UP LIGHT FUNCTION
    1. Move the shift lever to R and check if the back up lights come on.

      OK

      The back up lights come on.

    NG → See step   17

    OK: Go to next step

  7. READ VALUE USING TECHSTREAM
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Body No. 3 / Data List.
    5. Read the Data List according to the display on the Techstream.
      BODY NO. 3

      Tester Display Measurement Item/Range Normal Condition Diagnostic Note
      Bkup Light SW Back up light switch / ON or OFF ON: Back up light switch on
      OFF: Back up light switch off
      -

    NG → See step   8

    OK → REPLACE MAIN BODY ECU LH (COWL SIDE JUNCTION BLOCK LH)

  8. CHECK HARNESS AND CONNECTOR
    1. Disconnect the E55 and LJ connectors.

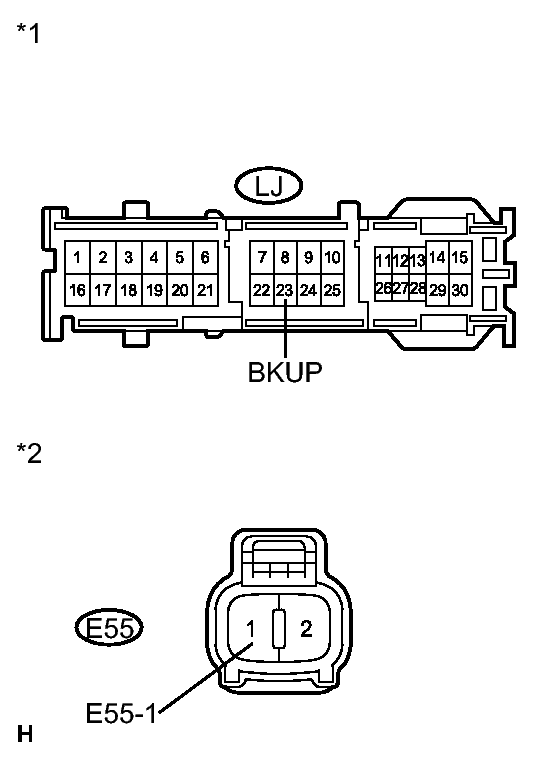

      Fig 1: Identifying E55 And LJ Connector Terminals
      GTY256354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Front view of wire harness connector
      (to Body ECU (Cowl Side Junction Block LH))
      *2 Front view of wire harness connector
      (to Back Up Light Switch)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E55-1 - LJ-23 (BKUP) Always Below 1 Ω
      E55-1 - Body ground Always Below 1 Ω

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK → REPLACE MAIN BODY ECU LH (COWL SIDE JUNCTION BLOCK LH)

  9. CHECK MEMORY AND REACTIVATION FUNCTION
    1. Turn the engine switch on (IG).
      Fig 2: Turning Mirror Surface To Full Left Position
      GTY123536Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Turn to Left Fully
    2. Using the outer mirror switch assembly, turn the mirror surface to the fully left position.
    3. Press the M1 switch while the SET switch is being pressed.
    4. Check that the buzzer sounds for 0.5 seconds and the mirror surface position is memorized.
    5. Using the outer mirror switch assembly, turn the mirror surface to the fully right position.
    6. Press the M1 switch.
    7. Check that the buzzer sounds for 0.1 seconds and the outer mirror automatically moves to the recorded fully left position.

      OK

      Memory and reactivation function is normal.

    NG → See step   18

    OK → See step   19

  10. GO TO MULTIPLEX COMMUNICATION SYSTEM. Refer to  DIAGNOSTIC TROUBLE CODE CHART
  11. GO TO CAN COMMUNICATION SYSTEM. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING
  12. GO TO AUTOMATIC TRANSMISSION SYSTEM (for A760E). Refer to  DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input)
  13. GO TO AUTOMATIC TRANSMISSION SYSTEM (for A960E). Refer to  DTC P0705: Transmission Range Sensor Circuit Malfunction (PRNDL Input)
  14. REPLACE ECM (for 2GR-FSE). Refer to  REMOVAL
  15. REPLACE ECM (for 4GR-FSE). Refer to  REMOVAL
  16. REPLACE NETWORK GATEWAY ECU. Refer to  REMOVAL
  17. GO TO LIGHTING SYSTEM. Refer to  PROBLEM SYMPTOMS TABLE
  18. GO TO OTHER FLOW CHART (Power Mirrors do not Return to Memorized Position). Refer to  Power Mirrors do not Return to Memorized Position
  19. REPLACE OUTER MIRROR CONTROL ECU ASSEMBLY. Refer to  REMOVAL
