Parts Location: Illustration

WARNING: This page is about a different car, the 2009 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

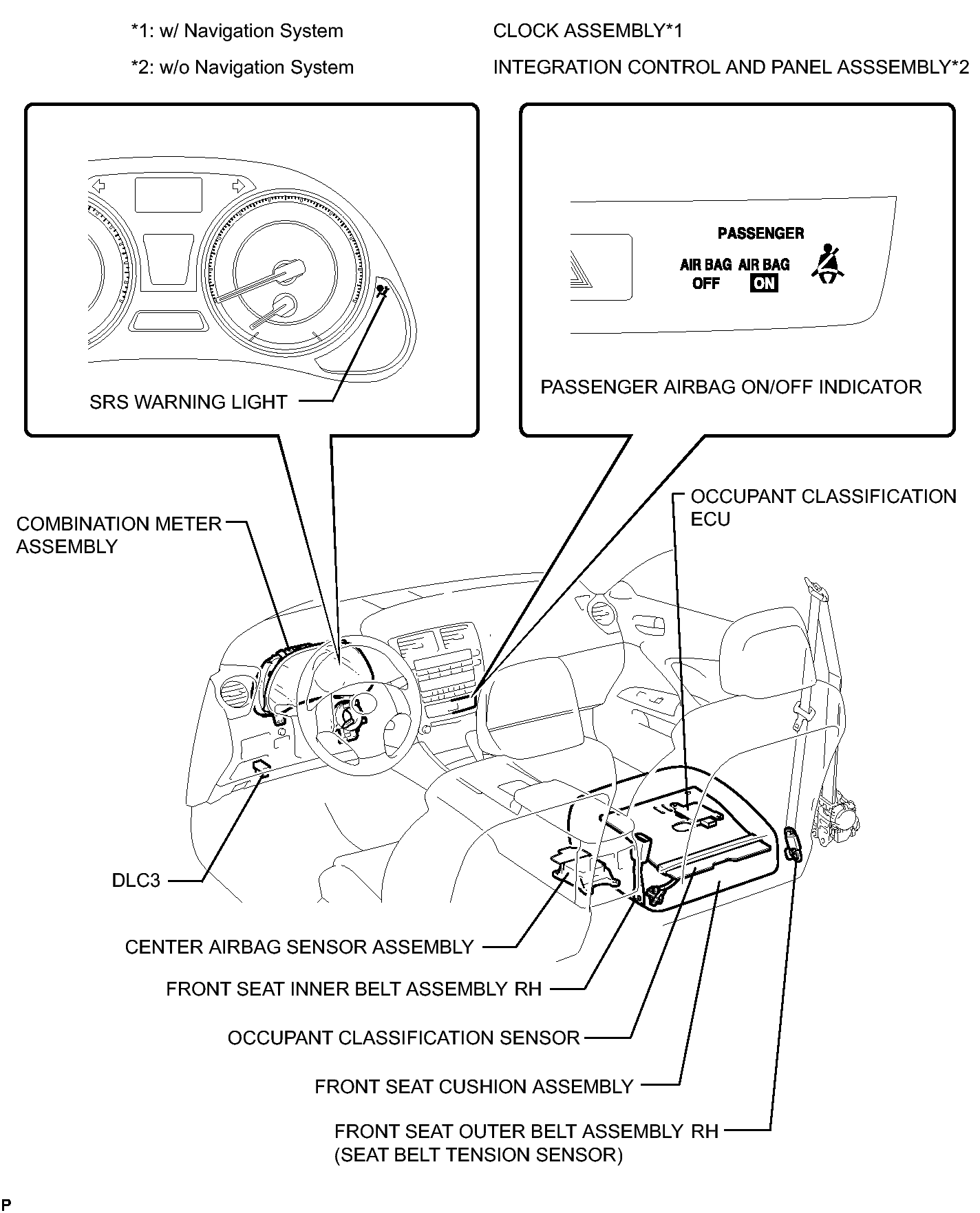

Fig 1: Identifying Supplemental Restraint Systems Parts Location
GTY149147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
