Occupant Detection Sensor: Installation: Installation

  1. INSTALL OCCUPANT DETECTION SENSOR
    1. Using hog ring pliers, install 14 new hog rings.

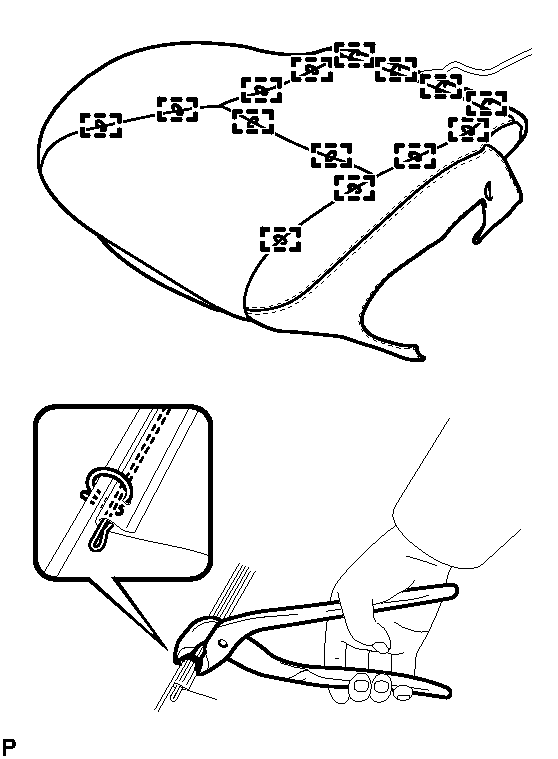

      Fig 1: Locating Hog Rings
      GTY257727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Be careful not to damage the cover.
      • When installing the hog rings, avoid wrinkling the cover.
  2. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

    HINT:

    Use the same procedure described for the LH side. Refer to REASSEMBLY - Step 31 .

  3. INSTALL POSITION CONTROL ECU AND SWITCH ASSEMBLY (w/ Memory)

    HINT:

    Use the same procedure described for the LH side. Refer to REASSEMBLY - Step 33 .

  4. REMOVE FRONT POWER SEAT SWITCH (w/o Memory)

    HINT:

    Use the same procedure described for the LH side. Refer to REASSEMBLY - Step 32 .

  5. INSTALL FRONT SEAT CUSHION INNER SHIELD RH

    HINT:

    Use the same procedure described for the LH side. Refer to REASSEMBLY - Step 34 .

  6. INSTALL FRONT SEAT CUSHION SHIELD ASSEMBLY

    HINT:

    Use the same procedure described for the LH side. Refer to REASSEMBLY - Step 37 .

  7. INSTALL RECLINING ADJUSTER RELEASE HANDLE RH

    HINT:

    Use the same procedure described for the LH side. Refer to REASSEMBLY - Step 38 .

  8. INSTALL RECLINING POWER SEAT SWITCH KNOB

    HINT:

    Use the same procedure described for the LH side. Refer to REASSEMBLY - Step 39 .

  9. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

    HINT:

    Use the same procedure described for the LH side. Refer to REASSEMBLY - Step 40 .

  10. INSTALL FRONT SEAT INNER BELT ASSEMBLY RH

    HINT:

    Use the same procedure described for the LH side See step  1.

  11. INSTALL FRONT SEAT ASSEMBLY

    HINT:

    Use the same procedure described for the LH side. Refer to INSTALLATION - Step 1 .

  12. INSTALL REAR INNER SEAT TRACK BRACKET COVER RH

    HINT:

    Use the same procedure described for the LH side. Refer to INSTALLATION - Step 2 .

  13. INSTALL REAR OUTER SEAT TRACK BRACKET COVER RH

    HINT:

    Use the same procedure described for the LH side. Refer to INSTALLATION - Step 3 .

  14. INSTALL FRONT INNER SEAT TRACK BRACKET COVER RH

    HINT:

    Use the same procedure described for the LH side. Refer to INSTALLATION - Step 4 .

  15. INSTALL FRONT OUTER SEAT TRACK BRACKET COVER RH

    HINT:

    Use the same procedure described for the LH side. Refer to INSTALLATION - Step 5 .

  16. INSTALL FRONT SEAT HEADREST ASSEMBLY
  17. PERFORM REGISTRATION  . Refer to INSTALLATION - Step 7
  18. ZERO POINT CALIBRATION AND SENSITIVITY CHECK  . Refer to INSTALLATION - Step 8
  19. INSPECT FRONT SEAT ASSEMBLY  . Refer to INSTALLATION - Step 9
  20. INSPECT SRS WARNING LIGHT  . Refer to INSTALLATION - Step 10
